Widely used corn starch syrup processing plant

We all know the raw materials for making syrup is starch, so any crops containing starch can be used to produce syrup.

Technical Feature

  • Henan, China (Mainland)
  • DOING
  • DY011
  • Grain Processing Equipment
  • Engineers available to service machinery overseas
  • corn starch syrup processing plant
Send Project Inquiry Add Inquiry List

0 Add Favorite

DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

Place of Origin
Henan, China (Mainland)
Brand Name
DOING
Model Number
DY011
Type
Grain Processing Equipment
After-sales Service Provided
Engineers available to service machinery overseas
Name
corn starch syrup processing plant
Application
Grains
Capacity
Diffrent Capacity meet your requests
Raw material
Raw grain like corn,rice,or starch,cassava starch
Material
Stainless Steel
Voltage
380v/50hz
Maltose manufacturing machine Power
7.5kw
Function
Liquid syrup production
Color
Silver
Feature
High Efficiency,one set equipment can produce three syrups

DETAIL DESCRIPTION

Product Description

Corn starch syrup processing plant introduction

We all know the raw materials for making syrup is starch, so any crops containing starch can be used to produce syrup. Such as corn, rice, cassava, potato, etc. Corn and corn starch has been a main raw material to process starch syrup include glucose syrup, maltose syrup and high fructose syrup. Doing company focus on developing new technology of corn starch syrup processing plant, we introduce the advanced technology that using raw grains rice, broken rice to process starch syrup directly. That is our corn starch syrup processing plant.

Corn starch syrup processing plant technical process:

1. Mixing and liquefaction process: Starch mixing with water, the PH value adjust to 5.0-6.0, then add high temperature liquifying enzyme, into the jet cooker by the pulverized pump, the temperature after jet process is controlled at 100--110℃, and keep temperature about 60 minutes. Then make second inject process to make the liquid temperature reache to 120-125℃, after 5min, the flash evaporation reduces the temperature to about 96℃ and keeps the temperature for 2 hours. Remove the cooked protein and remove fat.

2. Saccharification process: Make saccharification process with saccharification enzyme when the liquid temperature is 58-60℃, cost 24-48 hours, when the DE value reached the required can be transferred to next production process.

Corn starch syrup processing plant main features:

1. Dry method directly used raw grains rice, corn to make pure and bright maltose syrup.
2. No polluted water, environmental protection.
3. One set corn starch syrup processing plant can product three syrup: glucose syrup, maltose syrup and fructose syrup.
4. We have different size corn starch syrup processing plant, can meet all kinds of capacity requests. 3-5ton, 10-20ton, 30-50ton, 50-100ton per day, they all complete production line. Doing also can make solutions and turn-key project for you.

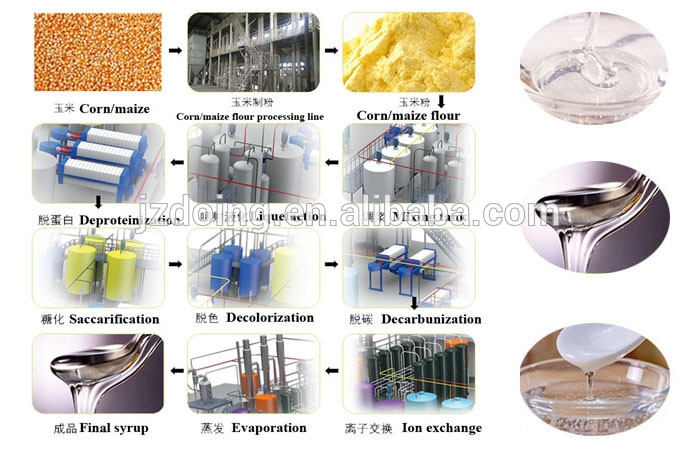

The technology process of our corn starch syrup processing plant as below:

Extracting syrup from corn or rice, enzymatic hydrolysis, chemical synthesis, separation and purification.
We can supply different sizes of corn starch syrup processing plant meet your capacity requests.

We are initiative of using raw grains rice broken rice to produce glucose, fructose, maltose syrup directly and deeper conversion of starch syrup and sorbitol technology. We own 15 National Invention Patents, with maltose manufacturing machine customers all over the world. Like Russia, India, Algeria, South Africa, Nigeria, Syria, etc.

Our Service

1.We can appoint specialized after sale service staff to your country for installation and debugging the corn starch syrup processing plant.
2.Train operating personnel.
3.All the machines will be checked OK before delivery.
4.Warranty for 12 months.
5.We provide technical support in overseas.

Packing & Delivery

Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF
Accepted Payment Type: T/T, L/C, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow
Nearest Port: Qingdao, Shanghai, Guangzhou, Ningbo

Related Products

Henan Doing Mechanical Equipment Co., Ltd, is located in Zhengzhou city, Henan province, China. Doing company is an enterprise integrating engineering, R&D, equipment manufacturing and installation, project contracting, technical services and international trading etc. We are mainly engaged in starch and syrup processing plant, cassava processing plant, contains its stand-alone device. also gluten machine. Any questions, contact us freely.
