2018 High Quality Vertical Pin Mill for Maize Starch Plant
Zhengzhou Jinghua Industry Co.,Ltd. is a specialized starch engineering technology company that is engaged in a variety of starch engineering design , equipment manufacture ,engineering installation and commissioning , technical staff training and so on .
Depending on the unique advantage and strong strength of Henan University of Technology, ZZJH produces machine making all kinds of starch . Such as potato starch making machine , sweet potato starch machine , cassava starch machine , garri machine , corn starch machine .

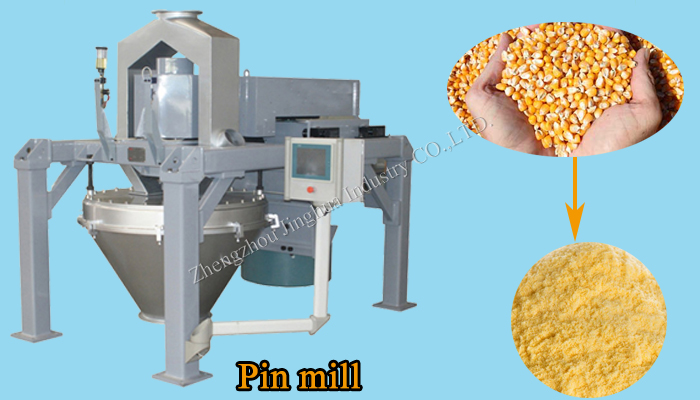

Vertical pin mill is a modern mill with high efficiency. It is a pivotal equipment widely used in corn starch processing industry.This equipment excels for its compact structure, reliable operation, fine grounding effect and big treating capability etc.
Features of vertical pin mill:
1.Simple operation mechanism
2.Energy efficient
3.Low maintenance
4.High performance
5.Easy installation

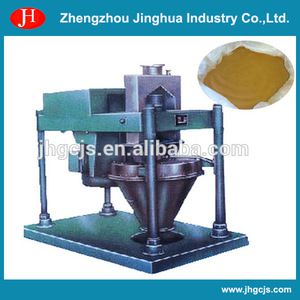

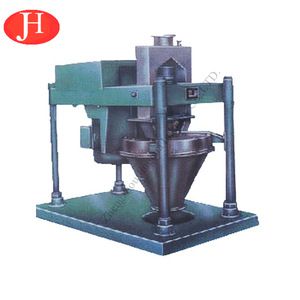

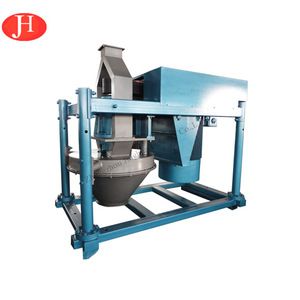

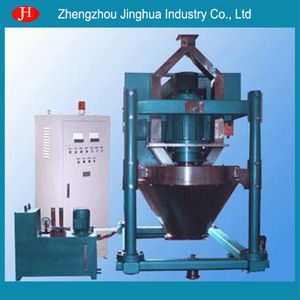

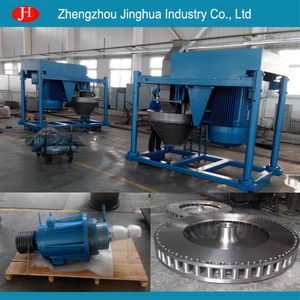

Product show:
>>>>>>>>>>>>>>>>>>>>>>>>Contact Us
Main parameter | Model | |
685 | 1000 | |
Diameter of rotary plate (mm) | 685 | 1015 |
Rotary speed of rotary plate (r/min) | 3750 | 3100 |
Line speed of rotary plate (m/s) | 135.5 | 164.8 |
Content of dry material fed into mill (corn pulp) | 210-340g/L | 210-340g/L |
Content of free starch fed into mill (corn pulp) | ≤10% | ≤10% |
Capacity (marketable corn) t/h | 5~8 t/h | 12~15 t/h |
Content of linking starch in fibre reside after grinding | ≤ 15% | ≤ 15% |
Rate of coarse and fine particle in pulp after grinding | 2.5:1 | 2.5:1 |
Noise (with water) | ≤90dba | ≤ 106dba |
Main motor power | 75kw | 220kw |
Lubrication oil pressure(MPa) | 0.05~0.1Mpa | 0.1~0.15 Mpa |
Power of oil pump | 1.1kw | 1.1kw |
Over all dimension L×W×H (mm) | 1630×830×1600 | 2870×1880×2430 |
Pre-sale service
1. Introducing detail features and application of the products to customer.
2. Selecting economical and practical machines for customer.
3. Providing operation data of the related machine.
4. Providing means of trial performance for customer.
5. Flow chart and factory designing layout .
Sale service
1. Recommending engineering conditions required for installation of the machine.
2. Communicating the manufacturing progress of machines with customer in time.
3. Project planning and design services;
After-sale service
1. Training of equipment maintenance and operating personally.
2.Installation and commissioning of equipment until everything is functional.
3. One year warranty and Providing long-term maintenance service and spare parts.
4. Giving technical support to customer for developing new product.
5. Engineers available to service machinery overseas.
6. Provide English Version of Installation/Operation/Service/Maintenance Manual.
Packing : wooden cases/ customized
Delivery :25days after receiving pre-payment (on time according to contract strictly )
Q1: Is your company a factory or trading company?
A: Our company is a factory in Henan Province ,with export license
and we have done export business over 20 years professionally.
Q2.What is your main business?
A: ZZJH is devoted to starch processing machine. The machine of starch processing line , such as : cassava starch line , cassava flour line , potato starch line , sweet potato line , wheat starch ,sago line and garri line
Q3:Where is your factory located? How can I visit there?
A: Our add: Zhengyun Road and Guanggu Road intersection , Guangwu Town , Zhengzhou City , Henan Province , China.
Warmly welcome to visit us!
Q4: Are your products can be assured ?
A: Our machines are all passed ISO9001:2001 and have CE certificate by SGS, TUV.
Q5: If we show you our layout of factory, can you help us to design the whole process line?
A : Yes, our experienced engineers and technical employees can help you to arrange the layout and installation of whole process line based on your real situation;
Q6: If we have samples of new products, can you help us to analysis and design the machine?
A: Yes, Our technical department can help you to analysis, design and test the new products you offered.
