10TPD Small scale maize corn grits flour milling machine for bread maize flour grinding machines for backery
10TPD corn grits flour milling machine for bread is small scale unit, which is low investment and high efficiency, is a small complete set of equipment which can produce continuously. Its design is principle, operation is simple, maintenance is easy and cover little area.

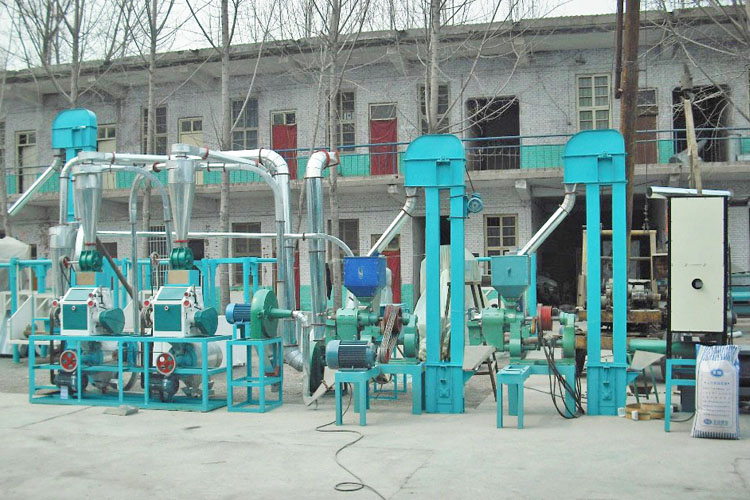

10 ton per day cron grits flour milling machine
| Output(t/d) | Power(kw) | Processing capacity | Extraction flour | LXWXH(m) |
| 10 | 40 | 500kg/h | F1 flour: 70% F2 flour: 80% | 8*6*4.5 |
We matched 2 roller mills for the maize flour mills for bread. According to the capacity 10TPD small scale mill plant, it also has main equipments like cleaner and crusher. Customers will see the wheat cleaning and sifting and milling process. Giving this small scale flour grinding machine for backery a complete and well-working design.
Click Now for Catalogs & Factory Price!
Technology process of corn grits flour milling machine
Grain clean: it adopts sieve,destone,wiping,maganetic separation and air separation etc.
Peeling: which uses iron roller grinder and adopts the iron roller grind and wipe to peel and whiten.
Fine separation of coarse grind: it adopts paddlemill,and sieve the different maize grits and flour through 2mm screen.
Milling: maize flour mills for bread uses two sets of flour mill,through the roller mill grinding and round sieve milling,then get defatted coarse maize flour all through the 50-70 mesh screen.
Main machine list for flour grinding machines for backery
| No. | Description | Qty. | Power (kw) |
| 1. | Bucket elevator | 1 | 1.1 |
| 2. | Combination cleaner | 1 | 3 |
| 3. | Bucket elevator | 1 | 1.1 |
| 4. | Decrustation | 1 | 13 |
| 5. | Decrustation | 1 | 15 |
| 6. | Crusher | 1 | 4 |
| 7. | Bucket elevator | 1 | 1.1 |
| 8. | Magnetic Drum | 1 | |
| 9. | Roller mill | 2 | 8 |
| 10. | Round sieve | 3 | |
| 11. | Fan | 1 | 5.5 |
| 12. | Dust catcher | 1 | |
| 13. | Air lock | 2 | |
| 14. | Control panel | 1 | |
| 15. | Supports | 1set | |
| 16. | Pipes | 1set | |
| 17. | Cables | 1set | |
| 18. | Platform scale&portable sewing machine | 1set |

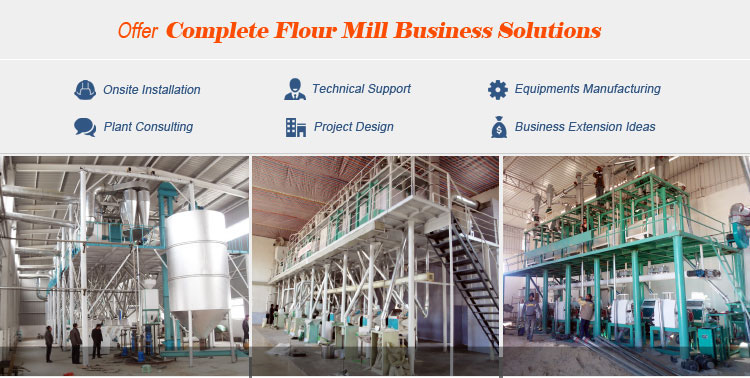

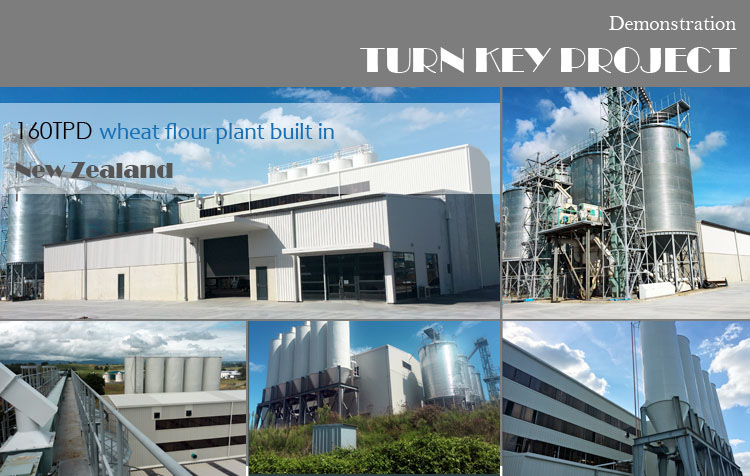

More successful flour mill machine we build in the worldwide
