KAIFENG RAINBOW MACHINERY Co.,Ltd
High Quality corn flour production line
KAIFENG RAINBOW MACHINERY Co., Ltd is specialized in production of machines used in food, feed, farm and tech field. We have our own professional research and development department, and specialized production base.
Relying on the strong industrial and technological superiority and excellent transportation advantage,our company has had strategic development.
High quality is our obligation. Great service is our mission. We warmly welcome clients around the whole world to visit our plant and our Office!
Storage Section:
The grain silo is widely used in storing grain such as wheat, corn, maize, rice, paddy, malt, barley, soybean,etc.
(This part is optional if there is no need to store)
Cleaning Section:
To ensure the flour Quality and the working life of the mill by removing the impurities in the wheat before go to mill.
This part includes:

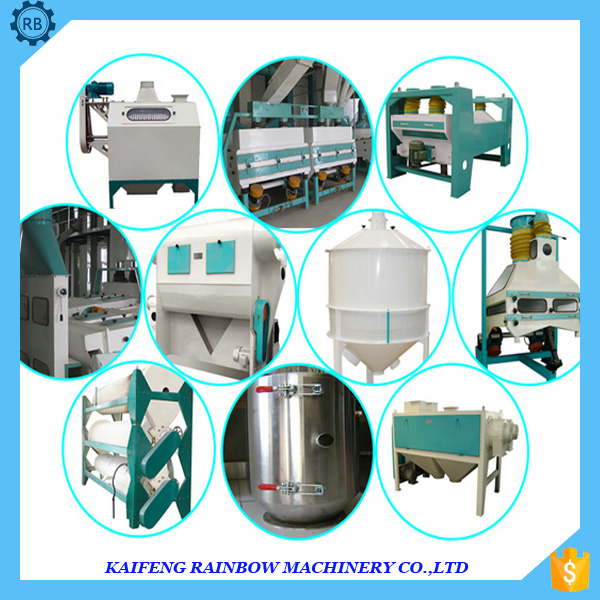

Vibrating Separator / Gravity Grading Destoner / Rotary Flat Sifter / Horizontal Wheat Scourer / Magnetic Separator.
Milling Section:
To mill the wheat and separate the flour and bran until get the finished wheat flour.
This part includes:
Pneumatic Roller Mill / Purifier / Plansifter (Single bin or double bin or high square)/ Bran Finisher / Impact Detacher.

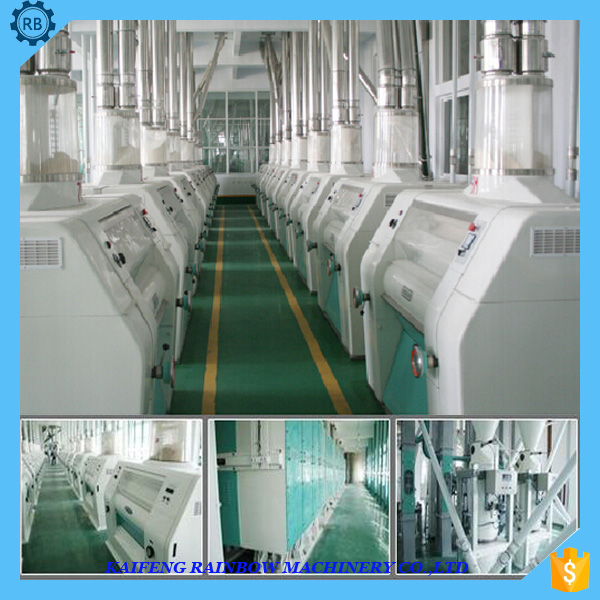

1.Roller mill: Key machine in flour mill production line, to mill the wheat to break the integrity by the roller;
2. Purifier: To reduce the ash content in flour, applied for purifying and grading milled flour;
3. Plansifter: Main equipment in flour mill, grading the flour , to ensure layout qualified finished flour.
(Should know that different capacity has different type and different number of roller mills,plansifter and purifiers.)
Packing Section: (Flour packing machine / stacking )
It is well designed for packing various kinds of powdery materials such as grain flour,starch,chemical materials,etc.It has a great precision as low as 0.2% in weighting.
Parameter of 30ton/day flour milling machine
Name | 30tons wheat flour milling machine |
Technology in cleaning part | One screen, two scour, two destoner, One damper, and one magnetic separator. |
Technology in milling part | Eight sets of 6F2235 roller mill, three sets of Double-section high efficiency square sifter consist of the milling technology of four break, four reduction, one bran brusher. |
Production capacity | 30-35 tons of wheat/24H |
Power supply | About 88kW |
Workshop style and dimension | Triangle-framed workshop, with 24m long and 7.0m wide, and 6.8m under the beam. |
Container | 40’×1 + 20’×1 |
About packaging, for small size or single machine, we can offer free fumigation wooden case with steel frame, it not only can protect machine from damage, but also avoid checking when exporting.
For multiple machines or production line,it's better to loaded in standard container 20GP, 40GP, 40HQ, unually it needs wrapped with plasitc firstly, then loaded in container.
We can offer EXW, FOB and CIF terms.
EXW: You arrange the shipping details from our factory to your port by yourself.
FOB: We arrange freight transport to Qingdao, Shanghai or other ports of China, then you arrange the shipping details from China port to your country port.
CIF: We arrange all shipping details to your country port, and ensure machines smooth arrival.
1. Help you choose the most suitable machine.
2. Making the machine according to your request.
3. Give you machine’s details and video for help you use the machine more better.
4. One year warranty
5. Quality problem,we will send you the accessories.
6. Free repair whole using life without extra charge.
*How do you guarantee I can receive the goods that ordered after make the payment?
Please rest assured that you will receive the goods in time, we are a legally established company supervised by the government, and is registered in customs of China and China Chamber of International Commerce. Besides, we are the golden member of Alibaba and has been checked by the third party as the real and legal company, what is more important, honesty and trustworthiness is our basic principle and our company life.
* How to make the payment?
Normally, when the order value is below USD10,000, we accept the payment by T/T or Western Union or Cash, L/C will baccepted when the order value is over USD10,000. For T/T, the customer can choose 100% in advance or 30% in advance, and pay the 70% balance before shipment.
*Date of delivery?
We will arrange the production and shipment as soon as possible when we received the deposit, and update the information with the customer on line.
*Suitablity of motor?
As there are many volatage standards in different countries in the world, so the original motor equipped on the machine would not suitable to be used with the customer's local power supply, when this situation happend, please send us your exact information of the power supply available, then we can modify the motor accordingly.
*After sale service?
For most of the machines, the quality is guaranteed for one year since the date of shipment expet wearing parts, we supply the on-line service for all the machines, and also supply the spare parts all the time with cost price, for some complicated machine or plant, we can send our engineer overseas too.
