| Specification | |||
| Main Screw | 90mm | Working speed | 25-32s/min |
| Length-to-diametre ratio of main screw | 1:32mm | Pumping speed of vacuum pump | 70m3/h |
| Screw rotation speed | 10~80r/min | Vacuum limit | 2×102Pa |
| Heating system | 65A | Pressure of air source | 0.5~0.7mpa |
| Extrusion output | 80kg/h | Displacement of air source | 0.7~1m3/min |
| Power of main motor | 18.5kw | Power supply woltage | 380V50HZ |
| Power of sucking plastic and shaping section | 1.5kw | Weight of complete unit | 5T |
| Max shaping area | 600×260㎡ | Main engine size(mm) | 7000*1200*2000 |
| Max shaping depth | 80mm |
What this machine can do?

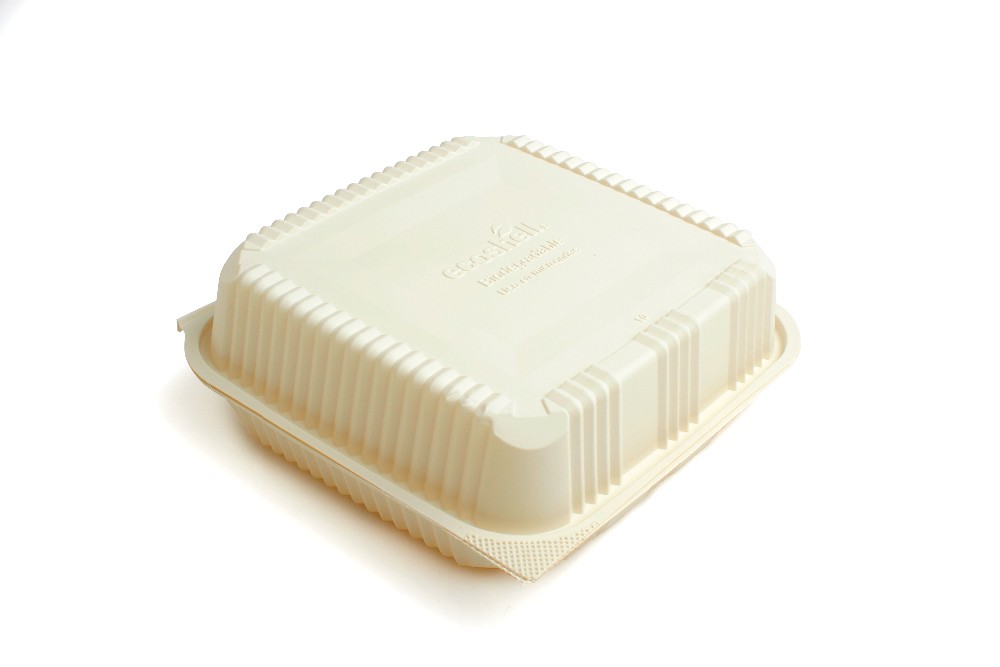

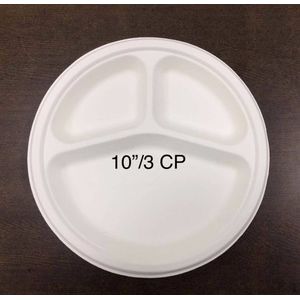

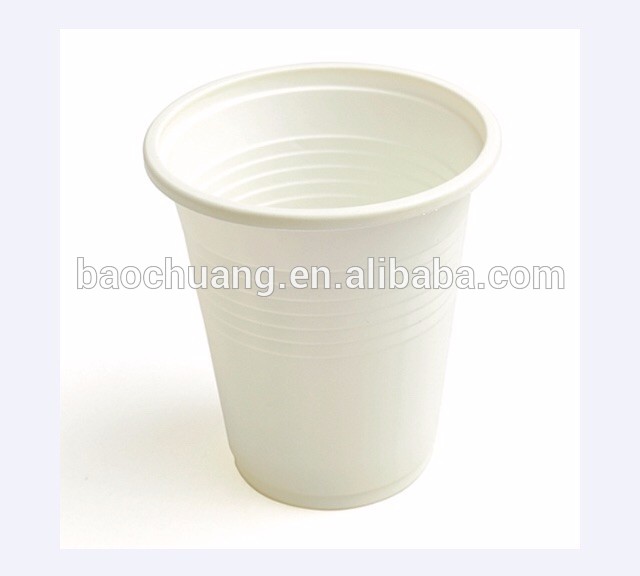

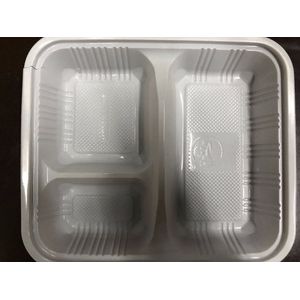

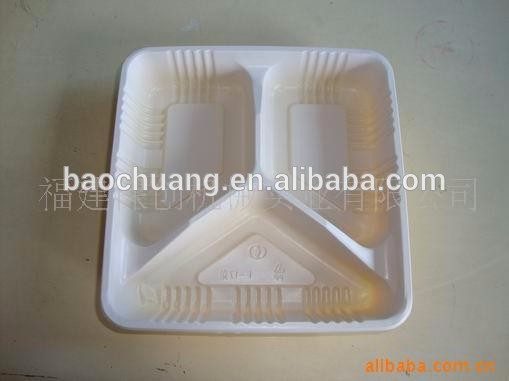

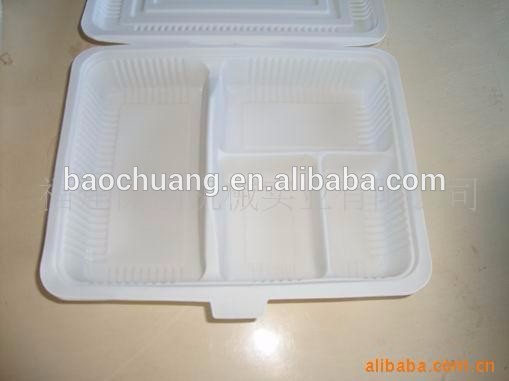

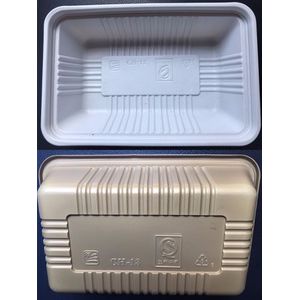

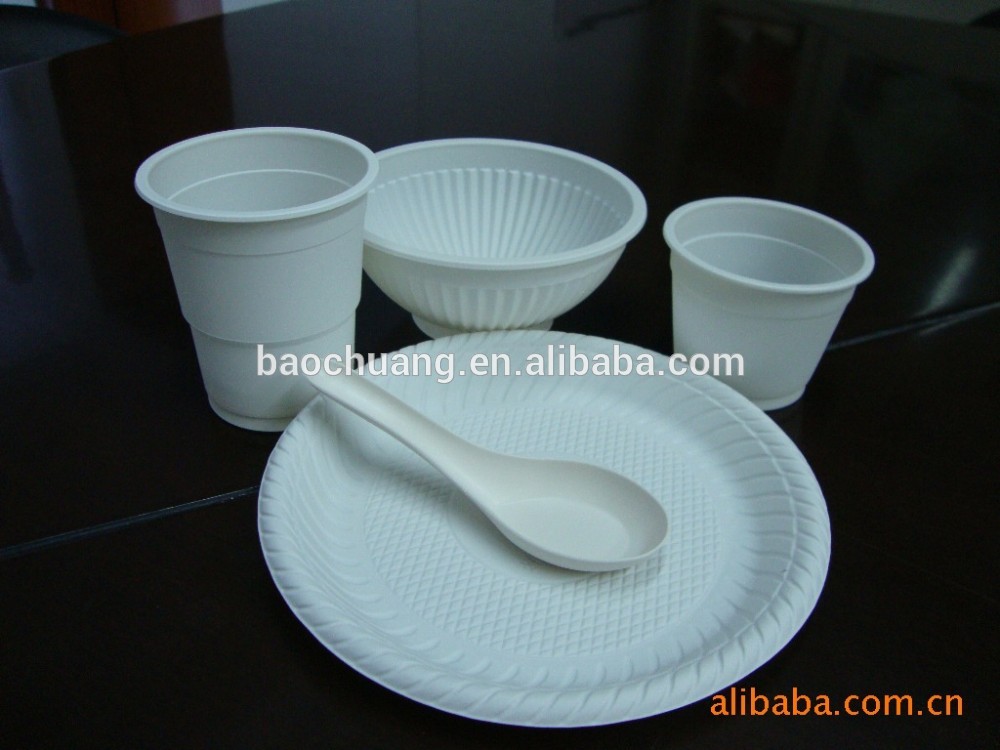

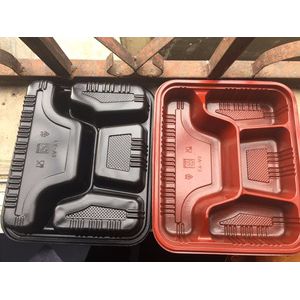

The Machine produces tableware by using a variety of raw materials such as PP(poly propylene), PS, PE, Calcium carbonate, plant fibre, Corn starch, Bamboo powder, Wood powder, Husk, Straw, and so on. It is able to manufacture a great variety of products as follows: bowl, cup, plate, dish, lunch box, cleaned vegetable tray etc. The daily output of machine reaches 130,000 pcs of lunch box. By changing moulds, it can make packing furnished with ultraviolet ray sterilizing line and automatic water temperature adjusting system. We also provide double-Screw(two colors) and Triple-Screw machine, the main advantage is this kind of machine is able to produce products with 3 layers, 4 layers, 5 layers.
1. Eliminates the drawing piece of manufacturing process
2. The plastic pellets can be formed directly and the gate plastic can be reused again.
3. Above process can save energy for re-heating the drawing piece, The electricity consumption of X-80 Production Line is 13 degrees per hour, and 15 degrees per hour for X-90 Production Line .
4. The thickness of the product can be controlled easily
5. It is adapted to producing inner or outer food container each as DO-FU box,jelly cup,fast food box,bowls,tray made of PP or other environment protection material.
6. Environmental Protection， This machine line is able to produce products with 70% starch, or up to 30% plant fiber(Bamboo powder, Wood powder, Husk, Straw)
8. Low-cost，This machine produces products with 80% Calcium carbonate.( the price of Calcium carbonate is about 61 USD per ton in China).
9. We provide the formula of producing products, and formula of producing Biodegradable boxes. The certificated degradation rate reaches 80% in 28 days.
10. This machine line and our formula has been certificated by CE, SGS. What is more, we owns a number of national patents. The products produce by this machine has been Inspected by Chinese Research Academic of Environmental Science Solid Institute and National Research Center for Environmental Analysis and Measurement.
Corn Starch
Halm, Starch
Starch
Starch
Chaff
After 30 days of degradation
After 10 days of degradation
1.Fully-automatic X-90
Including Extruding machine+Forming machine+Fully automatic punching machine.
2.Semi-automatic+Aotomatic cutting machine
Including Extruding machine+Forming machine+Semi-automatic punching machine+Automatic cutting machine.
Baochuang Factory
Fujian baochuang Machinery Industrial Co., Ltd.
The company is located in Fuzhou, Fujian Province, the factory covers an area of 43 acres. Located in Minhou Jingxi Minhou Tieling Economic and Technological Development Zone one on the 9th Road on the 9th. Mainly produces one-step extrusion plastic molding machine products; computer tableware machine products; single screw, twin screw extruder; high-speed mixer and plastic packaging molding machinery, after ten years of business the company has developed accumulation design and development of new products. Has dozens of national patents, products in the domestic similar products leader. Products exported to Southeast Asia, Africa, the Americas, Europe, and more than twenty countries. Products by "sgs" identified by EU standards. Company technical personnel from Institute of Chemical Engineering, Fuzhou, Fuzhou Plastics Research Institute, Fuzhou BYK technical backbone of the Institute of Light Industry.
Company Address: 21 Fuzhou Road Tongpan 307 (Provincial Revenue opposite) (Zuohai Park on the right)
Tel: 0591-87829330
Fax: 0591-87829330
Mobile: 13906939716
Web:http://www.baochuang.com/EN/index.asp
SGS Certification
Our company own SGS, CE certification
Patent
Patent of Environmental Protection Tableware Forming Sheet Cutting Machine
Patent
Patent of Environmental Protection Tableware Processing Conveyor
| Chinese Research Academic of Environmental Science Solid Institute An experiment report on aerobic biodegradation performance in disposable tableware | |
| Sample name | Starch, plant fiber tableware |
| Sample delivery Company | Fujian Baochuang Machinery Industry Co.,Ltd. |
| Consignor | Yizhong Lin |
| Sample Size | 10 |
| amount of inspection | 2x40g |
| Sample shape | Bowl |
| Deliver date | November 24, 2000 |
| Examination date | December 1, 2000 - December 20, 2000 |
| Experimental method | GB/T 18006.2-1999 《Disposable degradable tableware degradation performance method --Appendix D》 |
| Experimental project | Rate of oxygen biodegradation |
| Experimental result | Rate of oxygen biodegradation is 61.5% |
| Remarks | At the request of the consignor, the experiment was shortened to 20 days |
| National Research Center for Environmental Analysis and Measurement Analyze and Test Report Form | |
| Sample name | Starch, plant fiber tableware |
| Sample delivery Company | Fujian Baochuang Machinery Industry Co.,Ltd. |
| Deliver date | Feburary 25, 1999 |
| Examination date | March 4,1999 - April 2, 1999 |
| Experimental project | Oxygen biodegradation |
| Experimental method | Standard methods of determin plastic under the conditions of aerobic biodegradation in the managed heap fertilizer (ASTM D5338 -92) |
| Experimental result | Rate of oxygen biodegradation is 39.9% (Each gram of sample cumulative produces 614.8 mg carbon dioxide in 30 days) |
| Remarks | There is no standard method for determining biodegradation rate in China, so we useASTM D5338-92 as approach. This degradation rate is higher than the biodegradation rate of degradable plastic cutlery in China |
