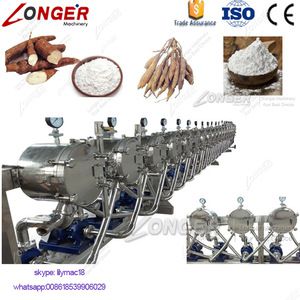

Maize Starch Production Line|Cassava Starch Production Line

Maize Starch Production Line|Cassava Starch Production Line   Machine nameModel and specificationunitquantityRemarkDerocker machineLG01A-1600set1Material: carbon steel Length: 3m, power: 4KWCleaning machineLGX-1600set1Material: carbon s

Technical Feature

  • Henan, China (Mainland)
  • LONGER
  • LG
  • Grain Processing Equipment
  • Engineers available to service machinery overseas
  • 1.5-2ton/hour
Send Project Inquiry Add Inquiry List

0 Add Favorite

DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

Place of Origin
Henan, China (Mainland)
Brand Name
LONGER
Model Number
LG
Type
Grain Processing Equipment
After-sales Service Provided
Engineers available to service machinery overseas
Capacity
1.5-2ton/hour

DETAIL DESCRIPTION

Maize Starch Production Line|Cassava Starch Production Line



Machine name

Model and specification

unit

quantity

Remark

Derocker machine

LG01A-1600

set

1

Material: carbon steel

Length: 3mpower: 4KW

Cleaning machine

LGX-1600

set

1

Material: carbon steel

Length: 4m

Conveying groove



set

1

connected with the cleaning machine

power: 5.5KW, with frequency converter

length: 1.5-2m, width: 0.3m, height: 0.2m

3MM









Screw conveyor

 Φ350n=3m

set

1

material: carbon steel power: 3KW

with frequency converter

purified water spray

Hopper



set

1

Volume: 1.5m3, feeding openinginclination:>75°

Rasping machine



set

1

Outer is made of stainless steel

Power: 5.5KW   ball valve:  1pc

Centrifugal screen

LG02C-810

set

4

Outer is made of stainless steel

 Power: 11KW*1,   7.5KW*3

Desanding machine

LGH-150

set

1

Stainless steel, with sand collecting equipment

filter



LGLQ-300

set

1

Stainless steel,   power:  1.5KW



delicate swirler

LGXL-300

set

20

stainless steel, with pipeline

Starch pump

V=8m3  H=40m

set

17

Stainless steel  power: 4KW*17

Starch pump

V=12m3  H=40m

set

3

Stainless steel  power: 5.5KW*3

Centrifugal pump

V=8m3  H=50m

set

1

Carbon steel,  power: 4KW

to motive refined starch to dewatering machine

Starch pump

V=4m3  H=25m

set

1

Stainless steel  power: 3KW

Starch pump

V=7m3  H=25m

set

1

Stainless steel   power: 3KW

Rinsing centrifugal pump

V=7m3  H=25m

set

1

Cast iron   power: 3KW

Starch storage tank

3m3

set

1

 Stainless steel

With mixing function   power: 1.5KW

End product conveying machine

LGXL-300

set

1

Stainless steel  power: 1.5KW

Vacuum dehydrator

LGTS-4

set

1

Filtering area: 3m2power: 3KW

Vacuum pump

LGSK-6

set

1

Stainless steel  power: 11KW
