Automatic Corn/maize starch production line made in China
Corn/maize starch production lineCorn/maize processing plantCorn/maize starch plant
Brief Description
The purpose of corn wet milling is to separate corn into four main components - starch, germ, fiber, protein (gluten) and corn steep liquor (CSL); and then convert the components into useful products.
ACRO Design features of the processing line will be typical "wet milling" and "closed cycle process flow", with process principle of material flow, water and heat circulation; counter current process adopted for corn steeping, germ washing, fiber washing and starch washing system; fresh water introduced to starch washing only, process water will be reused as wash water for germ and fiber, steep water preparation etc.; in this way, water consumption and waste water volume reduced, meanwhile, high quality and yield of products can be achieved.
The selected equipments are effective and productive, which have experienced during long term testing and running in practice, performance of the equipments reached to international advanced level.

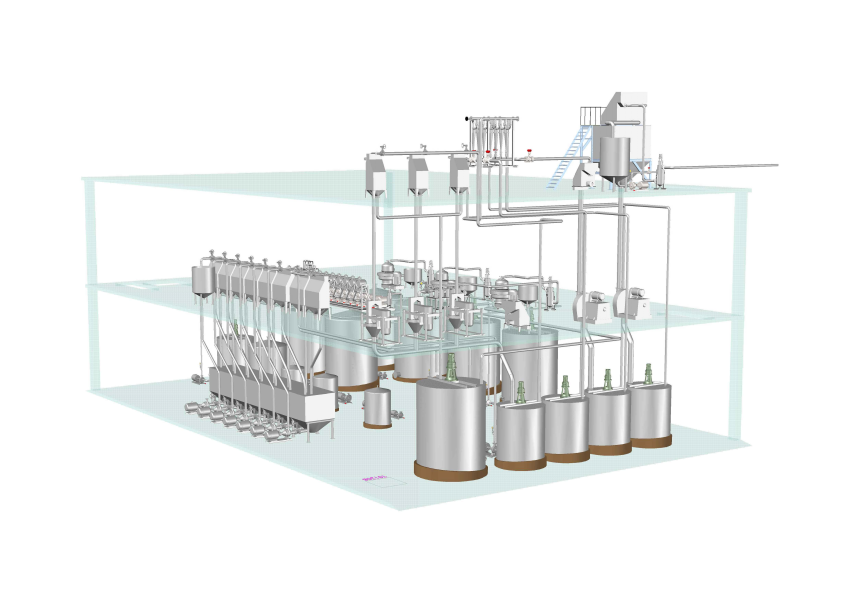

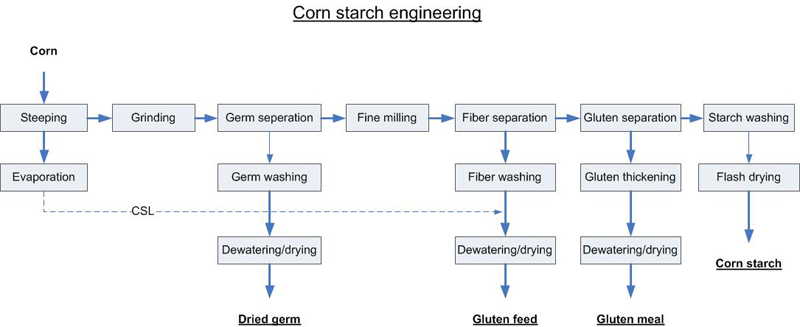

Process Groups & Flow Diagram
The corn starch production plant includes the following process sections:
- Corn receiving/ cleaning and storage
- Steeping and sulphurous acid preparation
- Milling and germ separation
- Fine milling and fiber washing, dewatering and dryin
- Starch / gluten separation and starch washing

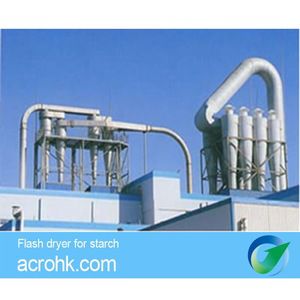

- Starch dewatering and drying
- Germ washing, dewatering and drying
- Gluten concentration, dewatering and drying
- Process water
- Light steep water evaporation

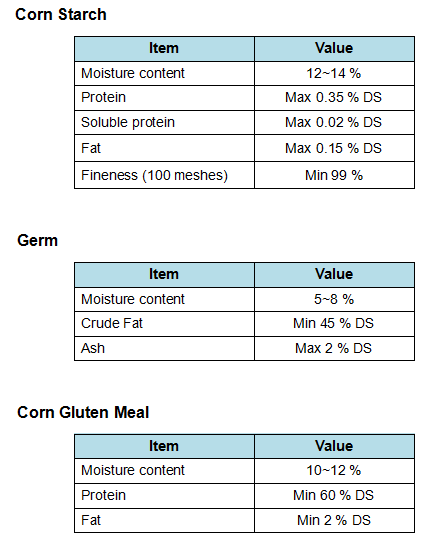

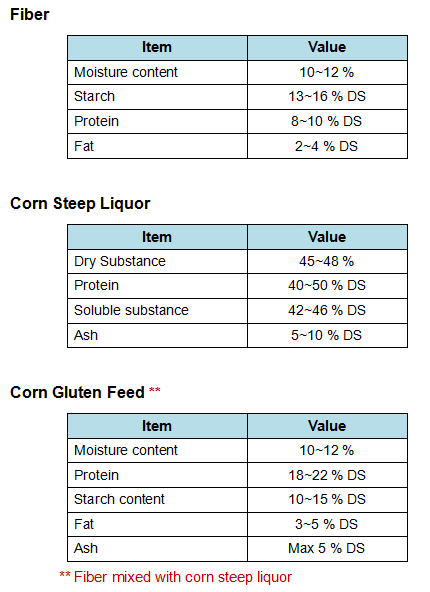

Main Quality Indexes of Products (for reference)
Basis of Engineering and Technical Design
- Processing capacity—cleaned corn 100~2000 tons / day;
- Turnkey solutions, or customized process design;
- Professional process design, advanced technology level;
- Main equipments are high efficiency and reliable performance;
- High quality products, industrial or food grade corn starch;
- High product yield and total dry substance recovery rate;
- Low water consumption and waste water drainage;
- Lower energy consumption and operating costs;
- Modern process control, semi-or full automatic control system, continuous and stable operating conditions, low labour requirements.
Our services
- Service before sales: helps client to find technical solutions, assist on engineering design;
- Service during project construction: full technical support on installation, commissioning, test running, training;
- Service after sales: helps on factory management & operation, well organized quick support for spare parts supply and maintenance.
