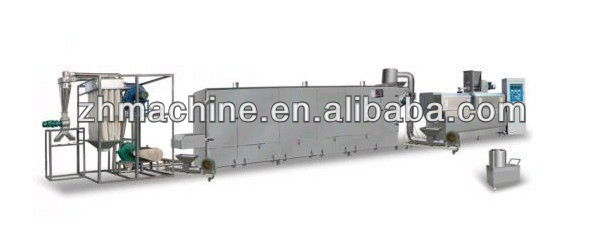

Nutrious baby rice flour powder production line
1. Description:
Baby food machinery is used to produce infant baby food and some other instant flour products. The raw material is put in the mixer then mixed ingredients are fed into extruder feeder. The extruder is fitted with: special cylindrical holding silo; vibratory doser with hopper to feed the extruding screw; extrusion mechanism and cutting; independent electric panel.After the extrusion the product is conveyed till the continuous rotary drier through a pneumatic conveyor. The continuous rotary drier has a heat exchanger with gas burner that allows a better heating of the product and it is economically viable owing the low cost of electric power. Case the client prefers we have the electric drier also.
2. Products: baby food, FBF, CSB and samaposha etc
3. Capacity: 150kg/h(ZH65 Extruder), 240-300kg/h(ZH70 Extruder) , 500kg/h(ZH85 Extruder), 600-900kg/h(ZH95 Extruder).
4. Flow chart: Mixing system---Extrusion system---- -Drying system----Milling system---Packing system
5. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers’ Local voltage according to different countries
6. Technical Parameters
Model | Installed power | Real power | Output | Dimension |
ZH65 | 66kw | 50kw | 100-150kg/h | 19000x1200x2200mm |
ZH70 | 100kw | 67kw | 200-240kg/h | 21000x1500x2200mm |
ZH85 | 130kw | 80kw | 400-500kg/h | 30000x3500x4300mm |
7.Production Advantage:
1. The motor of our extruder machine is Siemens Motor.
2. The raw material of our machines is Stainless Steel.
3. Our automatic machines are controled by frequency changer, it is easy to operate.
4. Our factory will send our engineer to install machines for you.
5. baked snack machine have the 12 months guarantee time.
6. The machine is multifunction. Many types of snacks can be manufactured by changing the die head and model.
8.Sample pictures
nutrious baby rice flour powder production line
