sweet potato starch machine starch production line

cassava starch processing machineskype:woodlily8Whatsapp: 0086-15736766285 Scope of application: It is used for extracting starch from potato, sweet potato, kudzu root, etc. Suitable for the farmers individual and small scale

Technical Feature

  • Henan, China (Mainland)
  • Taizy
  • TZ
  • Grain Processing Equipment
  • Engineers available to service machinery overseas
Send Project Inquiry Add Inquiry List

0 Add Favorite

DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

Place of Origin
Henan, China (Mainland)
Brand Name
Taizy
Model Number
TZ
Type
Grain Processing Equipment
After-sales Service Provided
Engineers available to service machinery overseas

DETAIL DESCRIPTION

cassava starch processing machine

skype:woodlily8

Whatsapp: 0086-15736766285



Scope of application:



It is used for extracting starch from potato, sweet potato, kudzu root, etc.



Suitable for the farmers individual and small scale processing.



Parameters :



Model

TZ-5000

Capacity (T/H)

5









Motor (KW)







Motor for washer peeler and conveyor

1.5

Motor for crushing  and serous starch separator

22

 Motor for second    serous starch separator

2.2

Water consumption(M3 / H )

15

Covering  area (M2 )

100

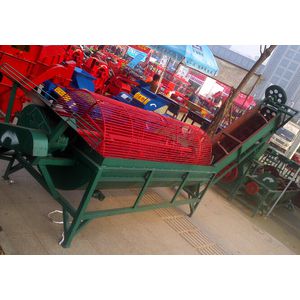

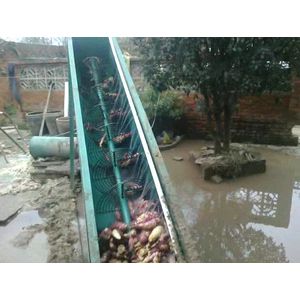

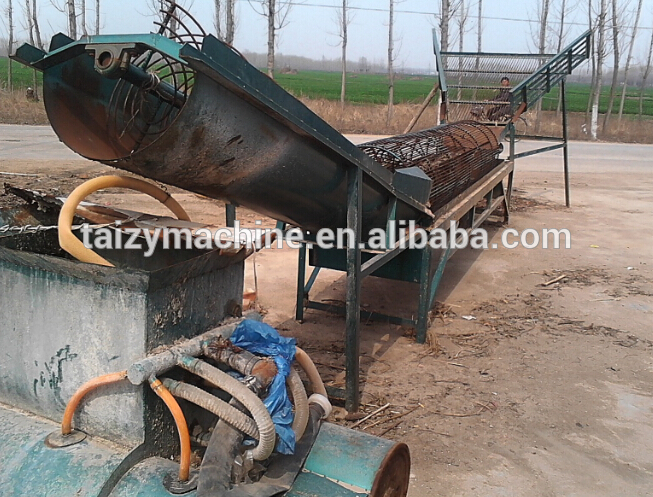

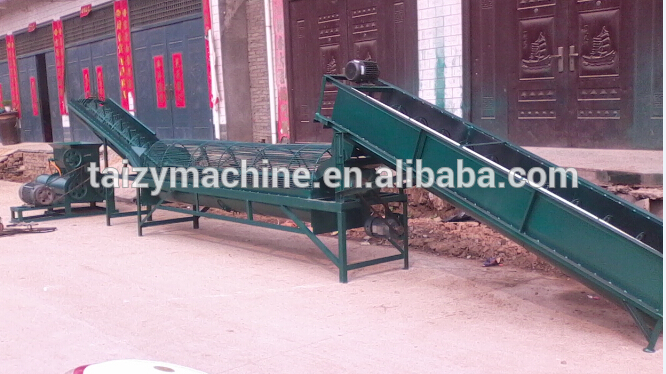

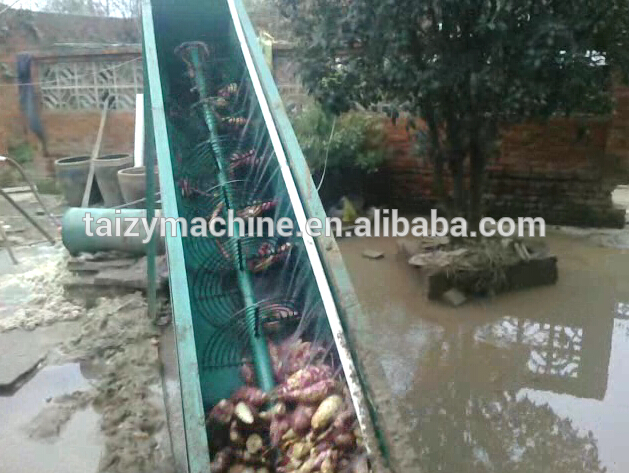

1 :Washer peeler conveyor combined machine

It is used to wash the cassava , make it clean and peel the our skin at the same time  , as there is also screw conveyor in it , the cassava after washing and peeling will be transported to the next machine  for crushing .

Model

TZ5000- - F5

Capacity

5 T/H

Speed

1440 r/min

Motor

1.5 KW

Power rating

1.5KW

Dimension (L*W*H)

4600*800*1600 MM

Weight

300kg

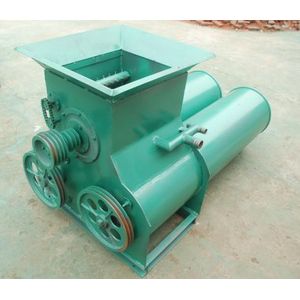

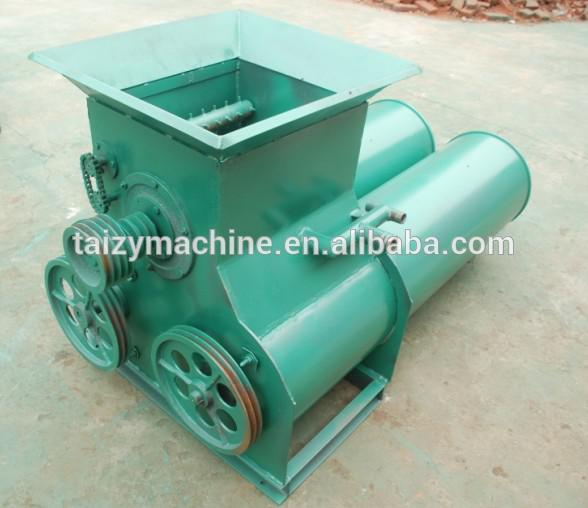

 2.Cassava crushing  and serous starch separator

Model

TZ5000- - Q3

Capacity

5 T/H

Speed of  the main rotator

2000-2200

Speed of the assisting rotator

 600-700R/min

Motor

18.5-22 kw

Power rating

18.5-22 kw

Dimension (L*W*H)

1800*900*1100 MM

Weight

300 KG



3 : Second Cassava serous starch separator



Model

TZ5000- - S2

Capacity

5 T/H

Speed

1440 R/MIN

Motor

1.5-2.2 kw

Power rating

1.5-2.2 kw

Dimension (L*W*H)

1800*800*600MM

Weight

80 kg





Packaging & Shipping

1. Machine we use the good wooden package.

2. Usually we will deIivery machine in 3 -5 working days after receive customer's prepayment.

3. Our machine warranty time is 1 year.
