Full stainless steel industrial steam cooking pot/cooking pot with planetary mixer/large commercial stainless steel mix cooker
1.The description of industrial steam cooking pot.
This planetary cooking kettle can be used for cooking fruit jam, tomato paste, curry and other seasonings production, and chemical material etc.It is a necessary equipment in food processing factory, chemical making industries. |
2.The feature of industrial steam cooking pot.
| 1. | The planetary cooking kettle adopts special materials stamping molding, overall roundness error is very little, the stirring heads are highly adhered to the pot, this can effectively control paste pot. |
| 2. | Many kinds of heating modes to be chosen such as steam, gas, electrical heating conducting oil and electromagnetic. |
| 3. | Mixing method adopt special tilting and rotation mode, which makes stirring heads high stick against the pot, revolution and rotation don’t run in ratio in order to scrap the pot thoroughly. |
| 4. | Advanced rotation and seal structure makes the pot easy to clean, meet certification standards at the national level. |
| 5. | Frequency control of motor speed, stable running. |
| 6. | The agitator is fixed, kettle can be tilting. |
| 7. | Electrical heating conducting oil: big heating area, controllable temperature, even heated. |
| 8. | Gas: convenient to use, and not restricted by operating voltage. |
| 9. | Steam: Low cost, but not suitable for high temperature needed. |
| 10. | Electromagnetic: energy efficiency and environmental protection, saves 20~30% electric quantity than common electric heating, rises temperature rapidly and the temperature can be controlled. |
3.The parameter of industrial steam cooking pot.
| Model | Pot diameter | Power | Volume | Capacity | Heating method | Dimension | Stirring mode |
| NT-100 | 800mm | 1.5+1.5 | 100L | 9kg/h | Gas/Electromagnetic heating | 1650*1170*1500mm | Planetary/ scrap base |
| NT-200 | 900mm | 1.5+1.5 | 200L | 10kg/h | Gas/Electromagnetic heating | 1800*1600*1600mm | Planetary/ scrap base |
| NT-300 | 1000mm | 1.5+1.5 | 300L | 11kg/h | Gas/Electromagnetic heating | 1900*1800*1700mm | Planetary/ scrap base |
| NT-400 | 1100mm | 1.5+2.2 | 400L | 12kg/h | Gas/Electromagnetic heating | 2000*1800*1700mm | Planetary/ scrap base |
| NT-500 | 1200mm | 1.5+4 | 500L | 13kg/h | Gas/Electromagnetic heating | 2100*2080*1750mm | Planetary/ scrap base |

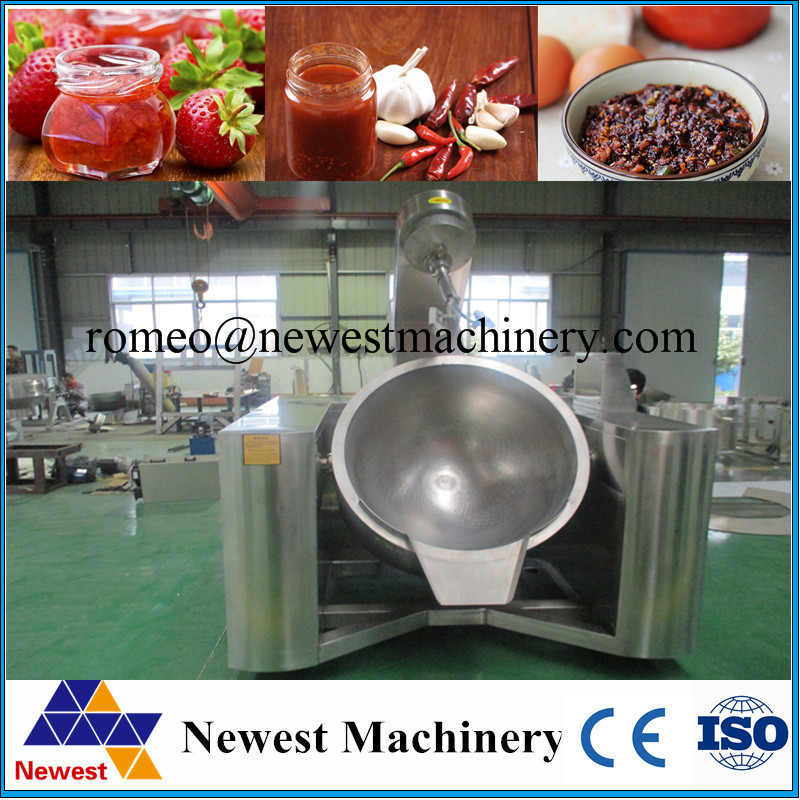

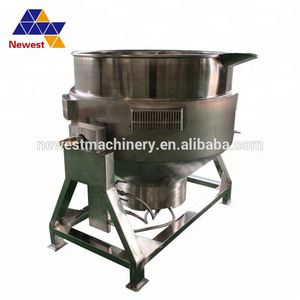

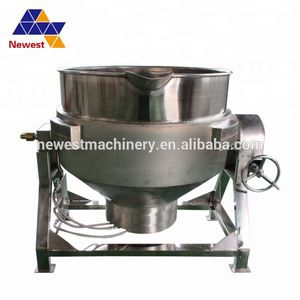

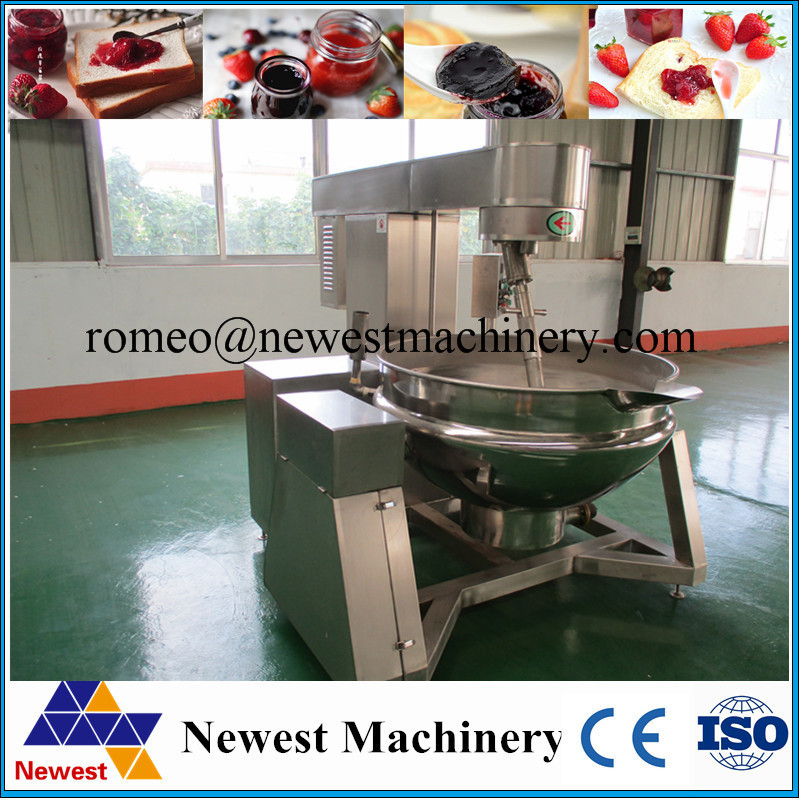

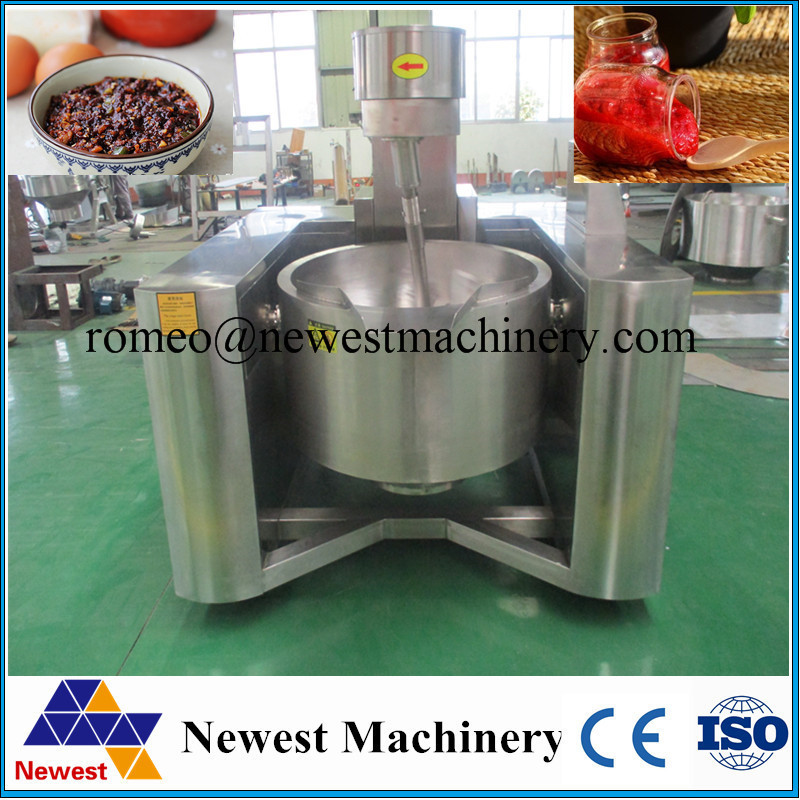

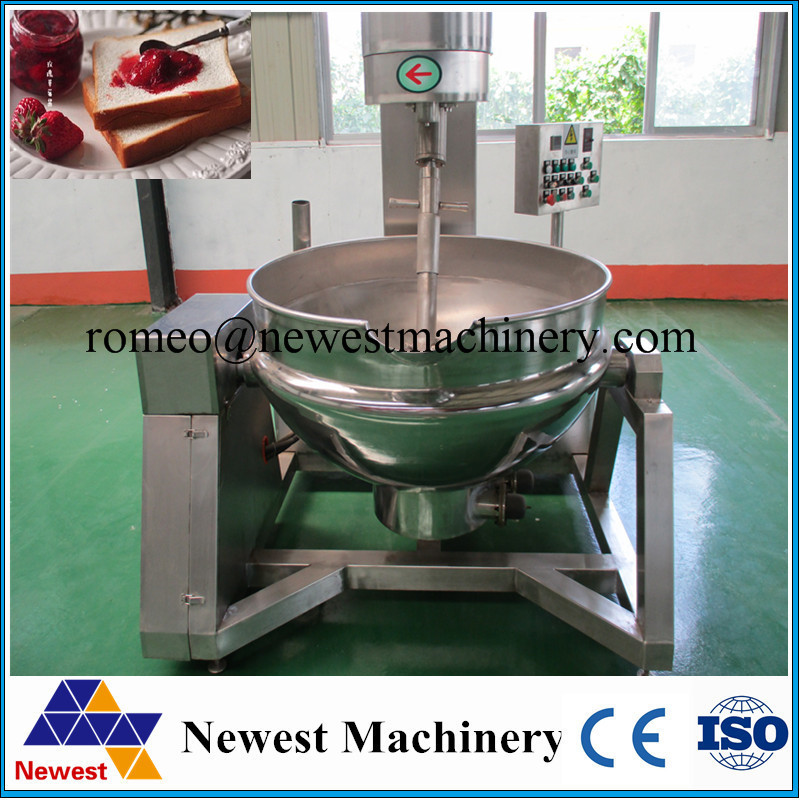

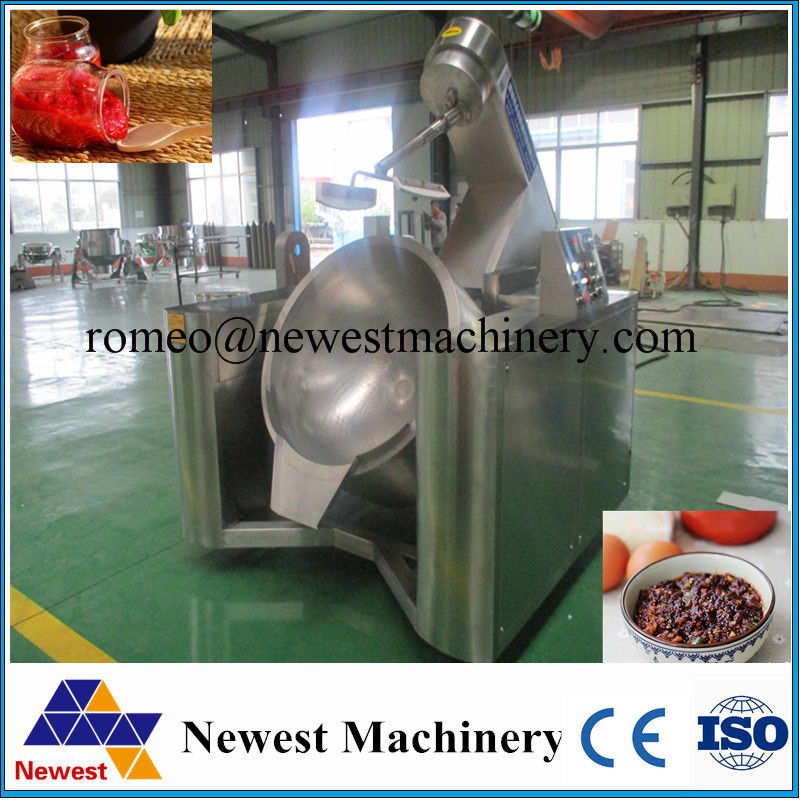

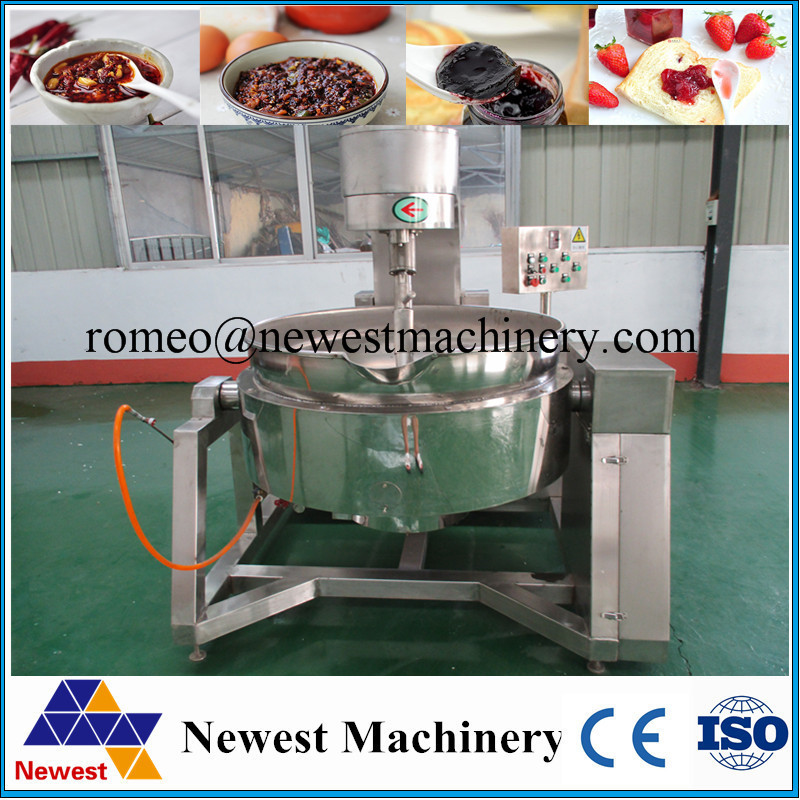

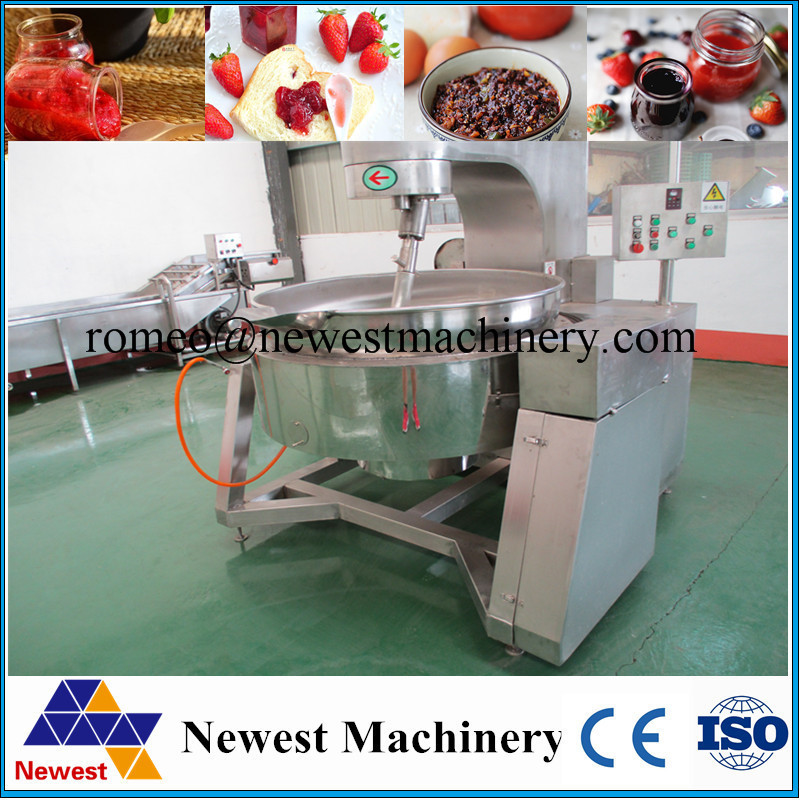

4.The photos of industrial steam cooking pot.

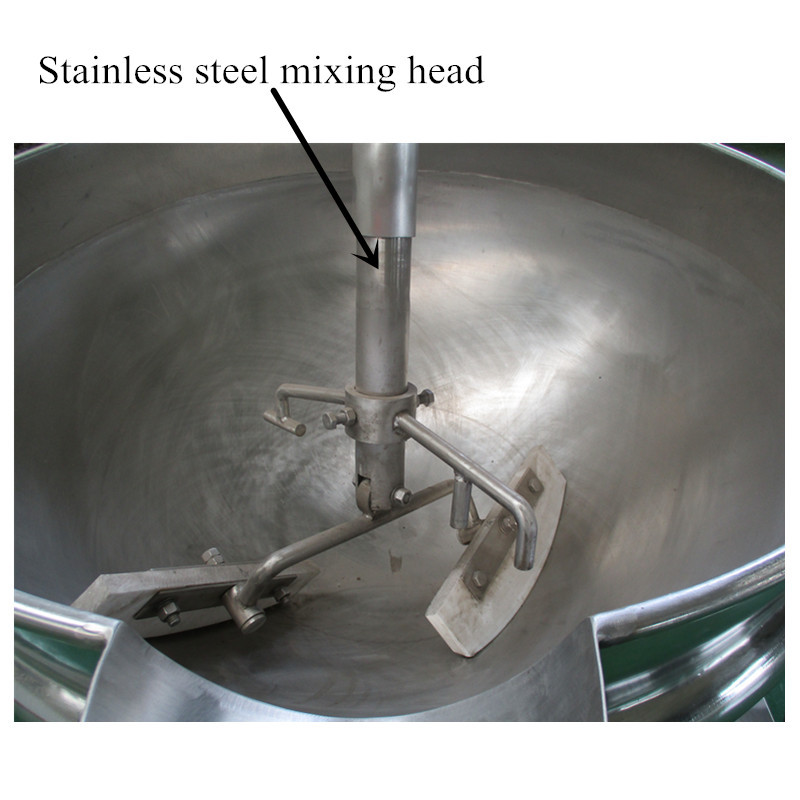

5.The details of industrial steam cooking pot.
6.The package and shipment of industrial steam cooking pot.
7.The finally products of industrial steam cooking pot.
