Industrial food grade maize starch processing line

DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

Place of Origin

Henan, China (Mainland)

Brand Name

JINGHUA

Model Number

JHPX-12.5

Type

maize starch processing line

After-sales Service Provided

Engineers available to service machinery overseas

Raw Materail

corn/maize

By products

corn steep liquid, protein,oil,ethanol,glucose

Installation

6-8months

Process

corn wet milling

Technology

advanced

Quality

top level

Capacity

50-1000ton per day

Warranty

one year

Service

project design, euiqpment, installation and test running

Aplication

corn deep process technology

DETAIL DESCRIPTION

Professional and high quality corn starch production line/corn starch palnt/ Advanced technology turn key project corn starch production plant / Industrial food grade maize starch processing line

Product Description

Capacity: 5000t-100000t per year, as your requirement.

Simple Corn Starch Production Line

1.Corn purifying section

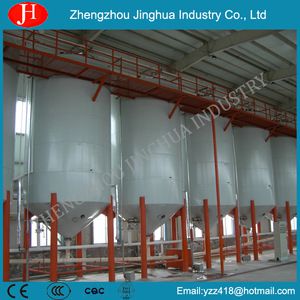

2.Corn steeping section

3.Corn germ separating section

4.Fiber separating section

5.Protein separating and starch refining section

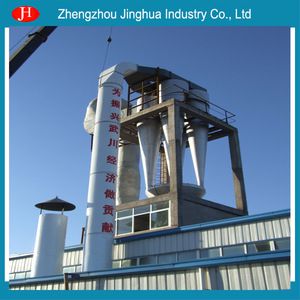

6.Starch dewatering and drying section

7.Packing section

Main Machine of corn starch production line

1.Convex-Teeth Degerminator (Coarse Grinder)

Degerminator is mainly applied to coarse crashing of steeped corn adequately to facilitate the separation of germ and fiber as well as endosperm and get the highest germ extraction.

2. Vertical pin mill

Vertical pin mill is a modern fine grounding equipment with high efficiency. It is a key equipment widely used in corn and potato starch processing industry.

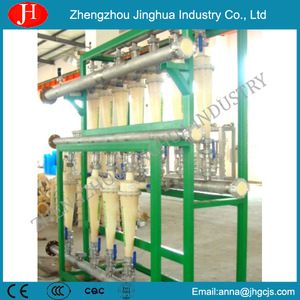

3. Germ Cyclones

The PX series germ cyclones are mainly used for germ separation by turbulent flow under certain pressure when corns are roughly crashed.

4. Pressure Arc Sieve

Pressure arc sieve is highly efficient fine sieve under certain pressure, applied in starch processing for multi-stage counter-current rinse, sieving and separation, dehydration and abstraction as well as elimination of solid-form substances and impurities.

5. Disc separator

Disc separator is mainly used in the starch production that coming from maize, manioc, wheat, potatoes or other material sources for separating, concentrating and washing of starch and protein. The machine can also be applicable to the pharmaceutical, chemical and food industries for producing of material sources which are adapted to the functions of this machine.

6. Belt Vacuum Filter

Belt Vacuum Filter is extensively used in starch, medicine food stuff, chemistry, metallurgy, mineral industry, etc for solid and liquid separation, for dehydration and separation of solids from liquids of material with small grain, not easy to precipitate and being sticky.

7. Peeler centrifuge

Peeler centrifuge can continuously work and intermittently filter. It is either automatic control or manual control.

8. GDS Series high effective starch sifter

--long sieving road, big dressing area,

--smaller occupying space,

--high efficiency, big output,

--lower noise, saving power, stable running and easy maintenance.
