Economic Glucose Sugar Plant

A team working at site for the guidance of installing, commission works.

Technical Feature

  • Tianjin, China (Mainland)
  • MecKey
  • MKGL
  • Grain Processing Equipment
  • Engineers available to service machinery overseas
  • Glucose Sugar Plant
Send Project Inquiry Add Inquiry List

0 Add Favorite

DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

Place of Origin
Tianjin, China (Mainland)
Brand Name
MecKey
Model Number
MKGL
Type
Grain Processing Equipment
After-sales Service Provided
Engineers available to service machinery overseas
Project
Glucose Sugar Plant
Process
Double Enzyme Method
Control
Automatic/Semi-automatic/Manual
Installation Time
2-4 months
Delivery Time
3-4 months
Finished Project Qty.
26 pcs
ROI
1.8-2.8 years
Construction Area
800 to 3200 square meter
Worker Qty.
10-12 persions per shift
More Info
Special design based on customer's requirement

DETAIL DESCRIPTION

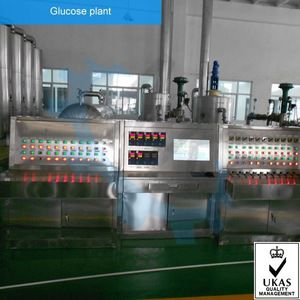

Glucose Sugar  Plant,

Glucose syrups from Corn Starch!!!



PRODUCT CHARACTERISTICS



1)  Implementations of automation systems, computer 2D/3D modeling and advanced

    CAD/CAM technology.



2)  Turn-key plants for the production of wheat starch, corn starch, potato starch and

    starch derivatives such as glucose, fructose, crystallized glucose, sorbitol,

    etc.



3)  Professional engineers with ample on-the-job training experience.



4)  A team working at site for the guidance of installing, commission works.



5)  Low water and low energy consumption design to save your money.



6)  Equipments are made of stainless steel, one year warranty, life-long maintenance.



PROCESS FLOW BLACK DIAGRAM



Product Parameter:

Appearance

Clear viscous liquid

Color

Colorness or slighty yellow

Dry solid

75%,80%,82%,84%

DE Value

38—60

PH Value

4.6—6.0

Coliform Bacteria(mpn/100g)

30 (max)

Sulfate Ash(mg/kg)

0.5 (max)

Salmonella

Not detected

AS(ppm)

0.5 (max)

PB(ppm)

0.5 (max)



 COOPERATION WITH CLIENTS



Visiting Factory



Testing Product



Techinical Supporting



Construction Site



Turn Key Project



PROCESSING EQUIPMENT DISPLAY


Evaporator
Multiple-effect film-falling evaporator concentrates the solution by means of vaporizing the thin
solution through film-falling principle. It introduces continuous production and it features in high
concentration ratio, large viscosity scope, good heat-transferring effect, large processing capacity,
etc. In this case, it can be introduced on vaporizing materials which are of hight heat sensibility,
high concentration, high viscosity, and corrosive characteristics. This equipment is of higher
heat-transferring ratio, so the heat difference requested is small. It can be combined into double,
triple, quadruple, or quintuple, or quintuple-effect evaporating system on the basis of different
materials characteristics and evaporating results.
In addition, it can be used as waste-heat evaporator with the resources of waste steam from bundle
dryer, disc dryer or other heat resources with low thermal value such as condensate steam. In this
way, raw steam consumption can be greatly reduced for energy saving. It is economically beneficial
when waster steam can be completely used and raw steam is saved.

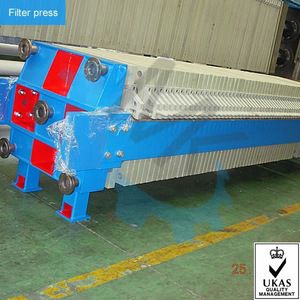

Filter Press

This filter press is a kind of intermittent pressure- adding percolation equipment which can be used for almost all kinds of solid-liquid separation. It is widely used in petroleum, chemical engineering, dyestuff, medicine, foodstuff, papermaking, waste water treatment and so on.

It has following advantage:

Advanced structure design considering of machinery, electricity and hydraulic in one machine.

Easy operation, simple maintaining.

All kinds of material of filtering plate are available such as plastic, rubber, enhanced polypropylene, stainless steel and cast iron.

High efficiency, ideal equipment for processing suspension.

.

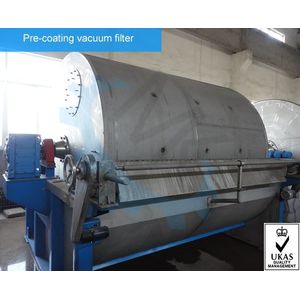

Pre-coating Vacuum Filter
The Pre-coating vacuum filter is made of stainless steel. It is suitable for the process which needs filtration
and doesn't need filter residue. It works as follows: At first,  on the surface of drum, a layer of pre-coat of filter aid like bergmeal or perlite should be formed evenly. Processing material is filtered into the bottom basin of the equipment. Under the function of vacuum, filter liquid goes through subsequently the pre-coat layer, filter cloth, imbibing tube, filter liquid collection pipe, and vapor liquid separator then enters into next processing section. Meanwhile the solid powder or

other foreign impurities in the material is counterchecked by the pre-coat then removed by movable peeler continuously. When the thickness of the residual pre-coat is less than 10mm, it needs pre-coating again.

Functional area of pre-coating rotary vacuum filter can be designed based on customers’ different requests, from 5m2 to 80m2 is available.


More info pls feel freely to contact with our team!



COMPANY PHILOSOPHY



C-Credit:     We promise only what we can do to do our customers and keep our promise.

E-Efficient: Our work is efficient based on our qualified staff and company’s standard working

                      process.

E-Exact:       We study your requirements and supply exact solutions to you.

S-Standard: We have standard systems to guarantee our activities to be complied with

                       international ones.



WE ARE WHERE YOU ARE



By choosing MecKey you are choosing the perfect long-term parter for your daily operation. Our

service network can reach you wherever you are.
