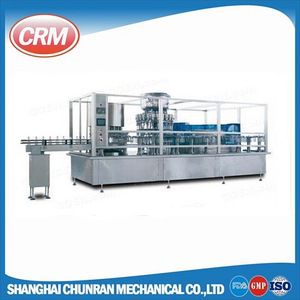

Pharmaceutical dextrose saline making machine / production line
This automatic dextrose saline making machine production line is made up of three parts: ionic wind washing (or with water), filling under stable pressure and heat sealing. It has auto bottle-lifting, bottle entering, ionic washing, bottle delivery, filling with fixed amount, bottle handing, bottle capping, air exhaust, sealing and other processes. It’s applied to washing ,filling and sealing of PP plastic bottles and soft bag IV solution.
B. Equipment features:
1. Washing, filling and sealing are closely connected, thus it occupies less space. It has simple installation, easy operation and high automation.
2. It can be widely applied to various shapes of round, flat plastic bottles and other IV solution bottles.
3. It adopts ionic wind washing without water. When there is trouble, it will alarm and control the whole production line.
4. The line adopts PLC programmable controller, which is powerful and complete in intelligence control.
5. It adopts unique CIP and SIP, which is time-saving for washing and effective in sterilization. Time ,pressure and temperature of CIP, SIP can be easily adjusted on the touch screen by operators according to products needs.
6. Parameter setting is protective. On operation, each parameter can be seen, modified and monitored on the touch screen, it’s easy to operate. For example, you can pre-set maximum and minimum temperature to avoid man-made error.
7. Various shapes of plastic bottles can run smoothly in this machine without replacing specifications, especially for soft bag production.
C. QCW Washing MachineTechnical parameters:
Bottle specification | 50~500ml plastic bottle |
Production capacity | 50~100 Bottle/min |
working head | 20 |
Washing head | 12 |
Motor power | 5 kw |
Water consumption | 0.4m3/h,0.15MPa |
Gas consumption | 35m3/h, 0.1MPa |
Machine net weight | 2200kg |
Machine dimension | 2200*1950*1500mm (L*W*H) |
D. QGF Filling Sealing MachineTechnical parameters:
Bottle specification | 100ml 250ml 500ml bottle |
Production capacity | 2400 - 4800 Bottle/min |
Filling head number | 16 |
Heat sealing number | 12 |
Bottle conveying belt seed | 0 - 20 meter/min |
Vibration plate diameter | ≤600mm |
Motor power | 4 kw |
Heat sealing power | 16 kw |
Gas consumption | 0.6MPa 12 m3/hr |
Machine dimension | 2500*1670*1900mm (L*W*H) |
E. Machine main part:
1. Bottle handing Station

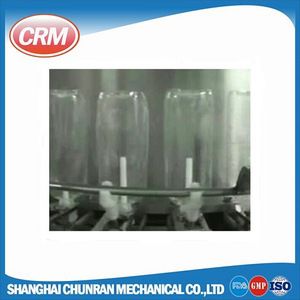

2. Bottle washing station
3. Bottle filling station
4. Cap handing station
5. Heat sealing or capping station
6. Bottle discharging station
Our company manufacturing site is located in the banks of Shipu Harbor of Ningbo City. It has been reputed as the famous Aquatic Product Center in East China. Founded in 1962, the company is a professional manufacturer for pharmaceutical equipment which has been designated by State Food & Pharmacy Bureau for pharmaceutical industry.
We are dedicated in manufacturing water system equipment and filling machines for pharmaceutical, cosmetic and food industries, and major products include multi effect distilled water machine, pure steam generator, reverse osmosis water purification plant, and liquid filling machine such as eye drop, e-liquid, ampoule and syrup filling machines We are a member of China Association for Pharmaceutical Equipment and has obtained IS0900l:2008 Quality System Certification.
Over the years, we have successfully opened international markets through selling water system equipment to customer all over the world, and have enjoyed high reputation in this regard thanks to our reliable product quality and professional service.
Our company has won numerous honor and awards including Superior Product Company in National Supervision & Selective Examination in 1996, and Reliable Water Distiller Design by China Pharmaceutical Supervision Bureau Tianjin Medicine-Making Machinery Test Center in 2006.
Quality First & Service Best have been and will be our sole goal to stay in the business forever.
