200L Glucose Liquid Batch Production Line

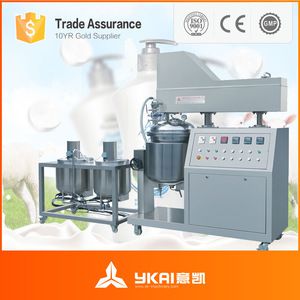

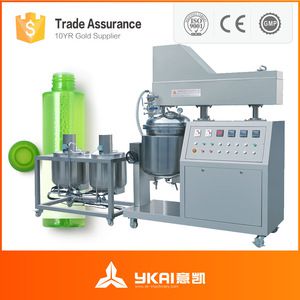

The important problem is scattered bigger diameter particle and infiltrating air into the product when mixing, expecially in the process of producing cream, ointment, emulsion series. Regarding to the two problems, our factory has developed ZJR Vacuum Emulsifying Mixer Series that the main systems are composed by homogenizer & Middle(Fixed) Stirrer & Scrapers residues stirrer, which causes the best mixing way to reach the best product.
Work Elements:

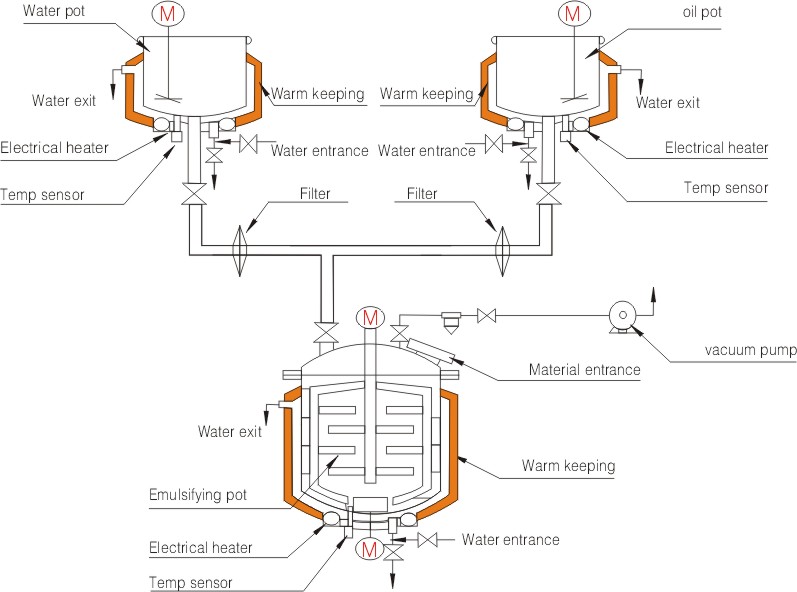

After the materials are heated & mixed in water pot and oil pot, they are drawn into emulsifying boiler by the vacuum pump. Adopting the middle stirrer & Teflon scrapers residues in emulsifying boiler that sweep the residues on the wall of the boiler makes the materials wiped off become the new interface constantly. Then they are cut off, compressed and fold by the blades to stir, mix and run to the homogenizer. By the strong cutting off, impact and turbulent current from the high-speed shear wheel and fixed cutting case, the materials are cut off in cut interstices and turn to particles of 200nm-2um promptly. Because the emulsifying boiler is under vacuum state, the bubble that produces in the course of mixing is taken away in time.
Features:

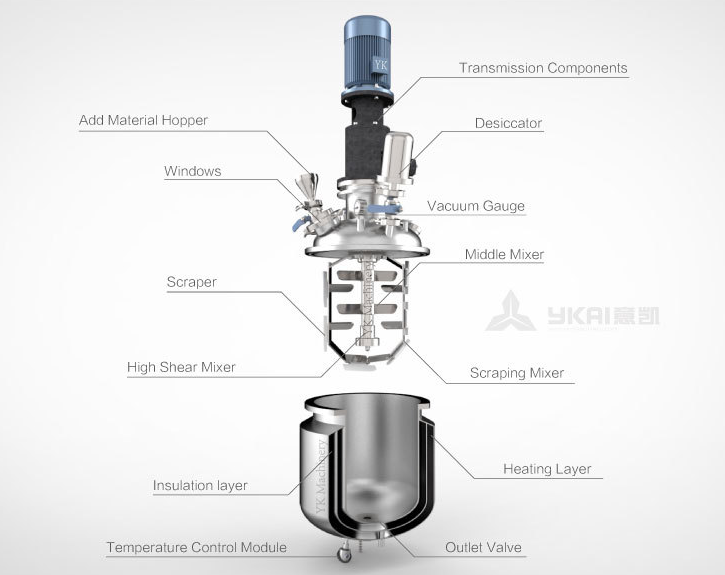

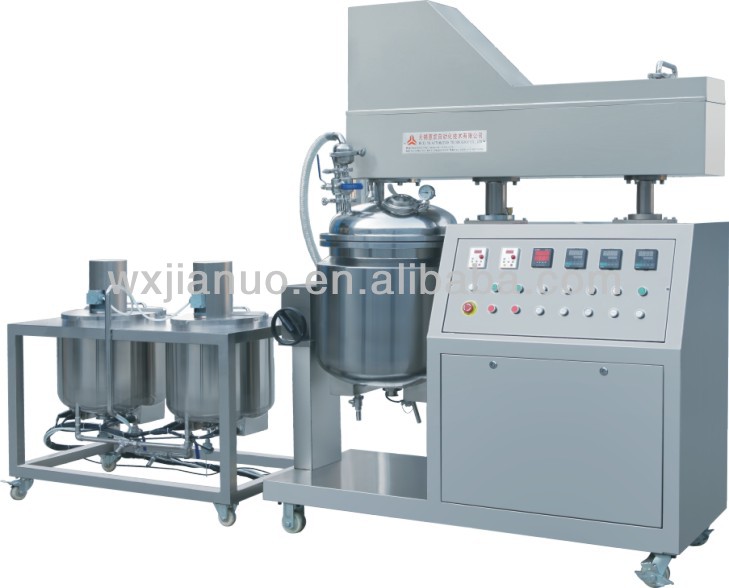

The pot cover is automatic rising type, the material is directly drawn into the emulsifying pot from oil pot and water pot based on a pipe that is under vacuum. The discharge is based on the turn the emulsifying pot. And the heating system is electric heating or steam heating that the temperature is automation controled. Put the cooling water into the jacket to cool the material, which is simply operated and safe. There is a heat preservation layer outside the jacket. The homogenizer and the blade stirring can work together or separately. The material will be sliming, emulsifying, mixing, dispersing, etc. in a short time. The parts Contact the product adopt high-quality stainless steel (medical usage adopt SS 316L. the interior surface is mirror polished, vacuum mixing device is hygiene. It's produced accroding to normal htgiene of GMP standard. It is the most ideal production equipment for cream and lotion.)
Name |
| ZJR-100 | ZJR-150 | ZJR-200 |
Emulsifying Pot | Design Volume(L) | 100 | 150 | 200 |
Working Capacity(L) | 80 | 120 | 160 | |
Scraper Stirring Power(KW) | 1.5 | 1.5 | 2.2 | |
Scraper Stirring Speed(rpm) | 0—86 | 0—86 | 0—65 | |
Homogenizer Power(KW) | 3 | 4 | 4 | |
Electrical Heating Power(KW) | 6 | 6 | 8 | |
Homogenizer Speed(rpm) | 2800 | 2800 | 2800 | |
Water Pot | Design Volume(L) | 60 | 100 | 120 |
Working Capacity(L) | 45 | 80 | 95 | |
Power(KW) | 0.55 | 0.55 | 0.75 | |
Speed(rpm) | 1400 | 1400 | 1400 | |
Electrical Heating Power(KW) | 4 | 6 | 8 | |
Oil Pot | Design Volume(L) | 45 | 75 | 100 |
Working Capacity(L) | 35 | 60 | 80 | |
Power(KW) | 0.55 | 0.55 | 0.75 | |
Speed(rpm) | 1400 | 1400 | 1400 | |
Electrical Heating Power(KW) | 4 | 6 | 8 | |
Dimension | Emulsifying (Length*width*height)mm | 1750*650*(2150-2850) | 1900*780*(2380-3000) | 1450*600*(2650-3500) |
Water Pot and Oil Pot (Length*width*height)mm | 1220*610*1300 | 1170*710*1500 | 1550*820*1520 |
Why do you choose us?
- Select spare parts with high quality and well-known brands only.
- We are approved by ISO, CE, GS and etc.
- One year warranty; perfect after-sales service for spare parts.
- Best prices with good quality and reliable performance
- Easy maintenance
- Our logo ODM or OEM
 | About YK > |
| R&D > | |
| Our Customers > | |
| Our Factory > | |
| Our Service > | |
| Our Suppliers > | |
| Honor & Certificates > | |
| Company TIMELINE > |
FAQ
1. Why your machine similar with other supplier?
We are an overseas-funded enterprise. We are manufacturer and had been in this industry for more than 17 years, with more than 9 years export experience. We design machines by ourselves with advanced technology. Appearance just a part of machine, Service and quality is more important than it.
2. I'm new in our industry, but I'm planning to setup a factory, What can I do?
We can suggest customer the most suitable machine according to their formula, Raw material. Manufacturing- Installation- Training- Maintenance- Technical Support. We can introduce you supplier of raw material, bottles, labels etc. We could take you to our customer's factory to learn how they produce. We could customize machines according to your real need, We could send our engineer to your factory to install machines and train your worker of Operation and maintenance. Any more requests. Just let us know.
3.What kind of machines can you supply to customer?
We could offer various kinds of machines and whole production line.
(1) Cream, paste Products,
- In cosmetic industry: face cream, body cream, washing cream,vaseline etc
- In food industry industry: sauce, ketchup, tomato paste, mayonnaise, mustard, chocolate etc
- In chemical industry:welding paste,ink, paint,pigment etc.
Production line for them: RO water treatment- vacuum emulsifying machine- storage tanks- filling machine-capping machine- labeling machine- conveyor belt- inkjet printer- sealing machine-shrinking machine etc
(2) Liquid products
shampoo, lotion, liquid soap, detergent,juice,solution etc.
Production line for them: RO water treatment - liquid wash mixer- - storage tanks- filling machine-capping machine- labeling machine- conveyor belt- inkjet printer- sealing machine-shrinking machine etc
(3) Make-up products:
Lipstick, lip gloss, nail polish, marscara etc
Machines for them: homogenizer mixer, colliod mill, lipstick filling machine, frezzing machine etc
(4) Adhesive products:
Instant glue, AB glue, silica gel, anaerobic adhesive,silicon, sealing etc.
Machines for them: double planet mixer, ribbon blender, tube filling and sealing machine, hydraulic distributing machine, cartridge filling machine etc
......................................................................................................................................................................................................
Packing & Shipping
Packaging:
packing by wooden case usually, we also do other packaging as per customer's requirement.
Shipping:
- European Countries: 22-28 days
- United States: East --13-16 days, West--21-28 days
- Brazil: 30-40 days
- Russia: 36 days
- Asia Countries: 3-5days
Introduced here is just a small part of the product function,
If you are interested, do not hesitate to contact us.
We will be sure to make you satisfied!!!
↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓
