Brief Description
Starch sweeteners are made from starch by hydrolysis with acid or enzyme. The obtained liquid products including maltose, glucose syrup, fructose syrup; the solid products including monohydrate dextrose, anhydrous dextrose, crystal fructose, maltodextrin, etc.
All products are mainly used as a sweetener in food industry. Glucose and maltose can be further processed to sorbitol and maltitol by hydrogenation, which are used in the food and toothpaste to prevent dental caries.
The maltodextrin is the key ingredient in confection. Because of its high stickness, it can improve the viscosity and taste. As filling ingredient and viscosity increaser, it is used in various beverage, frozen dessert, instant cooling drinks.
High fructose syrup (also called glucose-fructose, isoglucose and glucose-fructose syrup) is used worldwide as a sweetener as it is easier to be handled than granulated sugar.
Process Groups & Flow Diagram

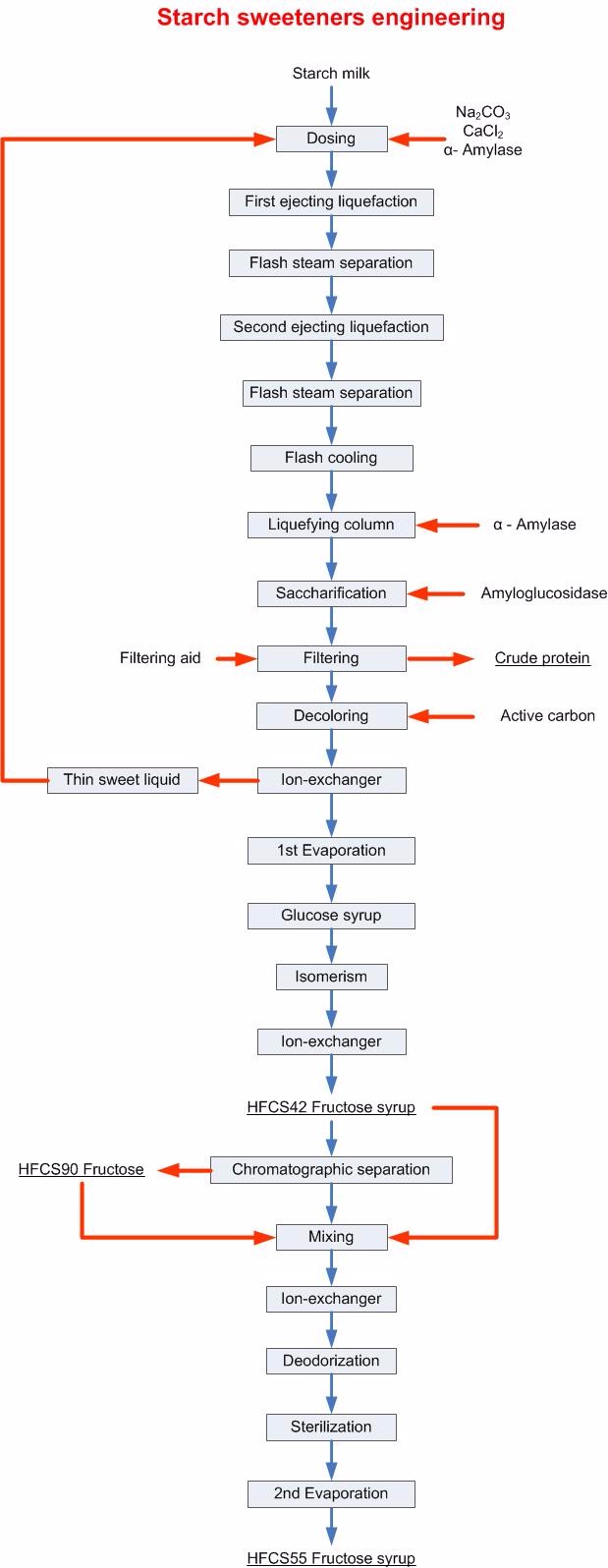

1. Process groups for Glucose/Fructose production line:
- Liquefaction section
- Saccharification section
- Filtering section
- Decolouring section
- Ion-change section
- 1st Evaporation section
- Isomerization section
- Concentration(For F42)
- Chromatographic separation
- Deodorization
- 2nd Evaporation section (For F55)

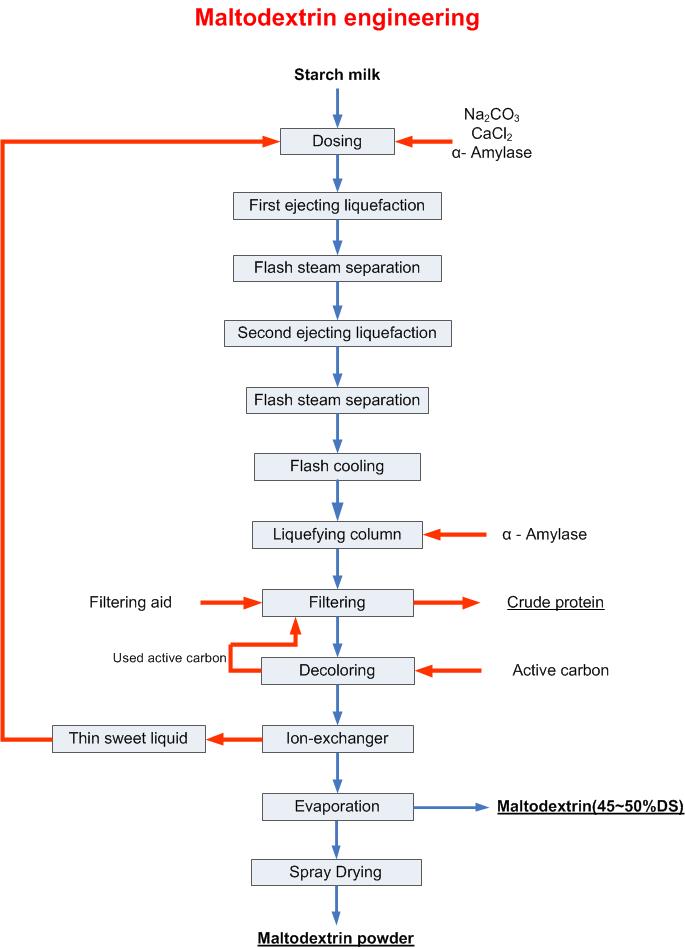

2. Process Groups for Maltodextrin production line:
- Liquefaction section
- Filtering section
- Decolouring section
- Ion-change section
- Evaporation section
- Spray drying section
Product Standard for Reference
-- Glucose
Item | Index | Unit | Parameters |
1 | Concentration | w/w | 60%DS |
2 | DE | % | 98 |
3 | Transmittance | % | 90 |
4 | PH |
| 4.0-4.6 |
5 | Sense |
| Colorless and transparent, slightly yellow |
-- High fructose corn syrup
| Fructose 42% | Fructose 55% |
DS | 71% | 77% |
Moisture | 29% | 23% |
PH | 4.0-4.5 | 4.0-4.5 |
RBU | 5 | 5 |
Fructose Assay | 42% | 55% |
Dextrose | 52% | 42% |
Fe | 1 ppm | 1 ppm |
Cu | 0.05 ppm | 0.05 ppm |
Pb |
| max. 0.5mg/kg |
As |
| max. 0.5mg/kg |
-- Maltodextrin
Item | Value | Note |
Sensory Index | ||
Appearance | colorless, clear, transparent, without impurities observed with eyes |
|
Odor & taste | without foul smell, mild sweet, without unpleasant taste |
|
Physicochemical index | ||
DE | ≤11,>11 & ≤16,>16 & ≤20 |
|
Dry substance content | ≥94% | varied by the market situation |
Solubility | ≥98% |
|
PH | 4.5~6.5 |
|
Sulphated acid ash | 0.5% |
|
Iodine test | no blue reaction |
Features
- The processing line use typical “continuous ejecting liquefaction” and “double enzymes hydrolysis” technology;
- All selected equipments are effective and productive, which have experienced during long term testing and running in practice, performance of the equipments reached international advanced level;
- High efficiency and low emissions, energy-saving, water-saving, labor-saving to reduces operating costs;
- Control system is reliable, capable and stable, continuous production of quality products, clients can customize different auto level from semi-automatic to full automatic control system.
Our services
- Service before sales: helps client to find technical solutions, assist on engineering design;
- Service during project construction: full technical support on installation, commissioning ,test running, training;
- Service after sales: helps on factory management & operation, well organized quick support for spare parts supply and maintenance.
