Product Description

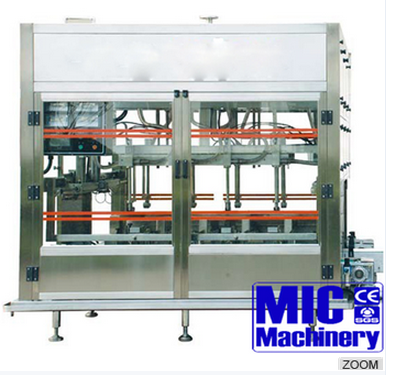

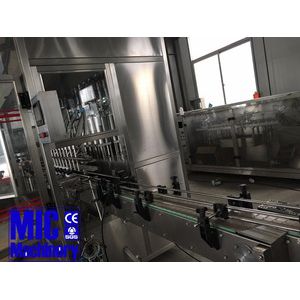

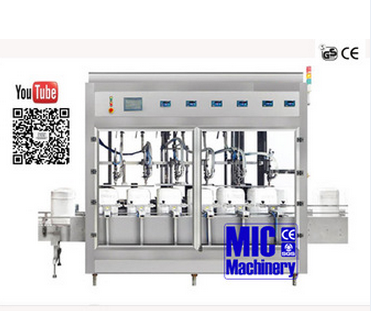

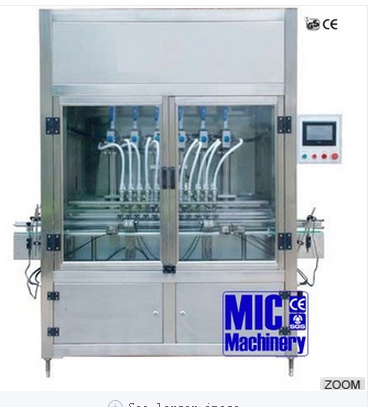

Micmachinery production line coconut oil bottle filling machine glucose bottle filling machine bottle filling plant
Product introduction :

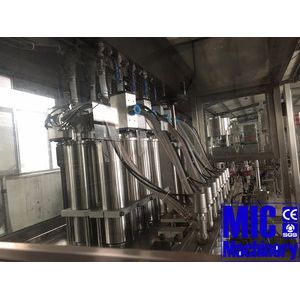

This machine adopt PLC touch screen Siemens control,It's adopt piston filling form. The filling nozzle material tank and touches liquid part material is USU304 Teflon and POM.And it have proteation device that machine will stop and alarm when lack of materials .
This machine adopt PLC touch screen Siemens control,It's adopt piston filling form. The filling nozzle material tank and touches liquid part material is USU304 Teflon and POM.And it have proteation device that machine will stop and alarm when lack of materials .

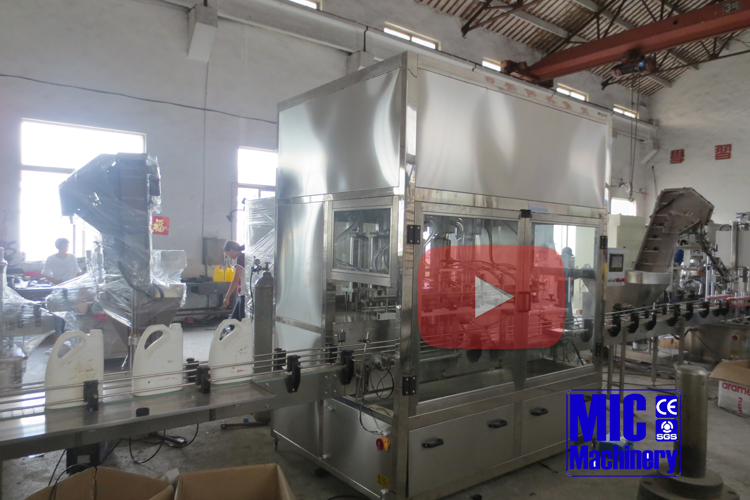

Video link : https://youtu.be/Vz2y07cNiac
| Some other model filling machine | ||
| Model | Capacity | Size |
| ZF-4 | 1000-1500BPH | 2440mm × 1480mm× 2610mm |
| ZF-6 | 1500-2000 | 2500mm × 1510mm× 2650mm |
| ZF-8 | 2000-3000BPH | 2530mm × 1530mm× 2650mm |
| ZF-10 | 3000-3500BPH | 2580mm × 1580mm× 2630mm |
| ZF-12 | 3500-4000BPH | 2630mm × 1600mm× 2630mm |
| ZF-16 -ZF20 | 4000-8000BPH | 2680mm × 1610mm× 2680mm |
| More capacity can be custom more nozzle filling machine |
Features:

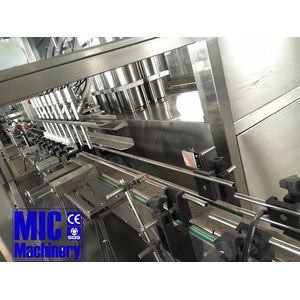

a.Can used for types of bottles,by adjusting the conveyor,filling head
b.High filling precision
c.adjustable filling speed.
d.Parts can be replaced easily
f.Easy to clean
Detailed Images
Machine material

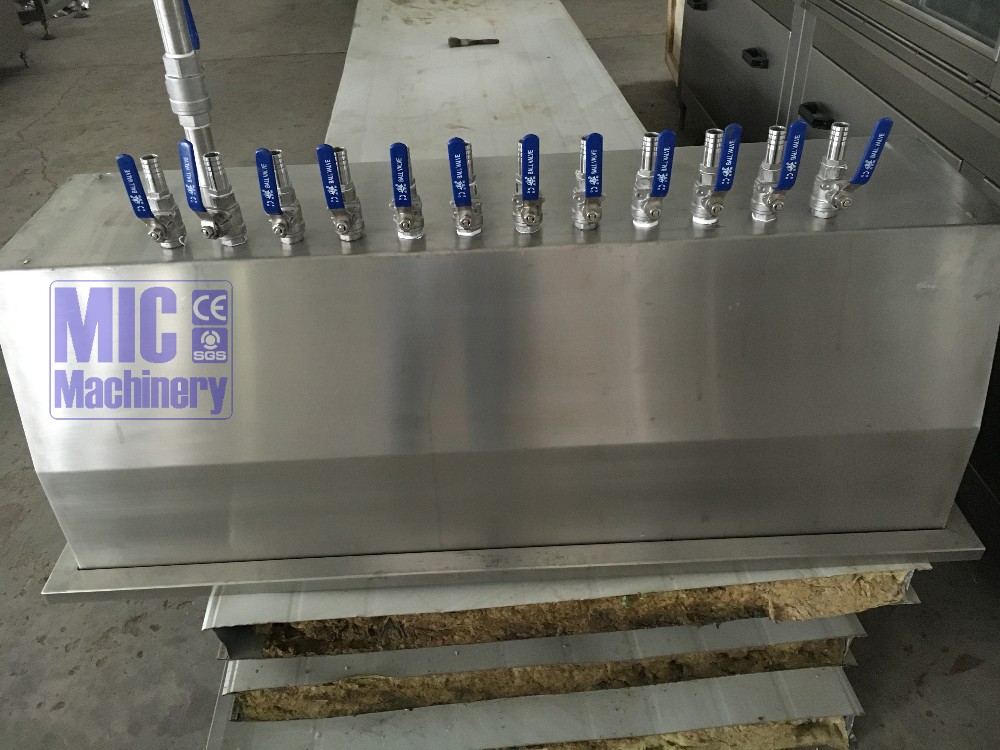

1.The material box is made of 316 high quality stainless steel, and has the ability of corrosion resistance.

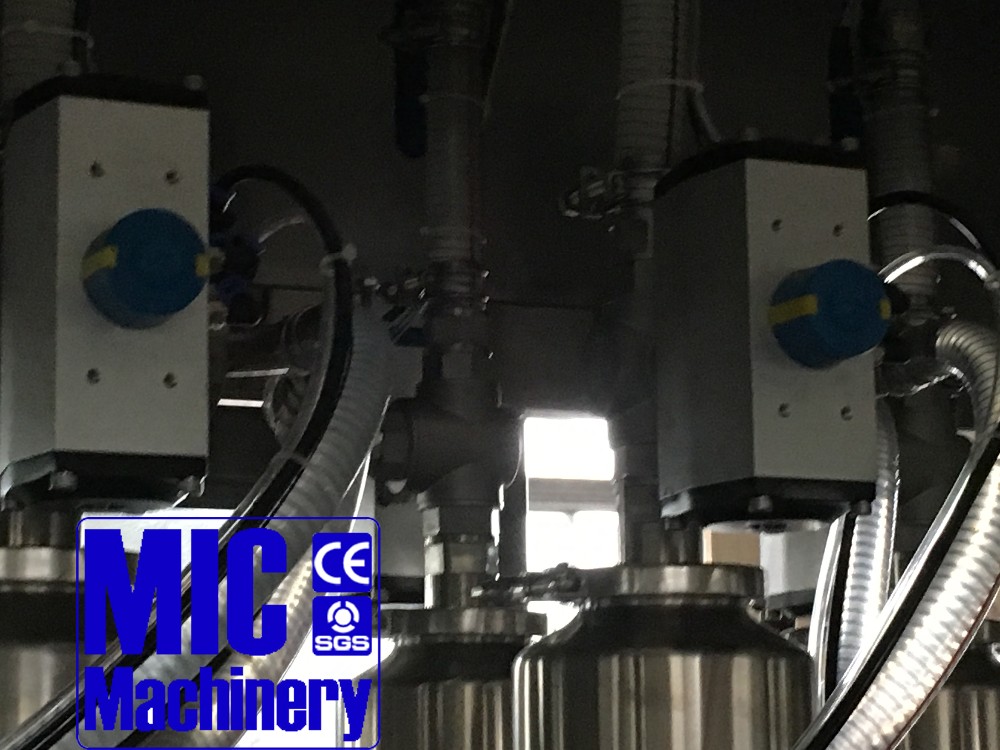

2.Ball valve is also used in the production of 316 high-quality stainless steel.
3.The design of the hopper is designed with the slope, which can be convenient for the customers to change the variety, which is convenient for cleaning and meets the requirements of GMP.
2.Ball valve is also used in the production of 316 high-quality stainless steel.
3.The design of the hopper is designed with the slope, which can be convenient for the customers to change the variety, which is convenient for cleaning and meets the requirements of GMP.

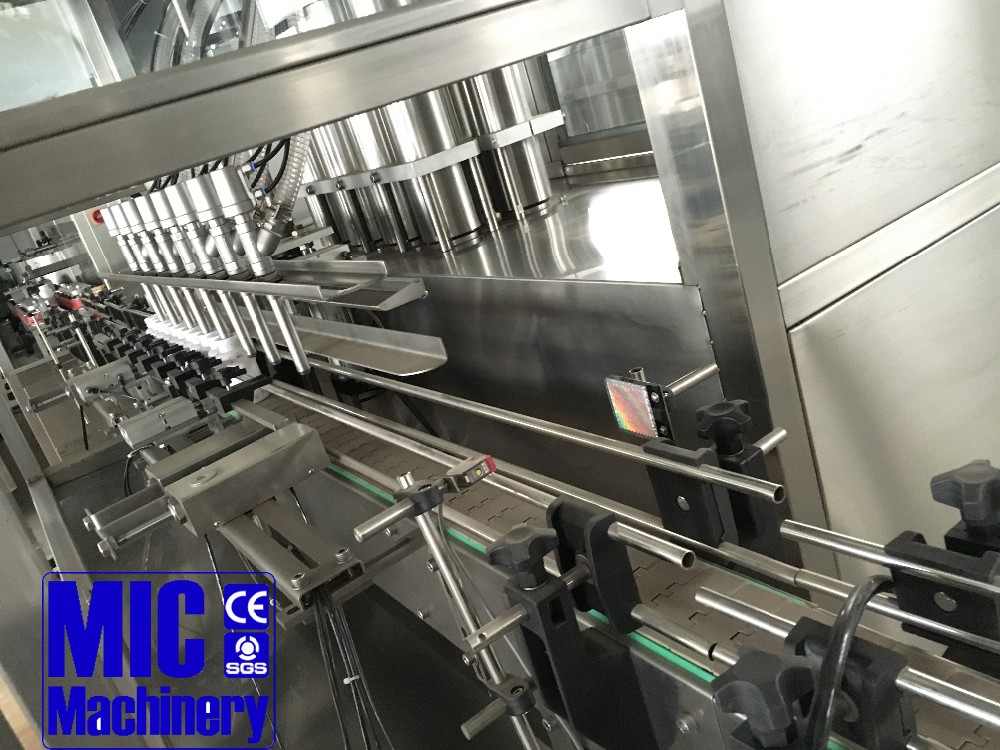

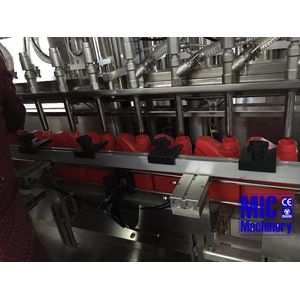

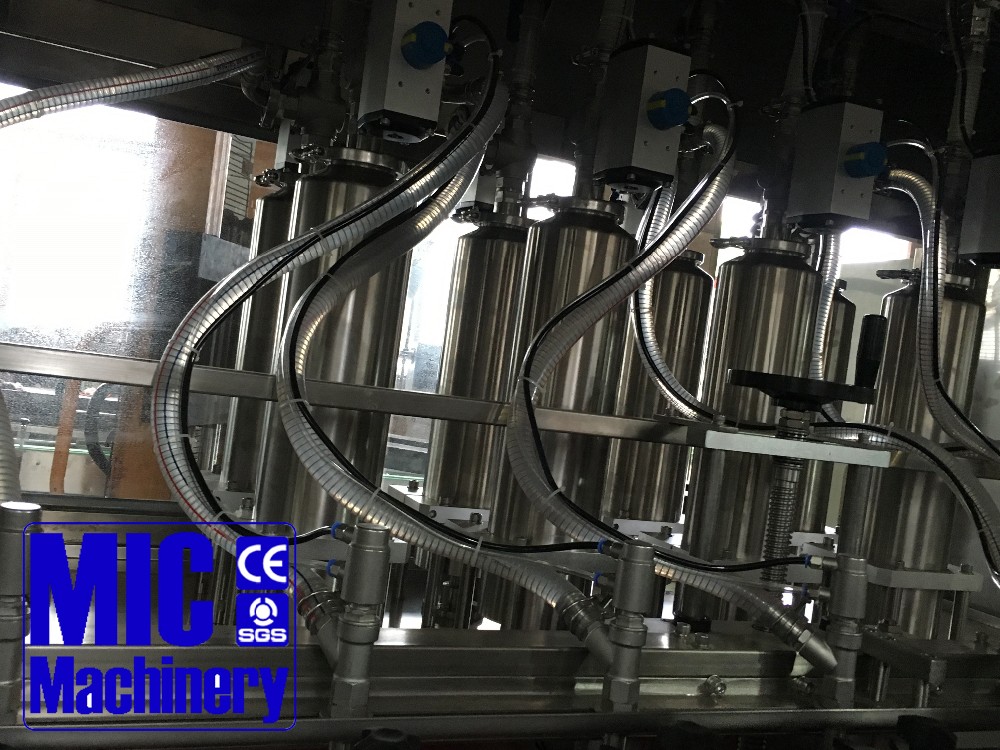

Filling pipe
1. A feeding tube with PTFE hose, with corrosion resistance.
2. The filling valve adopts imported brand, filling precision, no leakage.
Drive system

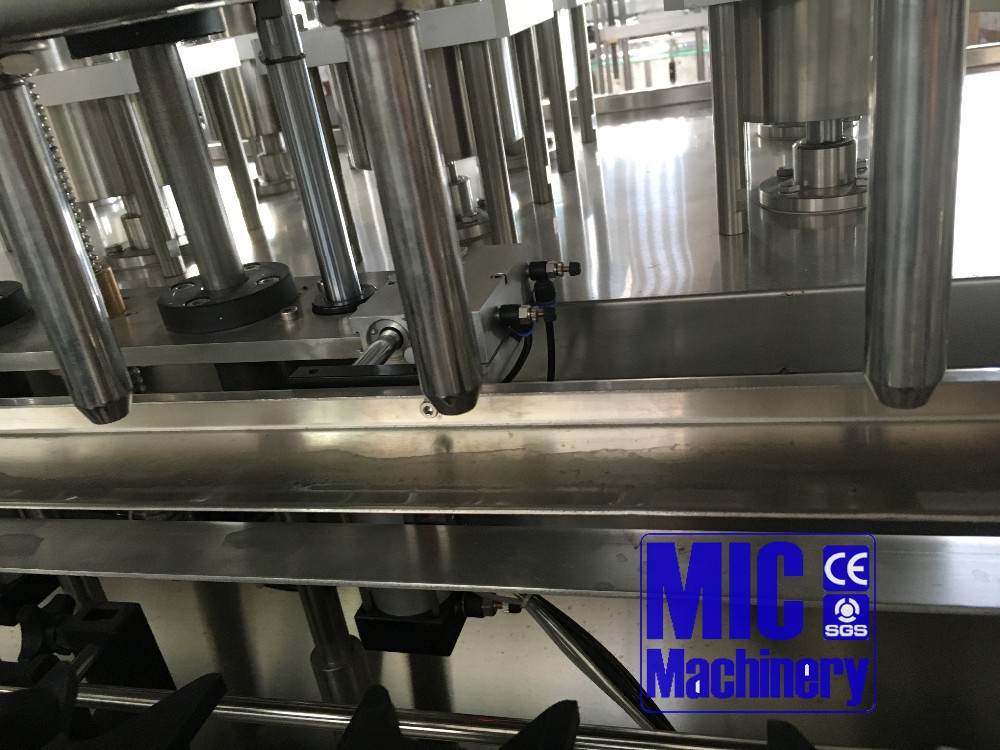

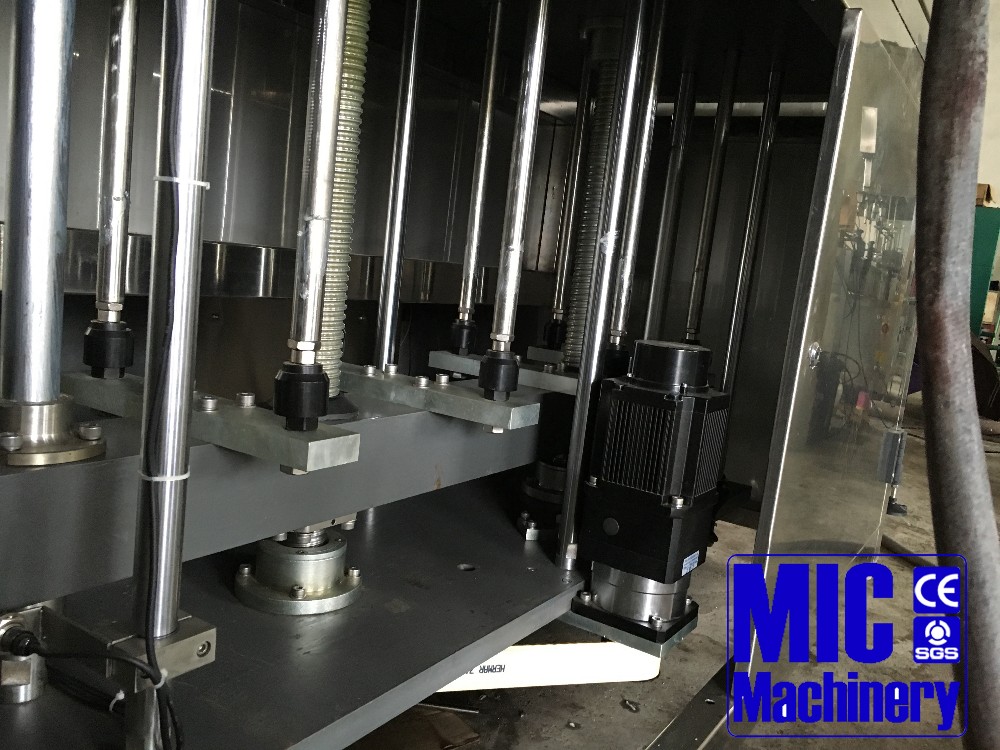

Using servo motor drive, double ball screw drive, to ensure the stability of the piston movement, high precision, from the surface to achieve accurate filling.
Gas source treatment
Use Taiwan Adyk.
More details show :

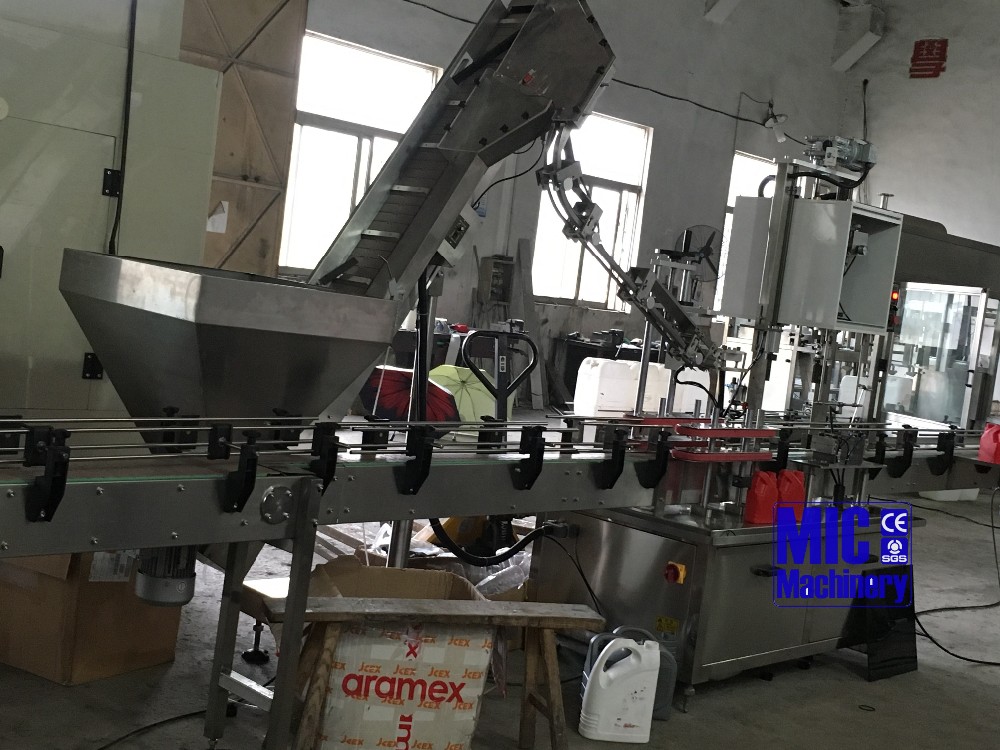

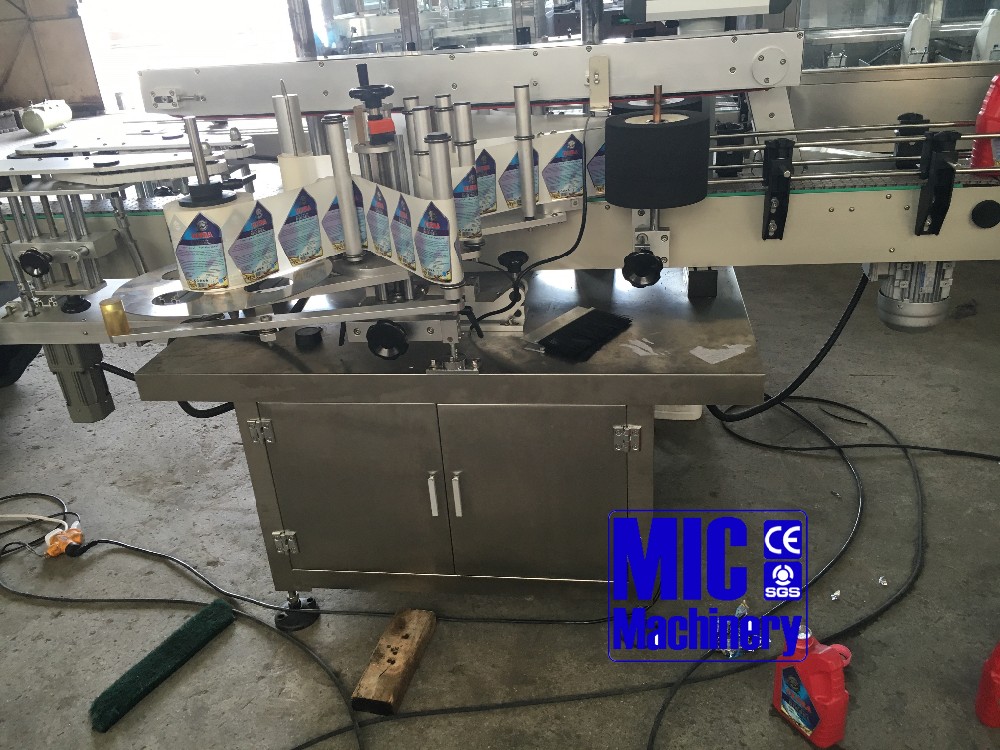

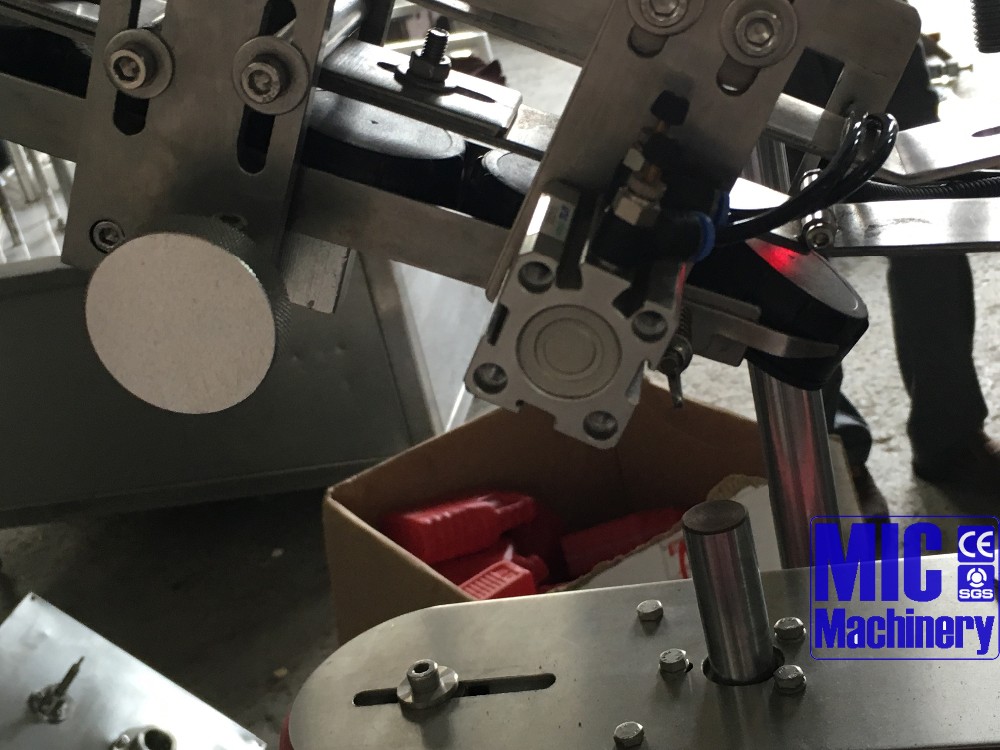

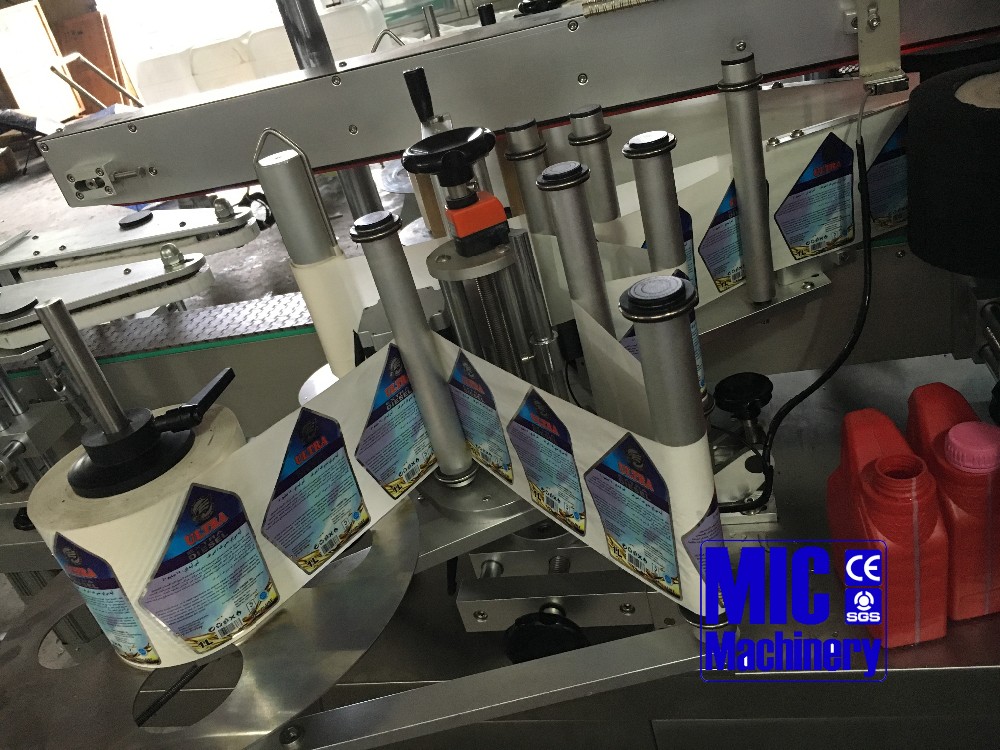

Capping and labeling machine

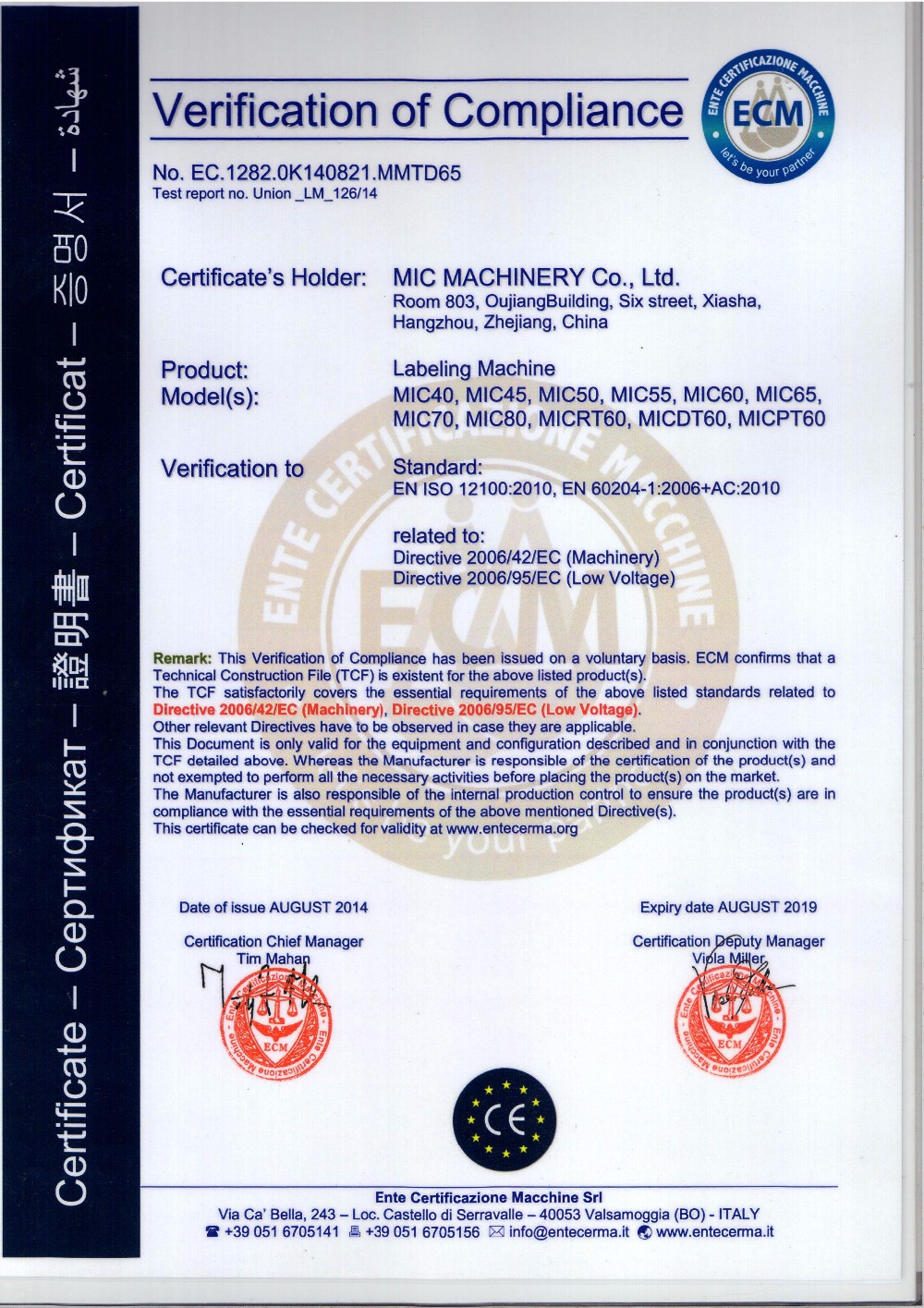

Certifications
Our Service
Pre-Sales Service
*One set of consumable accessories will be provided with the machine.
* Before delivery, we will adjust the machine to fit for your product.
* Before delivery, we will adjust the machine to fit for your product.
After-Sales Service
* Any question, you can mail/call us at any time. And our most experienced engineers is assigned to give consulting service, and always available for dispatching abroad.
* All spare parts are always available for delivery.
Packing & Delivery
| Packaging | |
| Size | 600*1500*2300mm |
| Weight | 800kg |

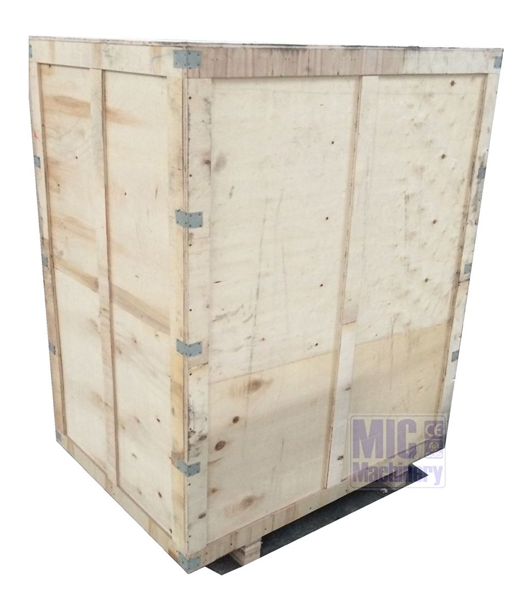

| Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
| Packaging | |
| Size | 600*1500*2300mm |
| Weight | 800kg |
| Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
