Product Description
glucose manufacturing plant for pharmaceutical
Description
- Vertical Ultrasonic Washing Machine
- Hot Air Circulation Sterilizing Tunel
- Ampoule Filling And Sealing Machine
Specifcaition
Product Filling Head | 6 Head | 8 Head | 10 Head | 12 Head | 16 Head |
Suitable Size | 2-30ml(vial) | ||||
Production Capacity(pcs/min) | 60-200 | 100-250 | 120-300 | 150-400 | 200-500 |
Power Supply | 380V 50HZ | ||||
Power Capacity(KW) | 90 | 92 | 108 | 108 | 115 |
Total Weight(KG) | 8800 | 9300 | 9900 | 10200 | 10800 |
Overall Size(mm) | 9700*2200*2450 | 9700*2200*2450 | 10850*2200*2450 | 10850*2200*2450 | 11770*2200*2450 |
Main Application

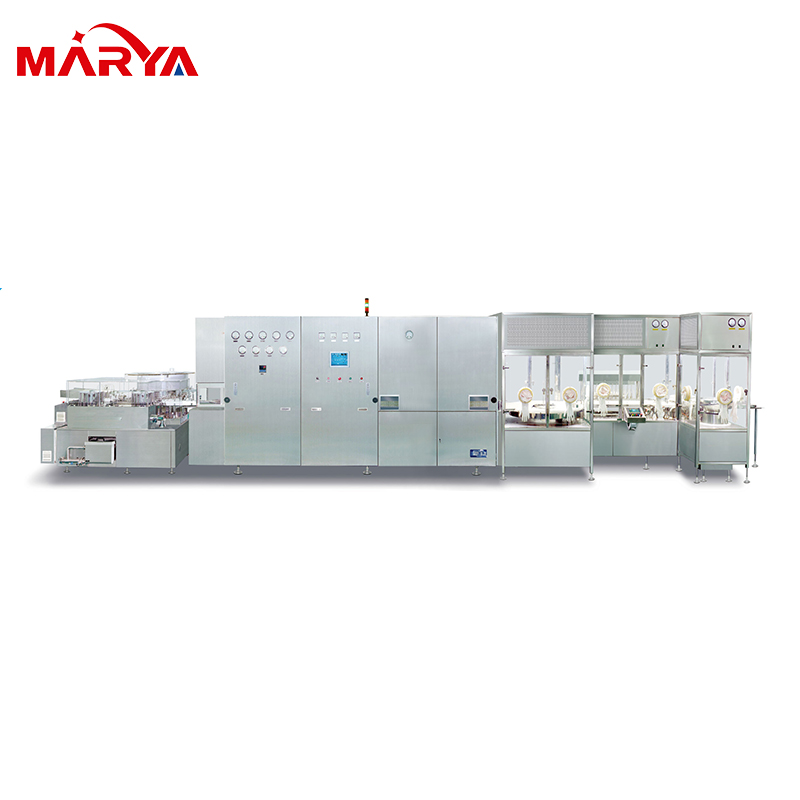

- The glucose manufacturing plant for pharmaceutical consists of this series vertical ultrasonic washing machine,this series hot air circulation sterilization tunnel,filling and sealing machine.The glucose manufacturing plant for pharmaceutical can be used in combination or in a single machine.The glucose manufacturing plant for pharmaceutical an complete water spray filling,ultrasonic cleaning and flushing(internal and external),CA flushing(internal and external),preheating,drying and sterilization to remove heat source,cooling,before and after netrogen,sealing after preheating,sealing and other processes.
- This glucose manufacturing plant for pharmaceutical can meet the size range from 2-30ml vials of washing,drying and sterilizing to remove heat source,filling and sealing requirements of the production process.
Feature

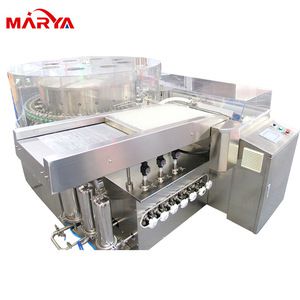

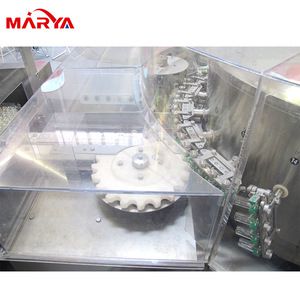

- Vertical ultrasonic washing machine of glucose manufacturing plant for pharmaceutical using ultrasonic rough washing,circulating water,WFI and clean compressed air spray and clean the container alternately.Cleaning clarity and visible material detection effect is ideal;it is the most popular cleaning machine in the world today.
- The sterilization tunnel of glucose manufacturing plant for pharmaceutical adopts the principle of hot air laminar flow and high temperature sterilization process to preheat,dry,sterilize,remove heat and sterilization process.It is the most popular drying and sterilizing machine in the world.

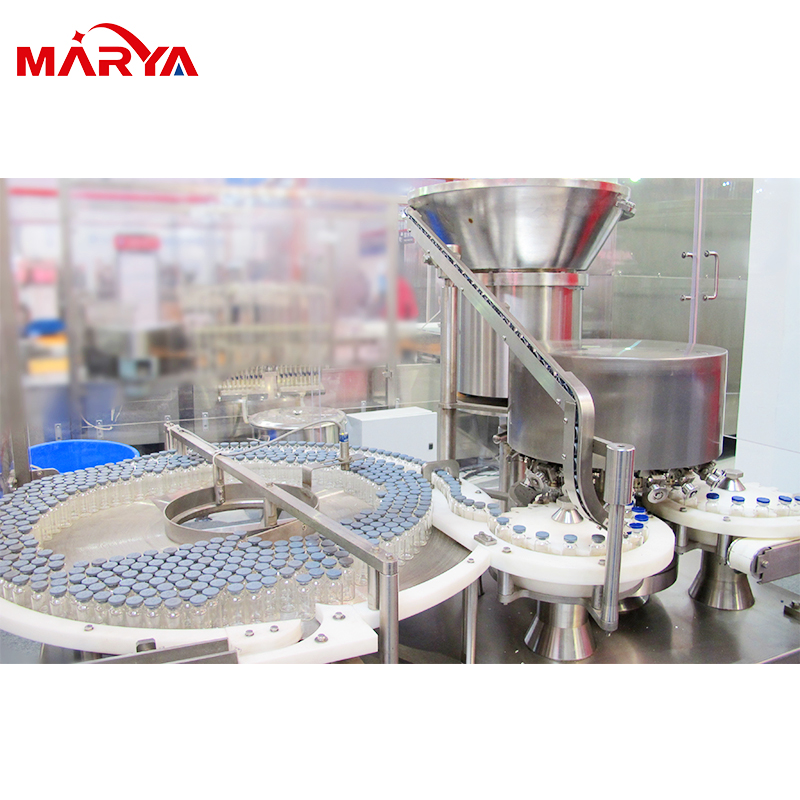

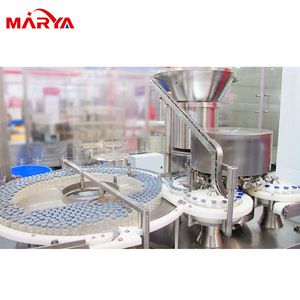

- The filling and stoppering machine of glucose manufacturing plant for pharmaceutical adopts V shape block to transfer and reciprocating tracking filling which can ensure stable vials transfer,full time of filling and accurate filling volume,using progressive stoppering way to ensure high qualification rate.It is the most popular filling and sealing machine in the world.
- The glucose manufacturing plant for pharmaceutical adopts PLC control and touch screen operation,which can be used for linkage control or stand-alone operation.The control runs stably and with high automation.
Company Information
Packaging & Shipping
Standard export wooden case packaging .
Inner package: Stretching film
Delivery time:30-60 working days after receiving 30% deposit or L/C
