Economic Advanced Starch Produce Liquid Glucose Making Plant

DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

Place of Origin

Tianjin, China (Mainland)

Brand Name

MecKey

Model Number

MKGL

Type

Grain Processing Equipment

After-sales Service Provided

Engineers available to service machinery overseas

Project

Starch Produce Liquid Glucose Making Plant

Raw material

Corn Starch

Control

Automatic/Semi-automatic/Manual

Installation Time

2-4 months

Delivery Time

3-4 months

Finished Project Qty.

26 pcs

ROI

1.8-2.8 years

Construction Area

800 to 3200 square meter

Worker Qty.

10-12 persions per shift

More Info

Special design based on customer's requirement

DETAIL DESCRIPTION

Starch Produce Liquid Glucose Making Plant,

Glucose syrups from Corn Starch!!!

PRODUCT CHARACTERISTICS

1) Implementations of automation systems, computer 2D/3D modeling and advanced

CAD/CAM technology.

2) Turn-key plants for the production of wheat starch, corn starch, potato starch and

starch derivatives such as glucose, fructose, crystallized glucose, sorbitol,

etc.

3) Professional engineers with ample on-the-job training experience.

4) A team working at site for the guidance of installing, commission works.

5) Low water and low energy consumption design to save your money.

6) Equipments are made of stainless steel, one year warranty, life-long maintenance.

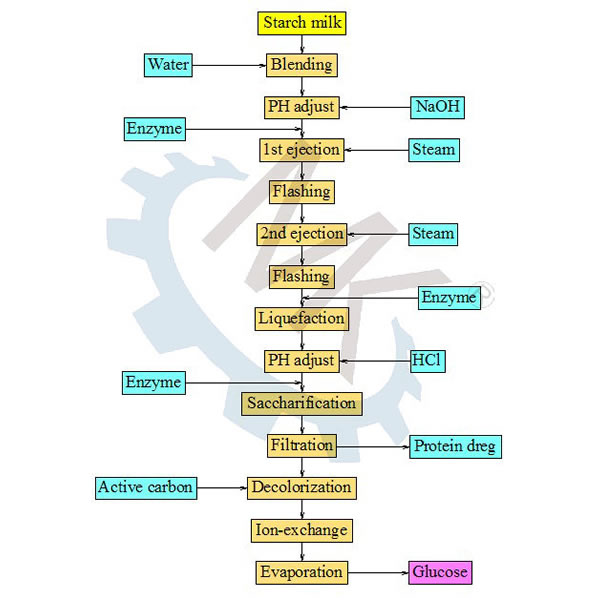

PROCESS FLOW BLACK DIAGRAM

Product Parameter:

Appearance	Clear viscous liquid
Color	Colorness or slighty yellow
Dry solid	75%,80%,82%,84%
DE Value	38—60
PH Value	4.6—6.0
Coliform Bacteria(mpn/100g)	30 (max)
Sulfate Ash(mg/kg)	0.5 (max)
Salmonella	Not detected
AS(ppm)	0.5 (max)
PB(ppm)	0.5 (max)

COOPERATION WITH CLIENTS

Visiting Factory

Testing Product

Technical Supporting

Construction Site

Turn Key Project

PROCESSING EQUIPMENT DISPLAY

Evaporator

Multiple-effect film-falling evaporator concentrates the solution by means of vaporizing the thin

solution through film-falling principle. It introduces continuous production and it features in high

concentration ratio, large viscosity scope, good heat-transferring effect, large processing capacity,

etc. In this case, it can be introduced on vaporizing materials which are of hight heat sensibility,

high concentration, high viscosity, and corrosive characteristics. This equipment is of higher

heat-transferring ratio, so the heat difference requested is small. It can be combined into double,

triple, quadruple, or quintuple, or quintuple-effect evaporating system on the basis of different

materials characteristics and evaporating results.
In addition, it can be used as waste-heat evaporator with the resources of waste steam from bundle

dryer, disc dryer or other heat resources with low thermal value such as condensate steam. In this

way, raw steam consumption can be greatly reduced for energy saving. It is economically beneficial

when waster steam can be completely used and raw steam is saved.

Filter Press

This filter press is a kind of intermittent pressure- adding percolation equipment which can be used for almost all kinds of solid-liquid separation. It is widely used in petroleum, chemical engineering, dyestuff, medicine, foodstuff, papermaking, waste water treatment and so on.

It has following advantage:

Advanced structure design considering of machinery, electricity and hydraulic in one machine.

Easy operation, simple maintaining.

All kinds of material of filtering plate are available such as plastic, rubber, enhanced polypropylene, stainless steel and cast iron.

High efficiency, ideal equipment for processing suspension.

Pre-coating Vacuum Filter

The Pre-coating vacuum filter is made of stainless steel. It is suitable for the process which needs filtration

and doesn't need filter residue. It works as follows: At first, on the surface of drum, a layer of pre-coat of filter aid like bergmeal or perlite should be formed evenly. Processing material is filtered into the bottom basin of the equipment. Under the function of vacuum, filter liquid goes through subsequently the pre-coat layer, filter cloth, imbibing tube, filter liquid collection pipe, and vapor liquid separator then enters into next processing section. Meanwhile the solid powder or

other foreign impurities in the material is counterchecked by the pre-coat then removed by movable peeler continuously. When the thickness of the residual pre-coat is less than 10mm, it needs pre-coating again.

Functional area of pre-coating rotary vacuum filter can be designed based on customers’ different requests, from 5m2 to 80m2 is available.

More info pls feel free to contact with our team!
