20ft flexitank/flexibag in 20gp container for sorbital

Every flexitank could place into the 20’GP container,with volume 14000-24000 liters.

Technical Feature

  • Food
  • 20" Container
  • China (Mainland)
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$160~320

PRIMARY PARAMETERS

DETAIL DESCRIPTION



1, Product description



Flexitank is a kind of new type soft packing vessel,used for storaging and transporting kinds of non-dangerous liquid goods.Every flexitank could place into the 20’GP container,with volume 14000-24000 liters.

During the process of transporting non-dangerous liquid,flexitank could be instead of expensive traditioal packing,such as tank box,metal bucket and so on.For one container,the volume of flexitank could reach 24000 liters,about 35% higher than in the cask vessel type of container,and it just need pay one-way freight,without returned freight and cleaning charge for empty cases.Flexitanks have significant advantage than cask vessel,with performance of economical and environmental,can avoid cross contaimination of goods effectively, largely reducing cost of loading and unloading,packing and material management;The flexitank conformto the requirments of environmental,food packaging,non-pullution from raw material,it is sepcially suitable for transportation by sea,railway and land carriage.

Because of comparing with traditional transportation packaging metho,the flexitanks have prominent advantages,so they get a wider range of application in the scope of chemical engineering, petroleum,food,fodder,agricultural products.

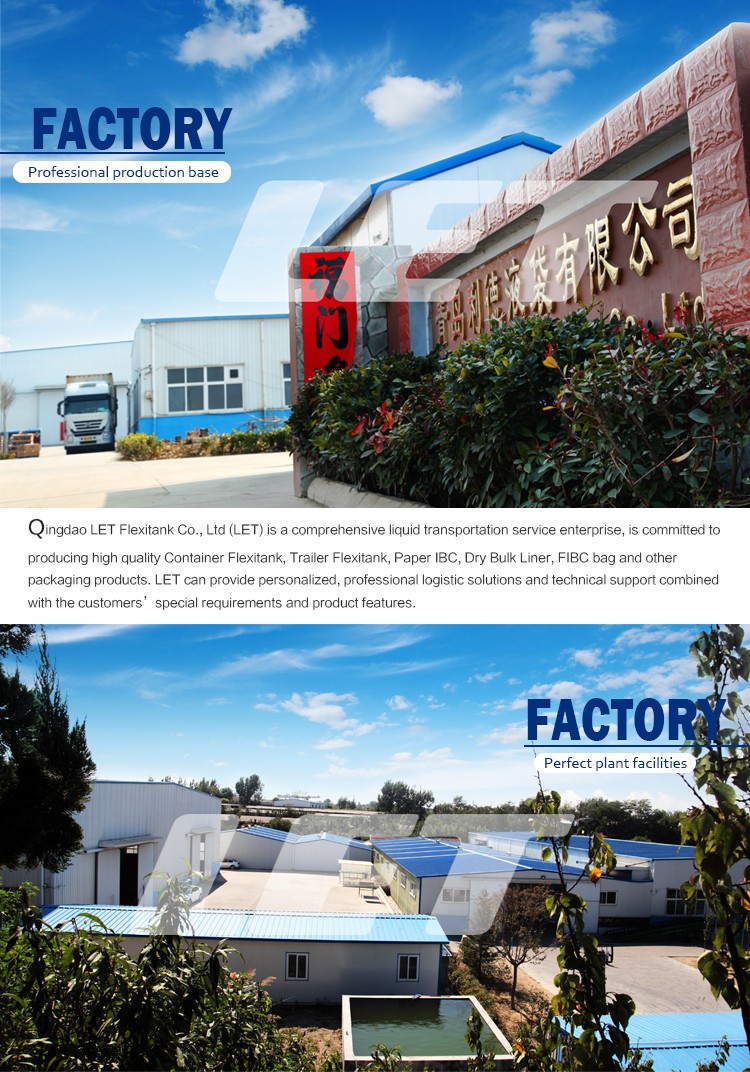

 2, Factory show



 3, LET Flexitank specifications:





           Type   component Capacity        PE         PP     per 20ft               container
Bottom Load&Bottom Discharge

1pc 3 inch Valve
4 layers of PE,

1 layer of PP

14,000L-24,000L125 Mic190G/m²68 sets
Top Load&Top Discharge

1pc 3 inch Valve
4 layers of PE,

1layer of PP

14,000L-24,000L125 Mic190G/m²68 sets
Top Load&Bottom Discharge

2 pc 3 inch Valve
4 layers of PE,

1 layer of PP

14,000L-24,000L125 Mic190G/m²68 sets

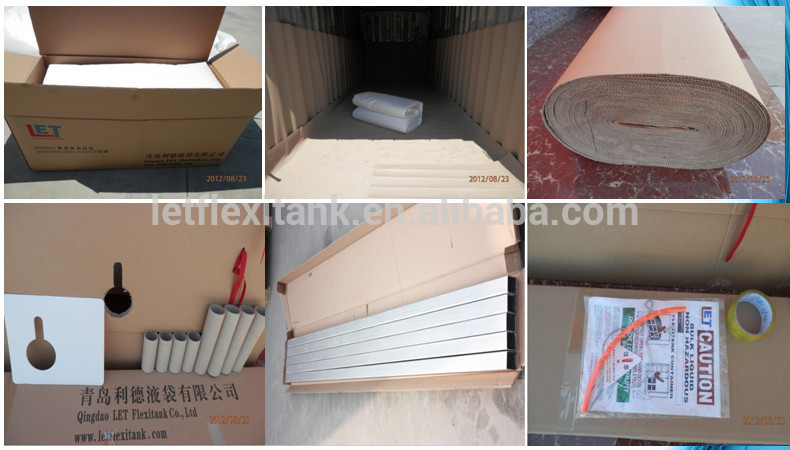

Accessories include: 1. Steel bar-5PCS, 2. Corrugated paper-1PC, 3. Bulk head-1PC, 4. Plastic holder
Certificates: COA membership,COA&AR rail impact test report,FDA,EC,KOSHER,ISO9001,

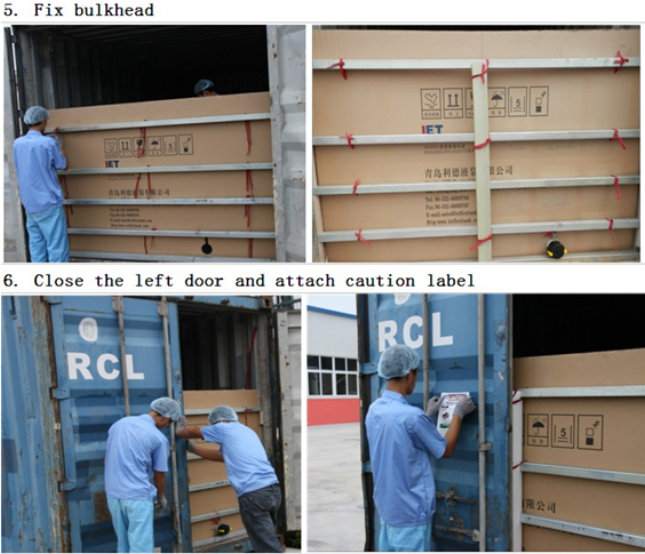

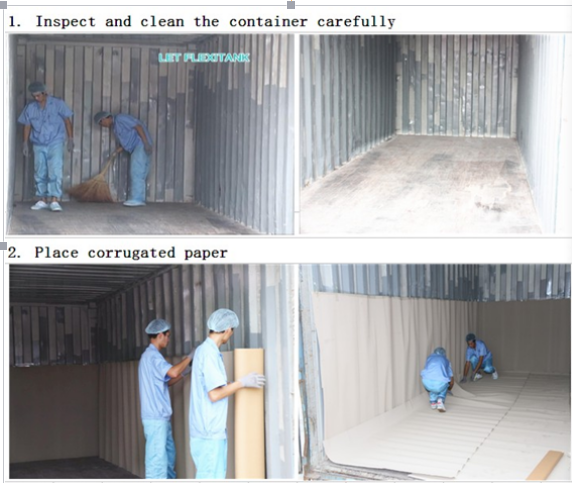

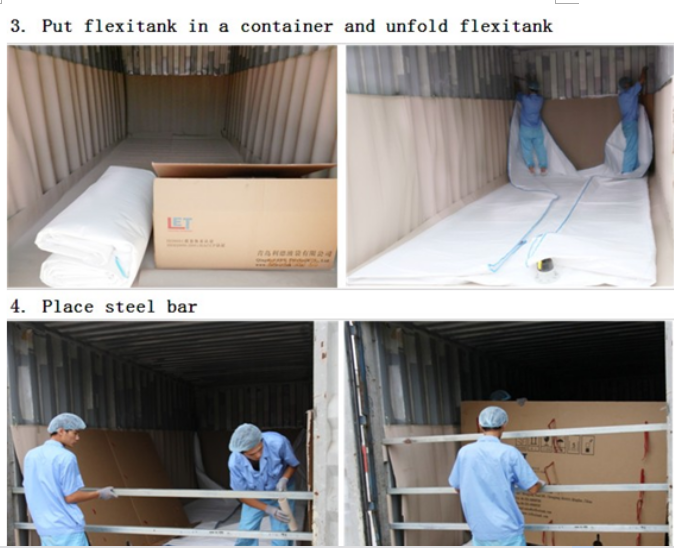

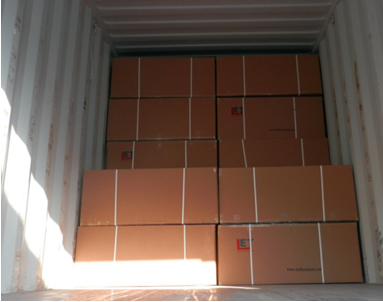

4, Install flexitank

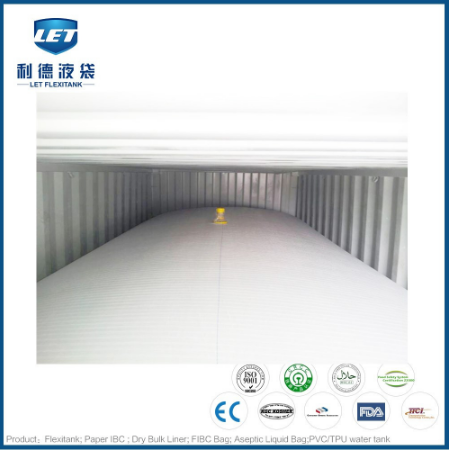

5, Product show



5, Certificates
