OEM is accepted

Free sample is available

Visit factory is welcomed

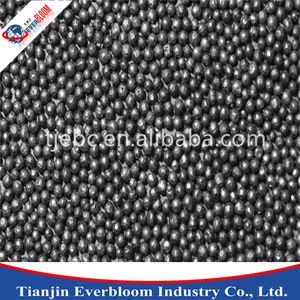

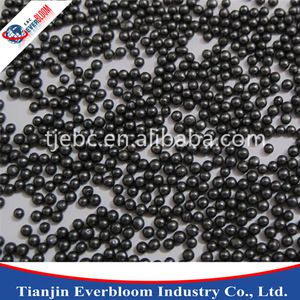

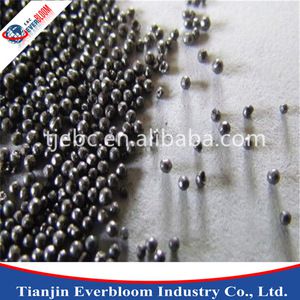

Features of CAST STEEL SHOT/ STEEL GRIT :

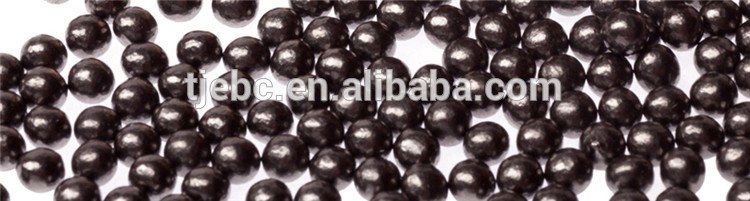

Name: Cast steel shot

Material: Alloy steel

Size:  0.2~2.5mm

Normal Hardness:42-52 HRC

Special Hardness:53-64 HRC

Durability:2800 times

 Model of steel shot:

GP10,GP12,GP14,GP16,GP18,GP25,GP40,GP50,GP80,GP120

GL10,GL12,GL14,GL16,GL18,GL25,GL40,GL50,GL80,GL120

GH10,GH12,GH14,GH16,GH18,GH25,GH40,GH50,GH80,GH120

Steel shot size:

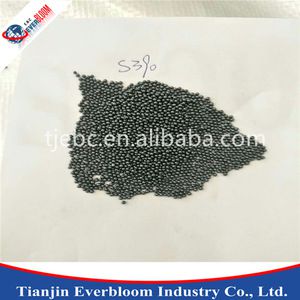

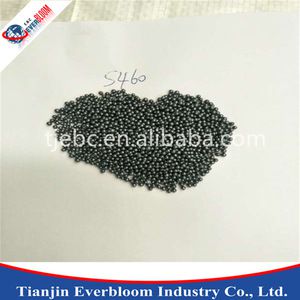

S780/SS2.5,S660/SS2.0,S550/SS1.7,S460/SS1.4,S390/SS1.2,S330/SS1.0,S280/SS0.8,S230/SS0.6, S170/SS0.5,S110/SS0.3,S70/SS0.2.

Standards for steel grit:

SAE J1993High Carbon Steel Grit,

ISO11124-3High Carbon Cast Steel Shot and Grit.

YB/T5150-1993 Cast Steel Grit,

SFSA20-66 Cast Steel Abrasive,

Specification for steel grit:

Steel Shot and Steel Grit Application Scope:

SS-2.5, SG2.5/SS-2.0, SG2.0

They are used for cleaning the surface rusting, oxide coasting of large cast steel, cast steel workpiece, steel structure workpiece and large forgings.

SS-1.7, SG1.7/SS-1.4, SG1.4

They are suitable for the rest removal and strengthening, surface treatment before spraying, stone cutting of large and medium castings, forgings, heat-treated workpieces, steel plate, steel tube and structure steel.

SS-1.2, SG1.2/SS-1.0, SG1.0

They are applied to the rust removal and strengthening, surface treatment before spraying, stone cutting of medium and small castings, forgings, heat-treated workpieces, steel plate, steel tube, and structure steel.

SS-0.8, SG1.0/SS-0.6, SG0.7

They are suitable for rust removal of small scale castings, forgings, heat-treated pieces, aluminum alloy steel castings, steel board, steel plate, steel pipe, surface intensification of springs and chains, cutting of rocks, griding processing.

SS-0.5, SG0.4/SS-0.3, SG0.3

They are suitable for rust removal of alloy castings, thin plates, strip steel , and small-sized stainless steel castings, spring strengthen, surface treatment before plating, improving roughness, enhancing adhensiveness.

Application Devices:

Steel shot mainly used for the following equipment including rotary barrel shot blasting machine, chain type shot blasting machine,pedrail type shot blasting machine,pass through shot blasting machine,table type shot blasting machine, Pendent chain & Pile type Shot Blasting Machine, trolley type shot blasting machine,abrator, abrator equipment,shot peening machine,shot peening equipment,sandblasting machine,sandblasting equipments,steel material pretreatment production line,steel plate pretreatment production line, steel structure pretreatment production line.

1.25Kgs per bag,40bags per plywood pallet.

2.25Kgs per bag,40bags per Carton.

3.1000Kgs per jumbo bag

steel shot microstructure : tempered martensite or sorbite
