Introduction to stainless steel sheets, stainless steel coils, stainless steel plates, stainless steel strips:
1. Specification of Stainless Steel Products by our own mills
Specification of Stainless Steel Products, we're also the agent for state-owned mills, such as Baosteel, Tisco and Ansteel.
2.Introduction to grade 316/316L stainless steel
Austenitic stainless steel with excellent corrosion resistance and elevated temperature strength by adding Mo, nonmagnetic
Application:Equipment for food, paper, DYES, Acetic acid, fertilizer, petrochemical and the installations along the sea coast.
C Mn Ni Cr Mo%
<0.08 <2.0 10.0-14.0 16.0-18.0 2.0-3.0
Y.S. T.S. EL Hardness
>205 >520 >40 <90(HRB)
316L
A low carbon type of 316, excellent resistance to inter-granular in more corrosive environment
Application: widely used in corrosion-susceptible environment and some mechanical components those are difficult to make heat treatment after forming in more corrosive environment.
C Mn Ni Cr Mo%
<0.03 <2.0 12.0-15.0 16.0-18.0 2.0-3.0
Y.S. T.S. EL Hardness
>175 >480 >40 <90(HRB)
Grade 316/316L has A higher level of resistance to corrosion than Type 304
Type 316 is also austenitic, non-magnetic, and thermally nonhardenable stainless steel like Type 304.
nickel content is increased slightly.
1,The addition of molybdenum up to a maximum of 3%. To withstand attack by many industrial chemicals and solvents
2,Sharply increasing its corrosion resistance to chlorides and sulfates especially various sulfurous acids in the pulp industry
3,Molybdenum helps reduce hardness and increase tensile strength at higher temperatures.
By virtue of the molybdenum addition, Type 316 can withstand corrosive attack by sodium and calcium, brines, hypochloritesolutions, phosphoric acid;
specified for industrial equipment that handles the corrosive process chemicals used to produce inks, rayons, photographic chemicals, paper, textiles, bleaches, and rubber
also used extensively for surgical implants
3. Grade SUS316 MIll test certificate, Grade 316L quality certifcate, Grade 316L Inspection certificate:

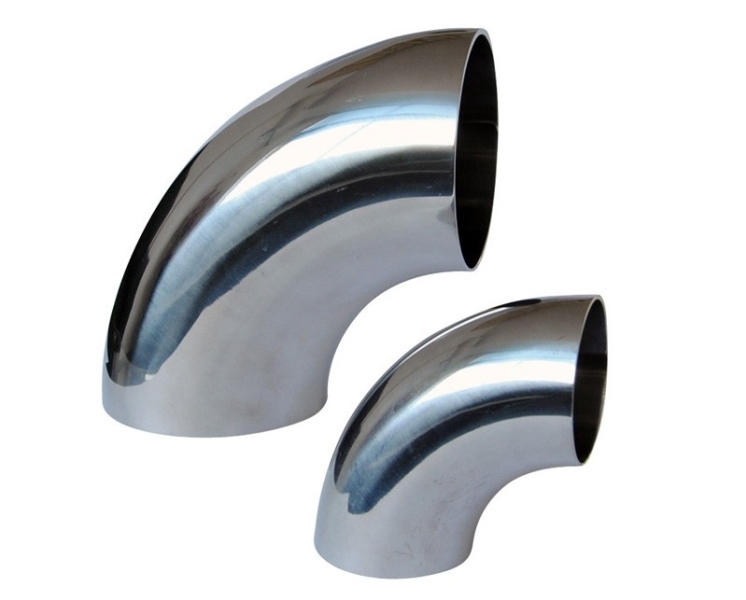

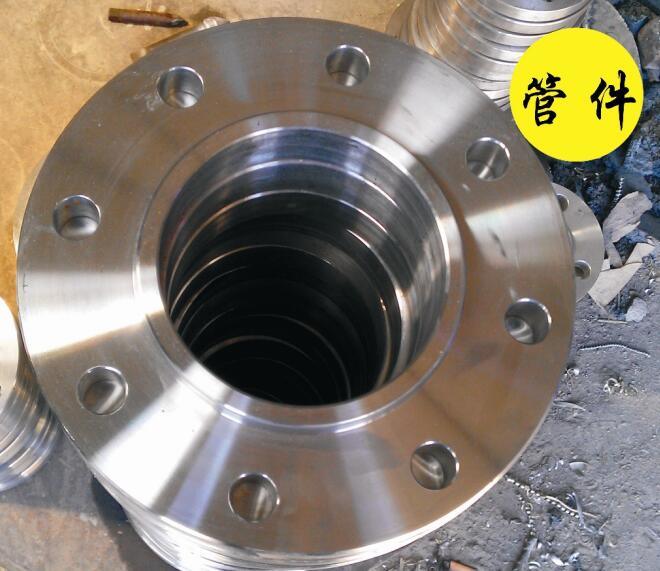

4. Stainless steel products:
Stainless steel doors
Stainless steel cutting tool
Stainless steel heat exchanger
Stainless steel kitchen wares

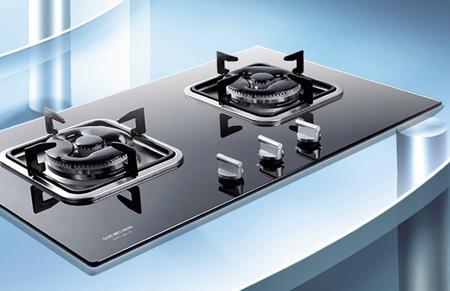

stainless steel gas stoves
stainless steel handrails
stainless steel water tank
Stainless steel sinks
stainless steel automotive parts
stainless steel exhaust pipes

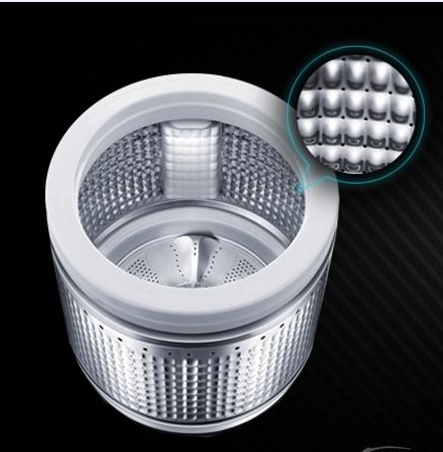

stainless steel home applicances
1. Specification of Stainless Steel Products by our own mills
| Grade | 201 J1, J3, J4, 201 AOD, 201 DDQ, 304 / 304L / 304LH / 304J1 |
| Type | Hot rolled Coil / Plate / Strip, Cold Rolled Coil / strip / Sheet |
| Thickness | Cold Rolled: 0.15mm - 1.8 mm; Hot Rolled: 2.3-5.0mm |
| Width | 10.0mm - 460mm, 485mm, 510mm, 550mm, 560mm, 590mm, 610mm, 630mm, 680mm |
| Finish | 2B, BA, 8K Mirror, HL, No. 4, Etching, Embossed, titanium, laser etc |
| Raw Coil Weight | 4tons - 6.5tons |
| Standard | GB24511-2009 / ASTM-240/A-240 / JIS G4304 / JIS G4305 / EN10028 |
| Certificate | SGS, BIS, ISO, BV |
| Productivity | 10,000 tons per month |
| Service before ordering | Provide Samples & Mill Certificate, arrange factory visit & Third party inspection, etc, |
Specification of Stainless Steel Products, we're also the agent for state-owned mills, such as Baosteel, Tisco and Ansteel.
| Grade | SUS 201, 202, 301, 304, 304L, 309S, 310S, 321, 316, 316L, 321, 410, 409L, 430 |
| Type | Hot rolled Coil / Plate, Cold Rolled Coil / Sheet |
| Thickness | 0.3mm - 4.0 mm for Cold Rolled, 3.0mm - 50mm for Hot rolled |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, Silted Edge |
| Finish | NO.1, 2B, BA, 8K Mirror, HL, No. 4, Etching, Embossed, titanium, laser etc |
| Raw Coil Weight | 3 tons - 6 tons - 12 tons - 24 tons |
| Standard | GB24511-2009 / ASTM-240/A-240 / JIS G4304 / JIS G4305 / EN10028, ASTM A554, A249, A269 and A270, A312 |
| Certificate | SGS, BIS, ISO, BV |
| Stock in warehouse | 2,000 per month |
| Service before ordering | Provide Samples & Mill Certificate, arrange factory visit & Third party inspection, etc, |
2.Introduction to grade 316/316L stainless steel
Austenitic stainless steel with excellent corrosion resistance and elevated temperature strength by adding Mo, nonmagnetic
Application:Equipment for food, paper, DYES, Acetic acid, fertilizer, petrochemical and the installations along the sea coast.
C Mn Ni Cr Mo%
<0.08 <2.0 10.0-14.0 16.0-18.0 2.0-3.0
Y.S. T.S. EL Hardness
>205 >520 >40 <90(HRB)
316L
A low carbon type of 316, excellent resistance to inter-granular in more corrosive environment
Application: widely used in corrosion-susceptible environment and some mechanical components those are difficult to make heat treatment after forming in more corrosive environment.
C Mn Ni Cr Mo%
<0.03 <2.0 12.0-15.0 16.0-18.0 2.0-3.0
Y.S. T.S. EL Hardness
>175 >480 >40 <90(HRB)
Grade 316/316L has A higher level of resistance to corrosion than Type 304
Type 316 is also austenitic, non-magnetic, and thermally nonhardenable stainless steel like Type 304.
nickel content is increased slightly.
1,The addition of molybdenum up to a maximum of 3%. To withstand attack by many industrial chemicals and solvents
2,Sharply increasing its corrosion resistance to chlorides and sulfates especially various sulfurous acids in the pulp industry
3,Molybdenum helps reduce hardness and increase tensile strength at higher temperatures.
By virtue of the molybdenum addition, Type 316 can withstand corrosive attack by sodium and calcium, brines, hypochloritesolutions, phosphoric acid;
specified for industrial equipment that handles the corrosive process chemicals used to produce inks, rayons, photographic chemicals, paper, textiles, bleaches, and rubber
also used extensively for surgical implants
Type Analysis of Stainless Type 316:
|
3. Grade SUS316 MIll test certificate, Grade 316L quality certifcate, Grade 316L Inspection certificate:
4. Stainless steel products:
Stainless steel doors
Stainless steel cutting tool
Stainless steel heat exchanger
Stainless steel kitchen wares
stainless steel gas stoves
stainless steel handrails
stainless steel water tank
Stainless steel sinks
stainless steel automotive parts
stainless steel exhaust pipes
stainless steel home applicances
