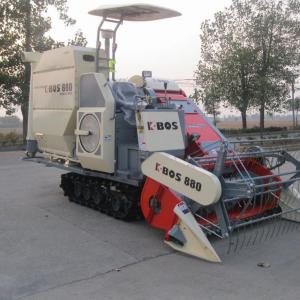

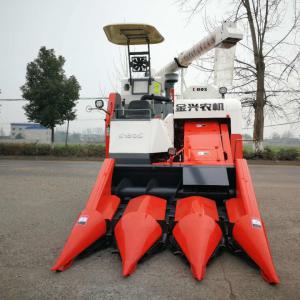

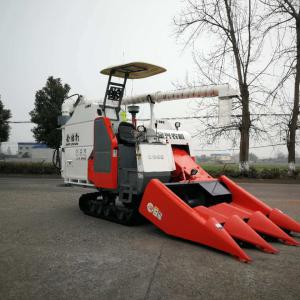

4LZ-5.0Z Combine Harvester, is suitable for corn , maize, rice, wheat, rape seeds and other granular crops, it is equipped with 100HP engine, wide and long rubber track with teeth 500*90*54, and ground clearance is 400mm, git performance very good in deep mud field.
Production plant passed and accredited to following items: ISO9001:2008, European Standard Certification CE, Bureau Veritas Certifcation BV, llAC-MRA CNAS Certification.
This machine is easy for operation and maintenance, it is a safety and energy-saving machine.
Production plant passed and accredited to following items: ISO9001:2008, European Standard Certification CE, Bureau Veritas Certifcation BV, llAC-MRA CNAS Certification.
This machine is easy for operation and maintenance, it is a safety and energy-saving machine.
| Overall Dimension | Length×Width×Heights ( mm ): 5180×2585×2720 |
| Weight (kg) | 3420 |
| Feeding Capacity( kg/s ) | 5 |
| Harvesting Capacity(hm²/h): | 0.5-1 |
| Engine | Engine Model: 4C6-100M22, 4D35ZT32/1004 (Alternative) |
| Rated Power ( kw/hp ): 73.5/100 | |
| Engine Type: Water-Cooled, 4-Cylinder, DI-Injection, Vertical Diesel. Turbocharged Engine. | |
| Rated Rotation Speed (r/min) : 2400 | |
| Fuel Tank Capacity ( l ): 140 | |
| Driving System | Rubber Track(mm): 500 x 90 x 54 |
| Crawler Steering Radius ( mm ): left turn 2850; right turn 2850 | |
| Minimum Ground Clearance (mm): 400 | |
| Type of Gearbox: Hydraulic type + HST(3F, 3R) | |
| Theoretical Operating Speed ( km/h ): 2~4 | |
| Type of Brake: By Foot. | |
| Steering: Clutch and Brake. | |
| Cutting header | Pickup Reel: Type:Eccentric Tooth ( off-centre ); Diameter( mm ): 944; Nos: 5 |
| Height Adjustment: Hydaulics. | |
| Cutting Bar Length ( mm ): 2200 | |
| Type of Header Auger: Telescopic Screw Conveying. | |
| Type of Blade: V Type / Left and Right. | |
| Rape Seed Extension: Optional | |
| Threshing & Separating | Threshing System: Spiked Tooth Axial Flow |
| & Cleaning System | Threshing Cylinder Size Diameter × Length ( mm ): 626×2000 |
| Concave Sieve :Grid x 4 | |
| Reshresher: Blade Rotation. | |
| Vibrating Sieve: Adjustable Sieve / Meshing Sieve / Hole seive (Optional) | |
| Fan: Type: Swirl; Diameter( mm ): 405; Nos: 4 | |
| Grain Storing | Option 1: Grain Tank with Unloading Auger, Capacity ( l ): 1500 |
| Option 2: Manual Operation. |
