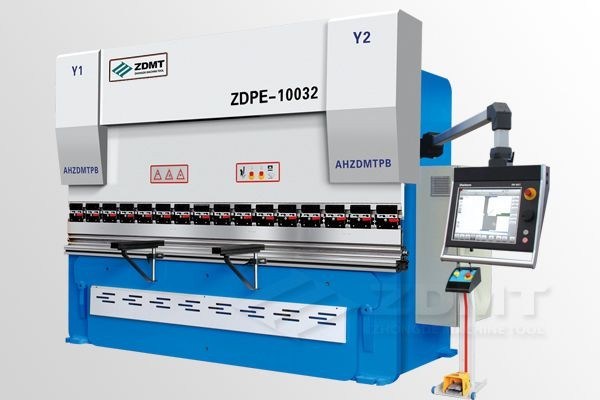

WE67K-100/3200 electro-hydraulic Synchronous CNC press brake with Delem DA66T control 4+1 axis
Servo motor and drive: Japanese Yaskwa
Hydraulic system: Germany Boschrexroth
Ball bearing lead screw: Taiwan
Straight-line guide: Taiwan Hiwin
Seal ring: Germany Fietz or Japanese Valqua
Raster ruler: Germany Heidenhain
Main electrical elements: schenider or Siemens
21 langauge backgauge concede automatic
Standard mould with quick die changing and clamping
Optional: FIESSLER safety light with CE verified / Delem DA52S /Delem DA69T 3D
Quality control: ISO9001:2008 CE

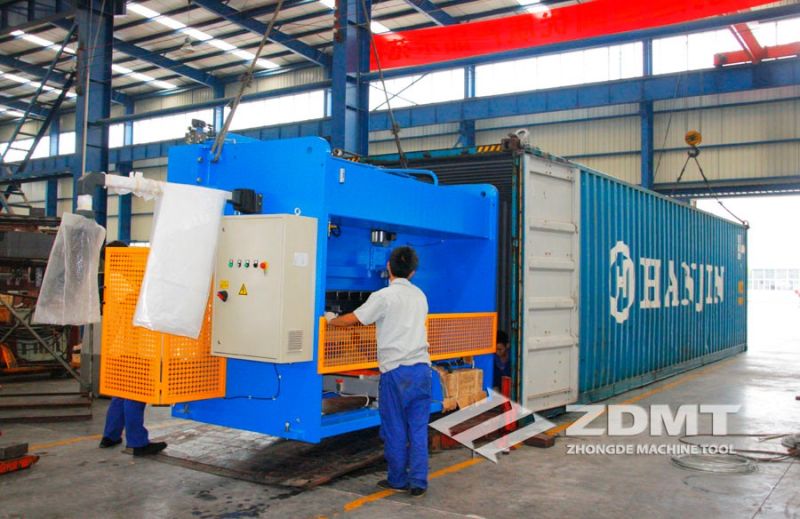

Shipment.
1×40' HQ container L×W×H=12.192×2.438 ×2.896 M Load capacity:26,280 KG
Machine Overall dimensions:
L×W×H=3260×1450×2420mm
Net weight 7,300 kg
Base framed by channel steel and the whole body covered with plastic bag
Main features:
Max bending width 3200mm Max bending perssure:1000KN
Machine weight:7300KG 380V 50HZ 3 Phase
Delem DA-66T control Y1 Y2 X R axis+C hydraulic cylinder compensation for worktable
Max bending width 3200mm Max bending perssure:1000KN
Machine weight:7300KG 380V 50HZ 3 Phase
Delem DA-66T control Y1 Y2 X R axis+C hydraulic cylinder compensation for worktable
Servo motor and drive: Japanese Yaskwa
Hydraulic system: Germany Boschrexroth
Ball bearing lead screw: Taiwan
Straight-line guide: Taiwan Hiwin
Seal ring: Germany Fietz or Japanese Valqua
Raster ruler: Germany Heidenhain
Main electrical elements: schenider or Siemens
21 langauge backgauge concede automatic
Standard mould with quick die changing and clamping
Optional: FIESSLER safety light with CE verified / Delem DA52S /Delem DA69T 3D
Quality control: ISO9001:2008 CE
Main Features

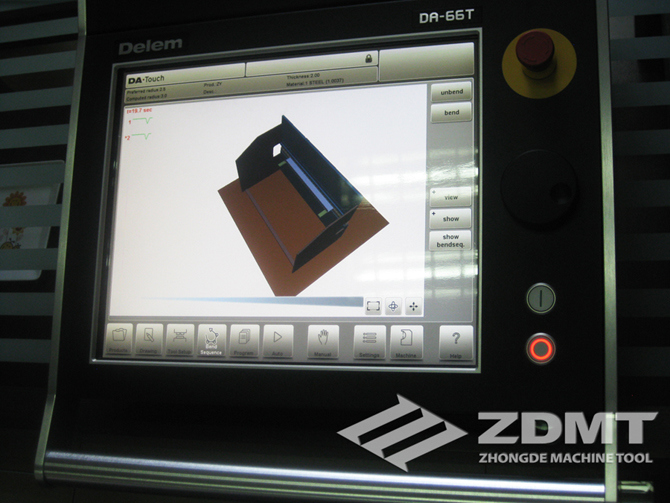

1) Delem DA66T touch controller together with linear encoder,Bosch-Rexroth valves,servo motors and other famous brand elements to ensure excellent performance
2) Adopting crowning system for high precise bending
3)Repeatability precision +/-0.01mm,parallelism precision +/-0.02mm
4) Advanced proportional valve controls the hydraulic cylinders to work synchronously and achieve precise repeatability performance
5) Press Up die with quick change and relase for easy remove punch tools
6) Ram stroke ( Y1 Y2) and and back gauge( X R ) + C are controlled by CNC programs
Shipment.
1×40' HQ container L×W×H=12.192×2.438 ×2.896 M Load capacity:26,280 KG
Machine Overall dimensions:
L×W×H=3260×1450×2420mm
Net weight 7,300 kg
Base framed by channel steel and the whole body covered with plastic bag
