Main Performance:
1. Equipped with DELEM CNC system made in Holland and other key parts such as
linear scale, hydraulic valve, servo motor are all importing products.

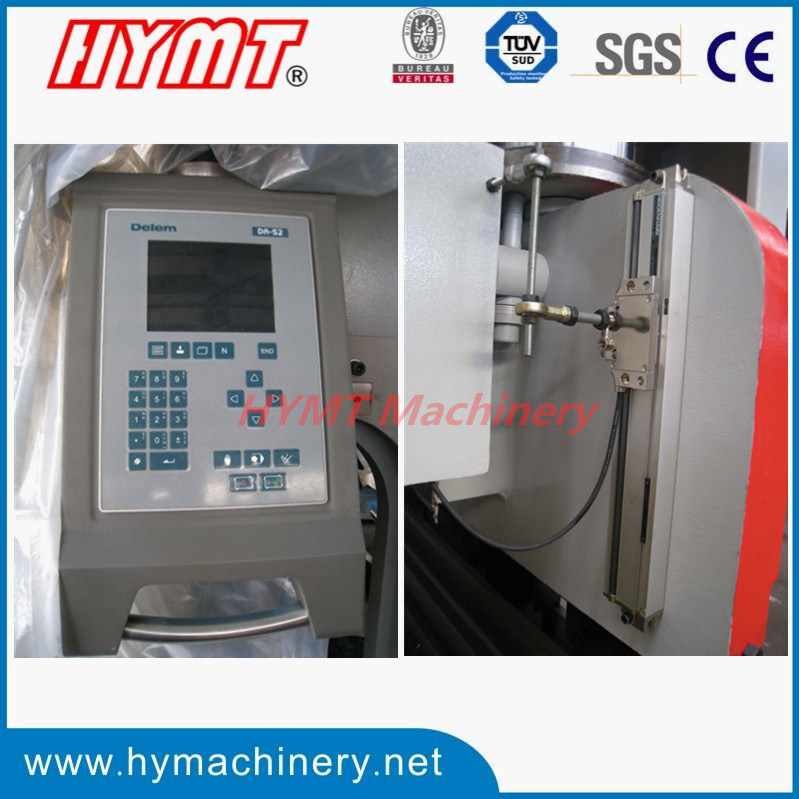

2. There are two linear scales installed on "C" plates on both sides, which is fixed on worktable to eliminate the effect ion of deflection when working. The linear scale will inspect the both end positions of ram (Y1, Y2) and send signal. After amplified by CNC amplifier, the signal will be fed back to computer. Then the computer will control the volume of oil, which is going to enter into cylinders. So the parallelism of ram and worktable could be controlled under ±0.01mm.
3. DELEM system has automatic testing and self-diagnosis functions. Also, Programming is simply composed of putting in sizes of plate to bend, dimensions of work piece and choosing tools. Then CNC system could calculate the bending force and position of back gauge and ram automatically. Also the ram penetrating and pressing time relay could be calculated.
4. Good quality electro-hydraulic proportional valve is adopted to ensure the synchronization of both cylinders as well good capacity to deal eccentric load.
5. The stroke of ram and back gauge are all controlled by CNC system with good precision.
6. Main sliding parts such as cylinders, piston rod, guide way, are all treated with wear-resistance.

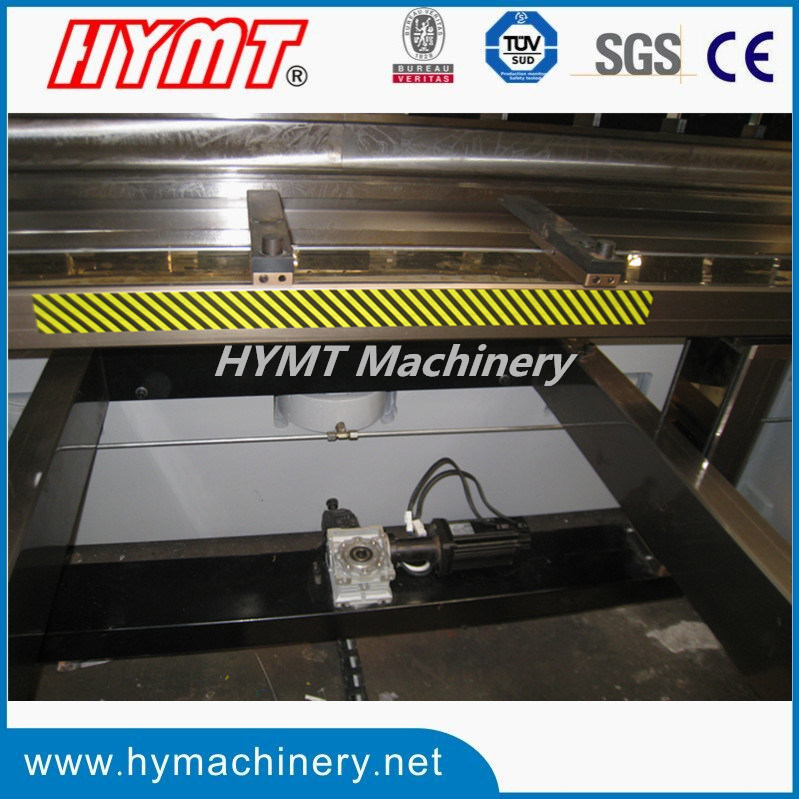

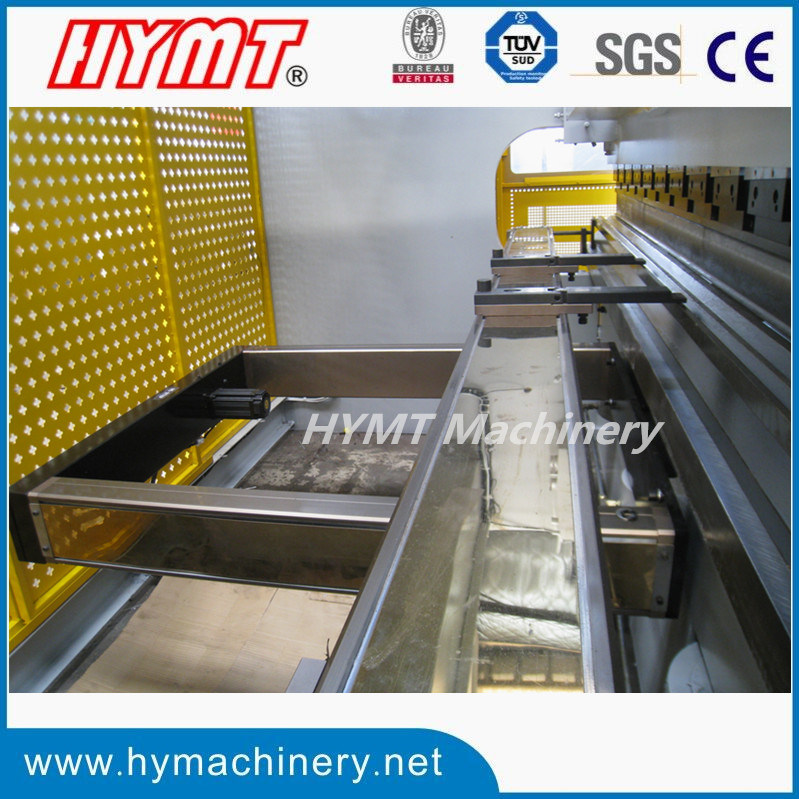

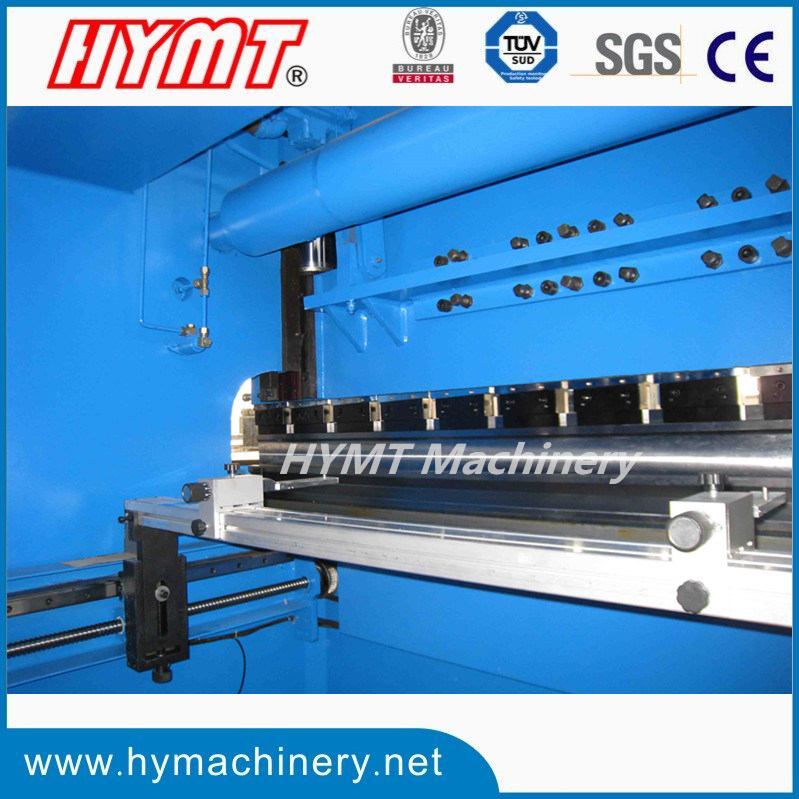

7. Back gauge adopts rolling ball screw and rolling guide way, so the repeat positioning precision of X axis could reach ±0.1mm.
8. Full machine is guarded with safety guard and interlocker to protect the operator
from injured.
CNC system:
Main Configuration:
| No. | Name | Producer | Remark |
| 1 | CNC System | DELEM, DA-65W | |
| 2 | Valve block for pressure | BOSCH/HOERBIGER | |
| 3 | Valve block for synchronization | BOSCH, GERMANY | |
| 4 | Main sealers in cylinder | NOK, Japan | |
| 5 | Gear Pump | BOSCH | |
| 6 | Linear Scale | HEIDENHAIN | |
| 7 | Servo Motor | YASKAWA, JAPAN |
Main specifications:
| Type | Nominal Force (KN) | Worktable Length(mm) | Poles Distance (mm) | Throat Depth(mm) | Slider Travel(mm) | Max Open(mm) | Power (kw) |
| 40T/2200 | 400 | 2200 | 1875 | 230 | 100 | 320 | 5.5 |
| 40T/2500 | 400 | 2500 | 1875 | 230 | 100 | 320 | 5.5 |
| 50T/2500 | 500 | 2500 | 1875 | 230 | 100 | 320 | 5.5 |
| 63T/2500 | 630 | 2500 | 2020 | 250 | 100 | 320 | 5.5 |
| 63T/3200 | 630 | 3200 | 2575 | 250 | 100 | 320 | 5.5 |
| 80T/2500 | 800 | 2500 | 2020 | 300 | 100 | 320 | 7.5 |
| 80T/3200 | 800 | 3200 | 2590 | 320 | 100 | 350 | 7.5 |
| 80T/4000 | 800 | 4000 | 3050 | 320 | 100 | 350 | 7.5 |
| 100T/2500 | 1000 | 2500 | 2020 | 320 | 120 | 320 | 7.5 |
| 100T/3200 | 1000 | 3200 | 2600 | 320 | 120 | 370 | 7.5 |
| 100T/4000 | 1000 | 4000 | 3050 | 320 | 120 | 370 | 7.5 |
| 125T/3200 | 1250 | 3200 | 2600 | 320 | 120 | 370 | 7.5 |
| 125T/4000 | 1250 | 4000 | 3050 | 320 | 120 | 370 | 7.5 |
| 160T/3200 | 1600 | 3200 | 2600 | 320 | 200 | 460 | 11 |
| 160T/4000 | 1600 | 4000 | 3000 | 320 | 200 | 460 | 11 |
| 160T/5000 | 1600 | 5000 | 4000 | 320 | 200 | 460 | 11 |
| 160T/6000 | 1600 | 6000 | 4940 | 320 | 200 | 460 | 11 |
| 200T/3200 | 2000 | 3200 | 2600 | 320 | 200 | 460 | 11 |
| 200T/4000 | 2000 | 4000 | 3000 | 320 | 200 | 460 | 11 |
| 200T/5000 | 2000 | 5000 | 4000 | 320 | 200 | 460 | 11 |
| 200T/6000 | 2000 | 6000 | 5000 | 320 | 200 | 460 | 11 |
| 250T/3200 | 2500 | 3200 | 2500 | 400 | 250 | 590 | 18.5 |
| 250T/4000 | 2500 | 4000 | 3000 | 400 | 250 | 590 | 18.5 |
| 250T/5000 | 2500 | 5000 | 4000 | 400 | 250 | 590 | 18.5 |
| 250T/6000 | 2500 | 6000 | 5000 | 400 | 250 | 590 | 18.5 |
| 300T/3200 | 3000 | 3200 | 2530 | 400 | 250 | 590 | 22 |
| 300T/4000 | 3000 | 4000 | 3470 | 400 | 250 | 590 | 22 |
| 300T/5000 | 3000 | 5000 | 4000 | 400 | 250 | 590 | 22 |
| 300T/6000 | 3000 | 6000 | 5000 | 400 | 250 | 590 | 22 |
| 400T/4000 | 4000 | 4000 | 3000 | 400 | 250 | 590 | 30 |
| 400T/5000 | 4000 | 5000 | 4000 | 400 | 250 | 590 | 30 |
| 400T/6000 | 4000 | 6000 | 5000 | 400 | 250 | 590 | 30 |
| 500T/5000 | 5000 | 5000 | 4000 | 400 | 250 | 590 | 45 |
| 500T/6000 | 5000 | 6000 | 5000 | 400 | 320 | 590 | 45 |
| 600T/4000 | 6000 | 4000 | 3000 | 400 | 320 | 590 | 55 |
Our Services
1.Standardization of Service "212"
2: response in 2 hours
1: provide solution in 1 day
2: solve complaint in 2 days
2.Installation Service
Installation Services are available with all HYMT machines. We dispatch technician to customer's factory for
installation and preoperation of machines.
3.Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you may send
your technician to our company to learn how to operate machines.
4.Quality Guarantee
We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data.
We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments.
