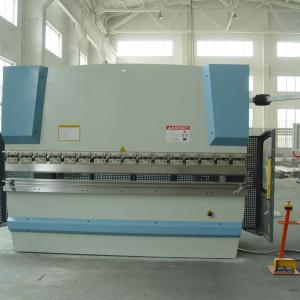

1) All steel welded structure, vibrating treatment of ageing for removal of internal stress, with good rigidity and stability.
2) Torsion shaft forced synchronization of mechanical limit stopper balance, with high precision.
3) Integrated hydraulic transmission system, large range of speed regulation thanks to transmission of thesliding block, stable and reliable performance.
4) Rear stopper and the sliding block have electrical adjustment for their stroke, with manual fine tuning, and digital indication.
5) Adjustment mechanism of sliding block independent from oil cylinder assembly to enhance sealing effect upper mold is fitted with tilting warp offset mechanism.
6) For bending machine from 250 t up synchronization mechanism of mechanical or electrical hydraulic transmission is fitted, lower working table is fitted with warp offset mechnaism.
7) Multi machine combined operation is possible.
Main technic parameters
NO. | Name | PB-160/3200 | Unit |
1 | Normal force | 1600 | KN |
2 | Length of working table | 3200 | mm |
3 | Distance between columne | 2550 | mm |
4 | Throat depth | 320 | mm |
5 | Ram stroke | 150 | mm |
6 | Ram stroke adjustment | 110 | mm |
7 | Max. opening height | 400 | mm |
8 | Main motor power | 711 | KW |
9 | Weight | 8700 | kg |
NO. | Name | manufacturers |
1 | Main seals | NOK |
2 | Operated directional valve | YUKEN |
3 | Safety valve | JEOUGANG |
4 | Travel switch and pushbuttons | SCHNEIDER |
5 | Relay and contactor | SCHNEIDER |
6 | Inner gear pump | CML OR QT |
7 | Main motor | SIEMENS OR ABB |
Optional:
1) DRO type: SIKO (Germany) DRO USD1450.00 + HIWIN (Taiwan) ball screw USD1090.00
or
2) NC control system HT072 (Italy) USD3270.00 + HIWIN (Taiwan) ball screw USD1090.00
or
3) CNC control system DA41(inverter control) USD4900.00 + HIWIN (Taiwan) ball screw USD1090.00
Other optionals:
CE standard USD3500.00 (We have CE certificate, can make machines according to CE certificate)
900mm light curtain USD1545.00 or Laser safe guard AKAS (AU): USD5000.00

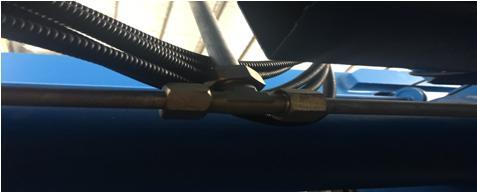

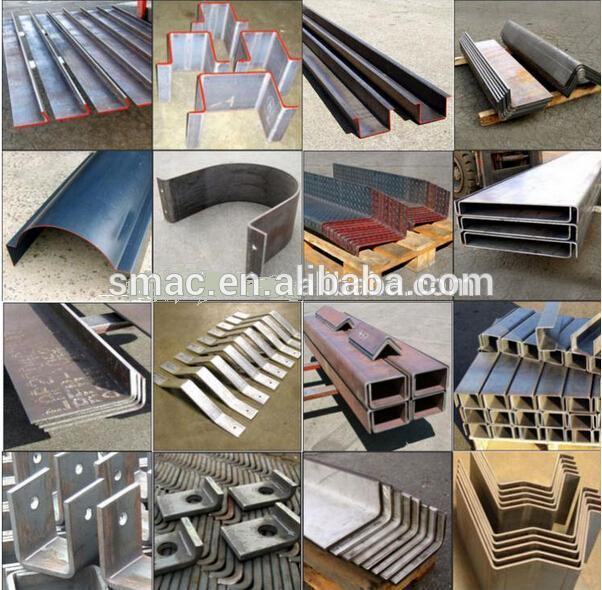

OTHER PHOTOS:

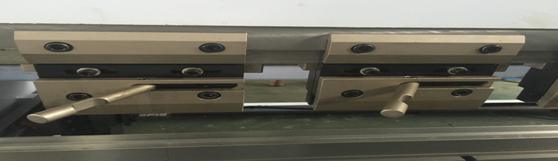

1)Quick lockin clamp for changing Up toolling

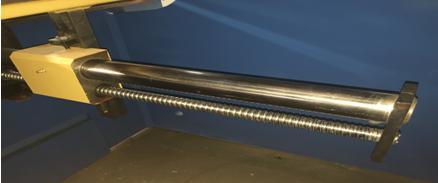

2)Ball screw
