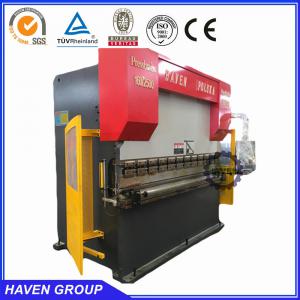

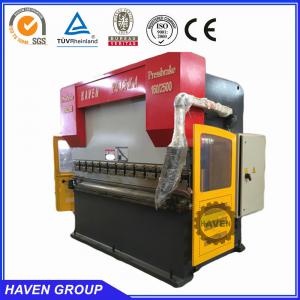

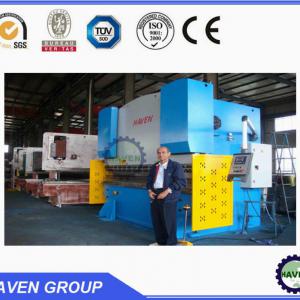

Hydraulic Steel Plate Press Brake Machine Steel Sheet bending machine

PRIMARY PARAMETERS

Model NO.

WC67Y Series

Application

Machinery & Hardware

Type for Fold-bending Machine

CNC Fold-bend Machine

Trademark

HAVEN

Transport Package

Steel Pallet

Specification

CE Standard

Origin

China

HS Code

8459

DETAIL DESCRIPTION

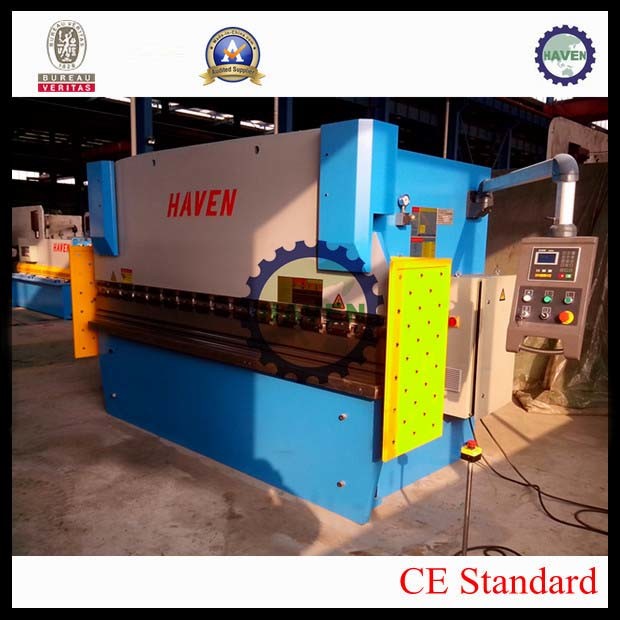

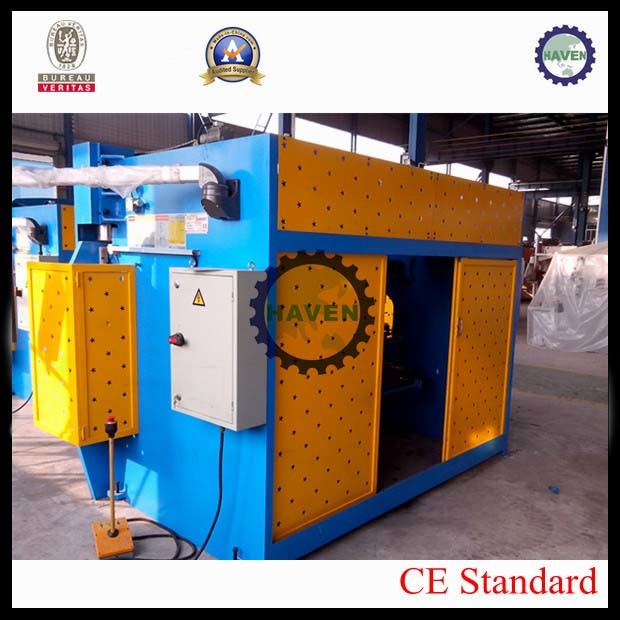

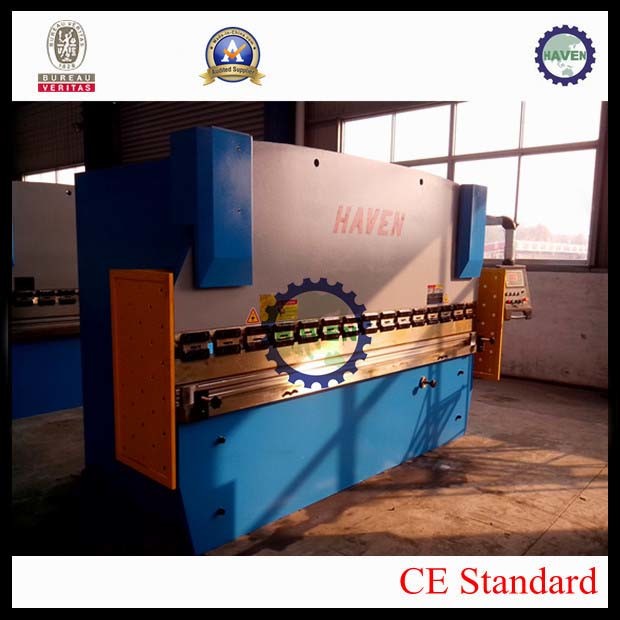

Hydraulic Steel Plate Press Brake Machine Steel Sheet bending machine

Hydraulic Bending Machine With E21 DIGITAL READOUT

Hydraulic press brake main function and completed:

(1) Steel-welded construction, vibration to eliminate stress, with high strength and good rigidity;
(2) Hydraulic top-drive, steadiness and reliability
(3) Mechanical stop, steel torsion bar to maintain synchronization, high precision;
(4) Motorized-adjusting device of back-gauge and ram's stroke, fine adjusting by hand wheel, numerical display;
(5) Deflection compensation unit installed on the top die, manual crowed bottom die holder is adopted for the machine above 250tons;
(6) Travel limit protection.
(7) Remote pedal control device
(8) Full machine guarding with safety interlocker.
(9) Duplex linked press brake is available as per client's demand.
(10) Electric components are from SIEMENS
(11) Oil-seal rings are imported from Japan
(12) NC control system are imported from DELEM, Netherland ( NC control system is at extra cost )

Main specification:

Model	Nominal Pressure (kN)	Length of table (mm)	Distance Between Housing (mm)	Throat Depth (mm)	Stroke (mm)	Open Hight (mm)	Main Motor (kW)	Dimensions (L x W x H) (mm)	Weight (t)
40/2000	400	2000	1600	200	110	335	4	2545x1510x2050	3
40/2500	400	2500	2000	200	110	335	4	2950x1510x2080	3.5
63/2000	630	2000	1600	250	110	350	5.5	2555x1600x2130	3.8
63/2500	630	2500	2000	250	110	350	5.5	2960x1600x2180	4.2
63/3200	630	3200	2600	250	110	350	5.5	3740x1600x2230	5.2
100/2500	1000	2500	2000	350	150	400	7.5	2980x1650x2330	6.3
100/3200	1000	3200	2600	350	150	400	7.5	3740x1650x2355	7
100/4000	1000	4000	3200	350	150	400	7.5	4550x1650x2450	8.8
100/5000	1000	5000	4000	350	150	400	7.5	5100x1500x2650	11.8
125/2500	1250	2500	2000	350	150	410	7.5	3980x1650x2370	7.5
125/3200	1250	3200	2600	350	150	410	7.5	3750x1650x2450	8.2
125/4000	1250	4000	3200	350	150	410	7.5	4550x1650x2470	9
125/5000	1250	5000	4000	350	150	410	7.5	5100x1500x2795	11.5
125/6000	1250	6000	4500	350	150	410	7.5	6100x1500x2895	14
160/2500	1600	2500	2000	350	150	425	11	2980x1715x2410	8.5
160/3200	1600	3200	2550	350	150	425	11	3750x1715x2450	11
160/4000	1600	4000	3200	350	190	450	11	4550x1715x2730	12
160/5000	1600	5000	4000	350	190	450	11	5100x1570x2900	15.5
160/6000	1600	6000	4500	350	190	450	11	6100x1570x3010	19
200/3200	2000	3200	2600	350	240	460	11	3750x1815x2715	13
200/4000	2000	4000	3200	350	240	460	11	4550x1815x2850	14
200/5000	2000	5000	3800	350	240	460	11	5100x1715x3020	18.5
200/6000	2000	6000	4500	350	240	460	11	6100x1715x3120	21
250/3200	2500	3200	2600	400	240	525	11	3750x2010x2850	15.5
250/4000	2500	4000	3200	400	240	525	11	4550x2010x3010	17
250/5000	2500	5000	3800	400	240	525	11	5100x1890x3190	21.5
250/6000	2500	6000	4500	400	240	525	11	6100x1890x3350	28
300/3200	3000	3200	2600	400	250	545	15	3740x2100x3235	19.5
300/4000	3000	4000	3200	400	250	545	15	4340x2100x3300	22
300/5000	3000	5000	3800	400	250	545	15	5100x2100x3430	26
300/6000	3000	6000	4500	400	250	545	15	6100x2100x3490	29
