QC12K Automatic CNC Steel Sheet Metal Plate Hydraulic Shearing Shear Cutting Machine QC11K Guillotine Shear

QC12K swing beam shearing machine 6*4000 typeMain feature1. Steel welded structure, stress elimination by vibration, high mechanical strength, and exceptional rigidity 2. The hydraulic drive type structure, the cutter saddle circles a fixed axis fo

Technical Feature

  • Shanghai, China
  • 60 Sets / Month
  • L/C, T/T, D/P, Western Union, Paypal, Money Gram
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$1~29

PRIMARY PARAMETERS

Model NO.
QC12K
Process Usage
Metal-Cutting CNC Machine Tools
Control Method
Open-Loop Control
Processing Precision
0.01~0.02(mm)
Certification
GS, CE, ISO 9001
Voltage
Customized
Motor
Siemens Beide
Oil Cylinder
Parker
Control System
E21s
Cutting Width
3200
Trademark
QC12Y-6*4000
Origin
China
Application
Metal
Movement Method
Linear Control
Numerical Control
NC
Performance Classification
Economical CNC Machine Tools
Condition
New
Control
Nc
Sealing Element
Nok
Hydraulic Valve
Rexroth
Cutting Thickness
8mm
Delivery Time
15 Days
Transport Package
Wooden Package

DETAIL DESCRIPTION

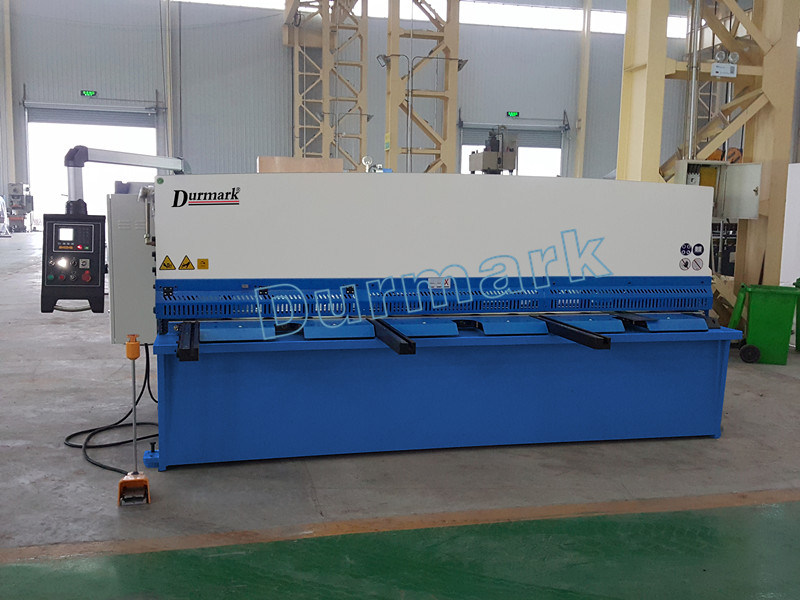

QC12K swing beam shearing machine 6*4000 type
Main feature

1. Steel welded structure, stress elimination by vibration, high mechanical strength, and exceptional rigidity
2. The hydraulic drive type structure, the cutter saddle circles a fixed axis for circle moving.
3. Decrease the force of fulcrum through leverage to prolong working life
4. Nitrogen cylinder return, simplifying the hydraulic system to make running more stable.
5. with fast and flexible gap adjusting mechanism for high shearing accuracy
6. Equipped with Lighting Alignment Device for easy shearing
7. Back Gauge size and shearing times controlled by CNC system, back gauge with high precision ball screw, stable operation and precise positioning.
8. The CNC system adopts frequency conversion control technology, with multi-step programming function, simple and easy to operate.
9. Safety barrier device all around the machinery, electrical cabinets equipped with Open door cut-off function, emergency stop button around front and back, protective cover foot switch to ensure safe working.

QC12K Automatic CNC Steel Sheet Metal Plate Hydraulic Shearing Shear Cutting Machine QC11K Guillotine Shear QC12K Automatic CNC Steel Sheet Metal Plate Hydraulic Shearing Shear Cutting Machine QC11K Guillotine Shear

QC12K Automatic CNC Steel Sheet Metal Plate Hydraulic Shearing Shear Cutting Machine QC11K Guillotine Shear

QC12K Automatic CNC Steel Sheet Metal Plate Hydraulic Shearing Shear Cutting Machine QC11K Guillotine Shear

Technical parameter
NOItemValueUnit
1Max cutting thickness8mm
2Max cutting width3200mm
3Plate strength450N/mm2
4Shearing angle1º30'degree
5Back-guage max distance500mm
6Stroke time14time/min
7Distance between columns3420mm
8Blade length3300mm
9Worktable height810mm
10Main mptor power7.5kw
11Dimension3690*1750*1680mm

VIDEO FOR REFERENCE:
https://www.youtube.com/watch?v=gYMCj4Vm0sY&t=143s

Package
QC12K Automatic CNC Steel Sheet Metal Plate Hydraulic Shearing Shear Cutting Machine QC11K Guillotine Shear

Process power
QC12K Automatic CNC Steel Sheet Metal Plate Hydraulic Shearing Shear Cutting Machine QC11K Guillotine Shear


Service
Pre-sales Service
1. Inquiry and consulting support
2. Sample testing support
3. Recommend the most suitable machine according to customer's purpose
4. Factory visiting welcomed

After-sales Service
1. Training how to install the machine
2. Training how to use the machine
3. Warranty 1 year
4. Engineers available to service machinery oversea
