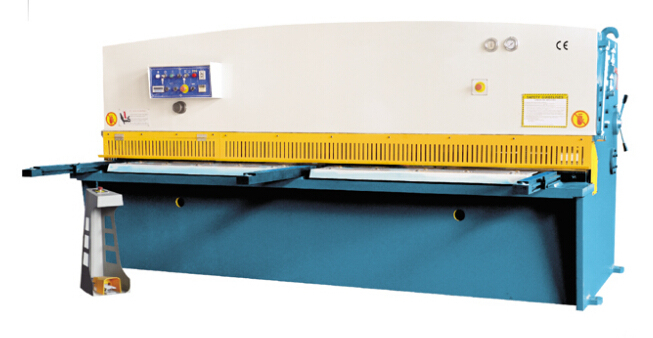

Hydraulic Swing Beam Shear (QC12Y)
The frame is entirely welded with steel plates, and treated to relive stress by tempering.
Hydraulic drive, return of knife beam is smooth and prompt by nitrogen cylinder
The portable and prompt adjustment of the blades gap and value of gap are indicated by digital, convenient and fast equipped with lighting-alignment, so as to align when shearing. The stroke of knife beam can be operation safety.
The display devices of the backgauge value and the shearing times are on the front of the machine.
Descriptio n | Specifications | QC12Y-4 × 2500 | QC12 Y -4 × 3200 | QC12 Y -4 × 4000 | QC12 Y -6 × 2000 | QC12 Y -6× 2500 | QC12 Y -6 × 3200 | QC12 Y -6 × 4000 | QC12 Y -6× 6000 | QC12 Y -8 × 2500 | QC12 Y -8 × 3200 | QC12 Y -8× 4000 | QC12 Y -8 × 5000 | QC12 Y -8 × 6000 | QC12 Y -12 × 2500 | QC12 Y -12 × 3200 |
| Cutting size(T× W) | 4× 2500 | 4 × 3200 | 4 × 4000 | 6 × 2000 | 6× 2500 | 6 × 3200 | 6 × 4000 | 6× 6000 | 8 × 2500 | 8 × 3200 | 8× 4000 | 8 × 5000 | 8 × 6000 | 12 × 2500 | 12 × 3200 | |
| Shear angle | 1° 30′ | 1° 30′ | 1° 30′ | 1° 30′ | 1° 30′ | 1° 30′ | 1° 30′ | 1° 30′ | 1° 30′ | 1° 30′ | 1° 30′ | 1° 30′ | 1° 30′ | 2° | 2° | |
| Strokes | ≥ 22 | ≥ 18 | ≥ 12 | ≥ 16 | ≥ 16 | ≥ 12 | ≥ 10 | ≥ 7 | ≥ 12 | ≥ 10 | ≥ 10 | ≥ 8 | ≥ 6 | ≥ 10 | ≥ 9 | |
| Adjusting range of backgauge | mm | 20- 600 | 20- 600 | 20- 600 | 20- 600 | 20- 600 | 20- 600 | 20- 800 | 20- 800 | 20- 600 | 20- 600 | 20- 600 | 20- 800 | 20- 800 | 20- 800 | 20- 800 |
| Throat depth | mm | 85 | 85 | 85 | 145 | 145 | 145 | 145 | 140 | 145 | 145 | 145 | 300 | 300 | 300 | 300 |
| Main motor capacity | kW | 5.5 | 5.5 | 5.5 | 7.5 | 7.5 | 7.5 | 7.5 | 11 | 11 | 11 | 11 | 18.5 | 18.5 | 18.5 | 18.5 |
| Net weight | kg | 3200 | 4100 | 6600 | 4000 | 5400 | 6400 | 8200 | 17000 | 6100 | 7700 | 10200 | 24000 | 29500 | 8600 | 10700 |
| Outline dimensions(L× W× H) | mm | 3100× 1510× 1450 | 3800× 1600× 1500 | 4600× 1705× 1600 | 2650× 1500× 1600 | 3150× 1500× 1600 | 3850× 1600× 1620 | 4650× 1850× 1700 | 6780× 2450× 2100 | 3180× 1680× 1700 | 3880× 1830× 1720 | 4680× 1980× 1780 | 5800× 2390× 2200 | 6820× 3000× 2400 | 3300× 2030× 1840 | 4000× 2100× 1940 |
Descriptio n | Specifications | hQC12Y-12 × 4000 | QC12 Y -12 × 6000 | QC12 Y -16 × 2500 | QC12 Y -16 × 3200 | QC12 Y -16× 4000 | QC12 Y -16 × 6000 | QC12 Y -20 × 2500 | QC12 Y -25× 2500 | QC12 Y -25× 3200 | QC12 Y -32× 2500 |
| Cutting size(T× W) | 12× 4000 | 12× 6000 | 16× 2500 | 16× 3200 | 16× 4000 | 16× 6000 | 20× 2500 | 25× 2500 | 25× 3200 | 32× 2500 | |
| Shear angle | 15° 14′ | 2° | 2° 9′ | 2° | 2° | 2° | 2° 30′ | 2° 30′ | 3° | 3° 30′ | |
| Strokes | ≥ 8 | ≥ 4 | ≥ 9 | ≥ 8 | ≥ 7 | ≥ 4 | ≥ 5 | ≥ 5 | ≥ 5 | ≥ 4 | |
| Adjusting range of backgauge | mm | 20-800 | 20-1000 | 20-800 | 20-800 | 20-1000 | 20-1000 | 20-1000 | 20-1000 | 20-1000 | 20-1000 |
| Throat depth | mm | 300 | 320 | 315 | 320 | 320 | 320 | 325 | 325 | 325 | 350 |
| Main motor capacity | kW | 18.5 | 30 | 22 | 22 | 30 | 37 | 30 | 37 | 37 | 45 |
| Net weight | kg | 13800 | 35000 | 11100 | 14300 | 20500 | 45000 | 16500 | 21000 | 27000 | 32500 |
| Outline dimensions(L× W× H) | mm | 4800× 2270× 2000 | 6940× 2800× 2500 | 3310× 2240× 2000 | 4030× 2390× 2100 | 4820× 2490× 2300 | 7020× 3100× 2700 | 3370× 2545× 2250 | 3450× 2650× 2400 | 4130× 3100× 2500 | 3550× 3100× 2800 |
