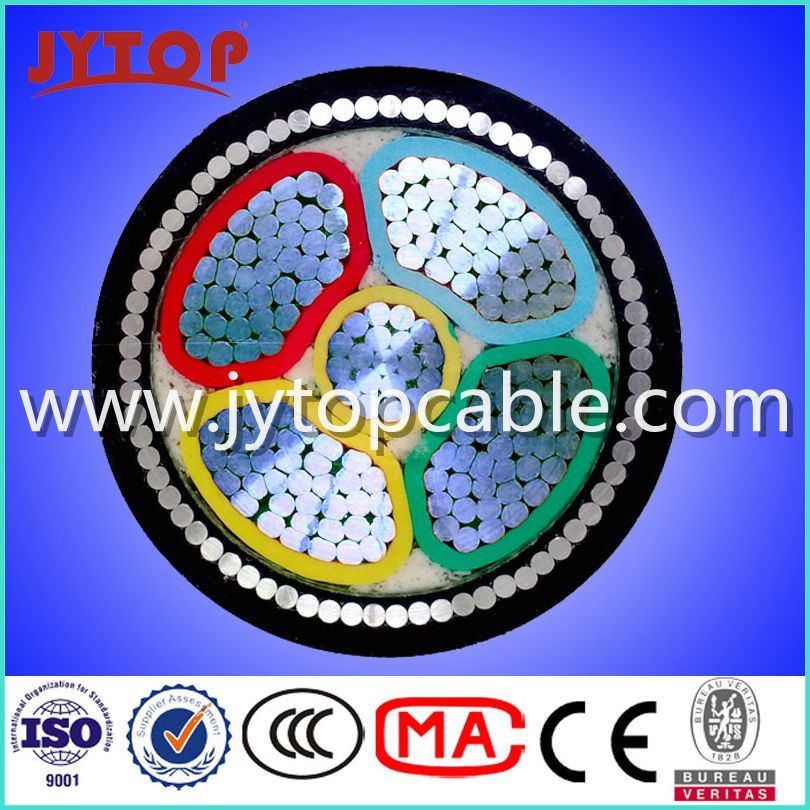

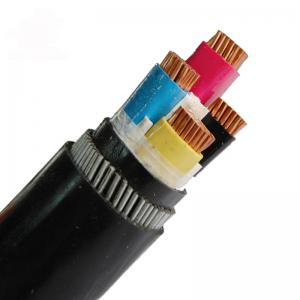

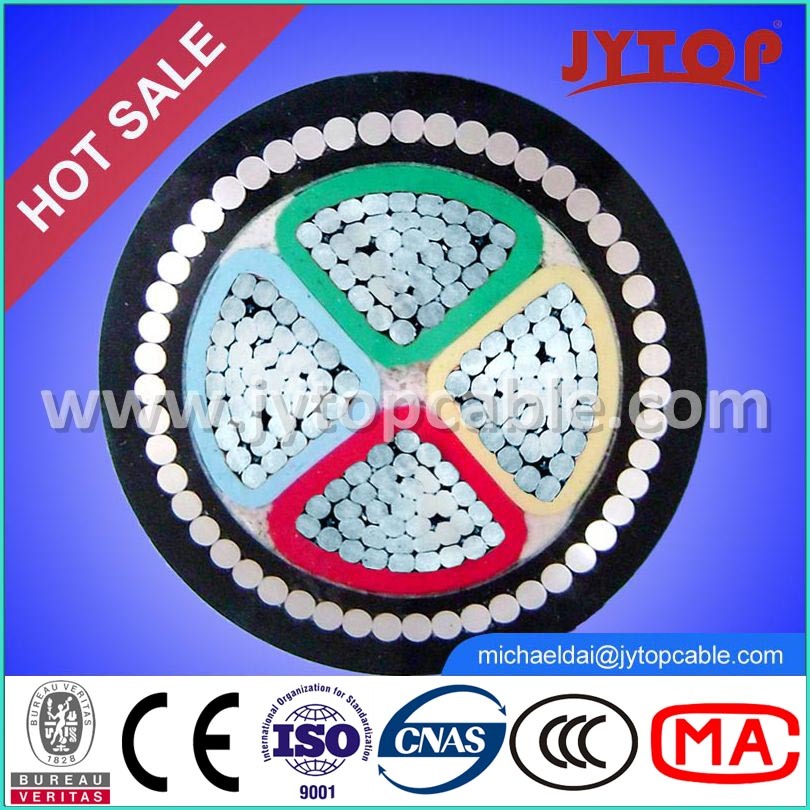

AWA Cable for Aluminum Wire Armoured Cable:
Company Description
1. CE, ISO 9001 Certificaes
2. More than 23 years experiences
3. Professional Manufacturer with Factory located in Henan Province.
4. Quick response and fast delivery.
5. Serve everyone with heart and soul.
Description:
1. Voltage: 0.6/1KV
2. Conductor: Aluminum, Class 2
3. Insulation: PVC
4. Sheath; PVC
4. Armoured type: Steel wire armoured cable(swa armoured cable also available)
0.6/1kv Aluminum Conductor PVC Cable, AWA cable, aluminum wire armourd cable
1. Operating Characteristics
Rated voltage: 0.6/1(1.2)kV
Max. Permissible continuous operating temperature of conductor: 70 ° C
Max. Temperature of conductor during short-circuit (5s max. Duration) shall not exceed:
Nominal cross section of conductor ≤ 300mm2: 160 ° C
Nominal cross section of conductor >300mm2: 140 ° C
The ambient temperature under installation should not be lower than: 0 ° C
The bending radius of cable is recommended as following:
For single core cable: Not less than 15 times of the diameter of cable
For multi-core cable: Not less than 12 times of the diameter of cable
When the armored single core cable used for Alternative Current(AC) system, the armoring material should be non-magnetic.
2. Application
The cable is used for fixed installations such as electric power distribution networks or industrial installations, which is laid in high fall area, able to bear external mechanical force, and certain pulling force.
3. Manufacturing Standards
IEC 60502-1 & Chinese national standard GB/T 12706-2008 We can produce above cables according to popular international standards such as ASTM, BS, DIN, NF &AS/NZ also.
Steel wire armoured cable
Swa cable
Armoured cable
4. NOTE:
If you want to know more details about swa cable or other armoured cable this kind of products, please visit our website(homepage) because we have no ways to show so much information on this platform. Thank you.
5. Technical data
Note: RE= round conductor RM = stranded conductor SM=sectional conductor
5.3 Main technical data of 0.6/1KV, three cores, Aluminum conductor, PVC insulated, galvanized steel wire armored and PVC or PE sheath cables

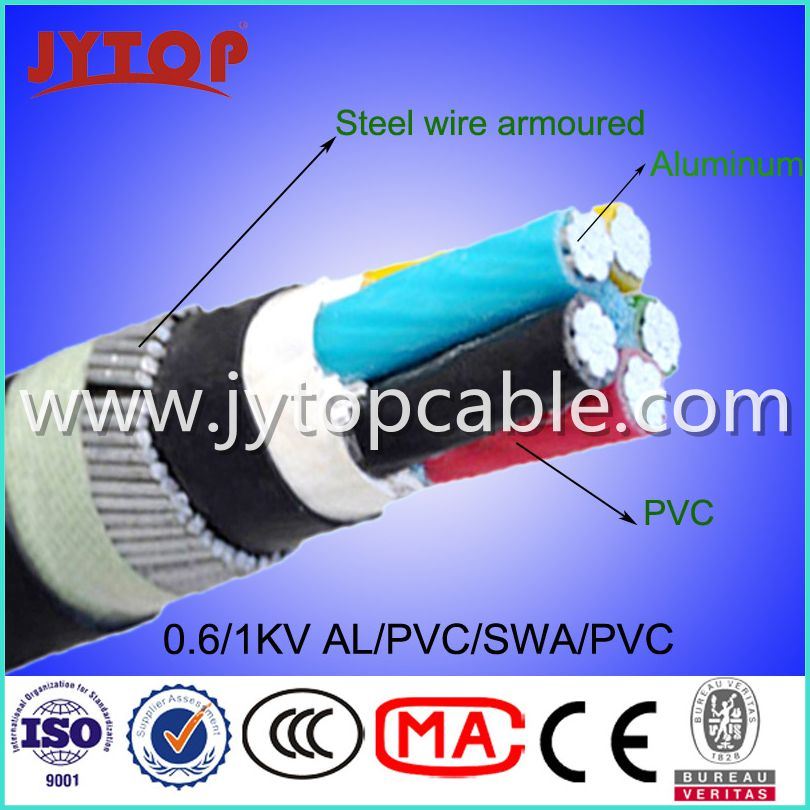

CABLE CONSTRUCTION 0.6/1KV AL/PVC/SWA/PVC or PE
Note: RE= round conductor RM = stranded conductor SM=sectional conductor
5.4 Main technical data of 0.6/1KV, four cores, Aluminum conductor, PVC insulated, galvanized steel wire armored and PVC or PE sheath cables
CABLE CONSTRUCTION 0.6/1KV AL/PVC/SWA/PVC or PE
Note: RE= round conductor RM = stranded conductor SM=sectional conductor
5.5 Main technical data of 0.6/1KV, 3+1 cores, Aluminum conductor, PVC insulated, galvanized steel wire armored and PVC or PE sheath cables
CABLE CONSTRUCTION 0.6/1KV AL/PVC/SWA/PVC or PE
Note: RE= round conductor RM = stranded conductor SM=sectional conductor
5.6 Main technical data of 0.6/1KV, five cores, Aluminum conductor, PVC insulated, galvanized steel wire armored and PVC or PE sheath cables
CABLE CONSTRUCTION 0.6/1KV AL/PVC/SWA/PVC or PE
Note: RE= round conductor RM = stra
We can producing the Aluminum cable, according to different, such as BS, DIN, ASTM, IEC and so on, for the Armoured cable, there are Steel wire armoured cable, steel tape armoured cable and Aluminum wire armoured cable for available.
Welcome to contact us for more information about the swa cable or other armoured cable.
Company Description
1. CE, ISO 9001 Certificaes
2. More than 23 years experiences
3. Professional Manufacturer with Factory located in Henan Province.
4. Quick response and fast delivery.
5. Serve everyone with heart and soul.
Description:
1. Voltage: 0.6/1KV
2. Conductor: Aluminum, Class 2
3. Insulation: PVC
4. Sheath; PVC
4. Armoured type: Steel wire armoured cable(swa armoured cable also available)
0.6/1kv Aluminum Conductor PVC Cable, AWA cable, aluminum wire armourd cable
1. Operating Characteristics
Rated voltage: 0.6/1(1.2)kV
Max. Permissible continuous operating temperature of conductor: 70 ° C
Max. Temperature of conductor during short-circuit (5s max. Duration) shall not exceed:
Nominal cross section of conductor ≤ 300mm2: 160 ° C
Nominal cross section of conductor >300mm2: 140 ° C
The ambient temperature under installation should not be lower than: 0 ° C
The bending radius of cable is recommended as following:
For single core cable: Not less than 15 times of the diameter of cable
For multi-core cable: Not less than 12 times of the diameter of cable
When the armored single core cable used for Alternative Current(AC) system, the armoring material should be non-magnetic.
2. Application
The cable is used for fixed installations such as electric power distribution networks or industrial installations, which is laid in high fall area, able to bear external mechanical force, and certain pulling force.
3. Manufacturing Standards
IEC 60502-1 & Chinese national standard GB/T 12706-2008 We can produce above cables according to popular international standards such as ASTM, BS, DIN, NF &AS/NZ also.
Steel wire armoured cable
Swa cable
Armoured cable
4. NOTE:
If you want to know more details about swa cable or other armoured cable this kind of products, please visit our website(homepage) because we have no ways to show so much information on this platform. Thank you.
5. Technical data
5.1 Main technical data of 0.6/1KV, Single core, Aluminum conductor, PVC insulated, galvanized steel wire armored and PVC or PE sheath cables
CABLE CONSTRUCTION 0.6/1KV AL/PVC/SWA/PVC or PE
Note: RE= round conductor RM = stranded conductor SM=sectional conductor
5.2 Main technical data of 0.6/1KV, two cores, Aluminum conductor, PVC insulated, galvanized steel wire armored and PVC or PE sheath cables
CABLE CONSTRUCTION 0.6/1KV AL/PVC/SWA/PVC or PE
CABLE CONSTRUCTION 0.6/1KV AL/PVC/SWA/PVC or PE
Cable size | Conductor type | Nominal thickness of PVC insulation (mm) | Approx. Diameter of steel wire(mm) | Nominal thickness of PVC sheath(mm) | Approx. Cable overall diameter (mm) | Max. D. C Resistance @ 200C (Ω/km) |
| 1X10mm2 | RM | 1.0 | 1.6 | 1.8 | 17.0 | 3.08 |
| 1X16mm2 | RM | 1.0 | 1.6 | 1.8 | 18.1 | 1.91 |
| 1X25mm2 | RM | 1.2 | 1.6 | 1.8 | 16.4 | 1.20 |
| 1X35mm2 | RM | 1.2 | 1.6 | 1.8 | 17.1 | 0.868 |
| 1X50mm2 | RM | 1.4 | 1.6 | 1.8 | 21.7 | 0.641 |
| 1X70mm2 | RM | 1.4 | 1.6 | 1.8 | 23.5 | 0.443 |
| 1X95mm2 | RM | 1.6 | 1.6 | 1.8 | 25.8 | 0.320 |
| 1X120mm2 | RM | 1.6 | 1.6 | 1.8 | 27.4 | 0.253 |
| 1X150mm2 | RM | 1.8 | 1.6 | 1.8 | 29.4 | 0.206 |
| 1X185mm2 | RM | 2.0 | 1.6 | 1.9 | 31.9 | 0.164 |
| 1X240mm2 | RM | 2.2 | 1.6 | 1.9 | 34.9 | 0.125 |
| 1X300mm2 | RM | 2.4 | 2.0 | 2.1 | 38.9 | 0.100 |
| 1X400mm2 | RM | 2.6 | 2.0 | 2.2 | 42.6 | 0.0778 |
| 1X500mm2 | RM | 2.8 | 2.0 | 2.3 | 46.3 | 0.0605 |
| 1X630mm2 | RM | 2.8 | 2.5 | 2.4 | 51.7 | 0.0469 |
| 1X800mm2 | RM | 2.8 | 2.5 | 2.6 | 56.4 | 0.0369 |
| 1X1000mm2 | RM | 3.0 | 2.5 | 2.7 | 61.5 | 0.0291 |
5.2 Main technical data of 0.6/1KV, two cores, Aluminum conductor, PVC insulated, galvanized steel wire armored and PVC or PE sheath cables
CABLE CONSTRUCTION 0.6/1KV AL/PVC/SWA/PVC or PE
Cable size | Conductor type | Nominal Thickness of PVC Insulation (mm) | Approx. Diameter Of steel wire(mm) | Nominal Thickness of PVC sheath(mm) | Approx. Cable Overall diameter (mm) | Max. D. C Resistance @ 200C (Ω/km) |
| 2X1.5mm2 | RE or RM | 0.8 | 0.8 | 1.8 | 13.5 | 18.1 |
| 2X2.5mm2 | RE or RM | 0.8 | 0.8 | 1.8 | 14.3 | 12.1 |
| 2X4mm2 | RE or RM | 1.0 | 1.25 | 1.8 | 17.1 | 7.41 |
| 2X6mm2 | RE or RM | 1.0 | 1.25 | 1.8 | 18.1 | 4.61 |
| 2X10mm2 | RM | 1.0 | 1.6 | 1.8 | 21.7 | 3.08 |
| 2X16mm2 | RM | 1.0 | 1.6 | 1.8 | 23.9 | 1.91 |
| 2X25mm2 | SM | 1.2 | 1.6 | 1.8 | 23.2 | 1.20 |
| 2X35mm2 | SM | 1.2 | 1.6 | 1.8 | 24.8 | 0.868 |
| 2X50mm2 | SM | 1.4 | 1.6 | 1.9 | 27.5 | 0.641 |
| 2X70mm2 | SM | 1.4 | 2.0 | 2.0 | 31.2 | 0.443 |
| 2X95mm2 | SM | 1.6 | 2.0 | 2.2 | 34.7 | 0.320 |
| 2X120mm2 | SM | 1.6 | 2.0 | 2.3 | 37.0 | 0.253 |
| 2X150mm2 | SM | 1.8 | 2.5 | 2.4 | 41.3 | 0.206 |
| 2X185mm2 | SM | 2.0 | 2.5 | 2.5 | 44.9 | 0.164 |
| 2X240mm2 | SM | 2.2 | 2.5 | 2.7 | 49.6 | 0.125 |
| 2X300mm2 | SM | 2.4 | 2.5 | 2.9 | 54.1 | 0.100 |
| 2X400mm2 | SM | 2.6 | 2.5 | 3.2 | 59.3 | 0.0778 |
Note: RE= round conductor RM = stranded conductor SM=sectional conductor
5.3 Main technical data of 0.6/1KV, three cores, Aluminum conductor, PVC insulated, galvanized steel wire armored and PVC or PE sheath cables
CABLE CONSTRUCTION 0.6/1KV AL/PVC/SWA/PVC or PE
Cable size | Conductor type | Nominal Thickness of PVC Insulation (mm) | Approx. Diameter of steel Wire(mm) | Nominal Thickness of PVC sheath(mm) | Approx. Cable Overall diameter (mm) | Max. D. C Resistance @ 200C (Ω/km) |
| 3X1.5mm2 | RE or RM | 0.8 | 0.8 | 1.8 | 14.2 | 18.1 |
| 3X2.5mm2 | RE or RM | 0.8 | 0.8 | 1.8 | 15.1 | 12.1 |
| 3X4mm2 | RE or RM | 1.0 | 1.25 | 1.8 | 17.9 | 7.41 |
| 3X6mm2 | RE or RM | 1.0 | 1.25 | 1.8 | 19.0 | 4.61 |
| 3X10mm2 | RM | 1.0 | 1.6 | 1.8 | 22.4 | 3.08 |
| 3X16mm2 | RM | 1.0 | 1.6 | 1.8 | 24.7 | 1.91 |
| 3X25mm2 | SM | 1.2 | 1.6 | 1.8 | 24.3 | 1.20 |
| 3X35mm2 | SM | 1.2 | 1.6 | 1.8 | 26.1 | 0.868 |
| 3X50mm2 | SM | 1.4 | 1.6 | 1.9 | 29.2 | 0.641 |
| 3X70mm2 | SM | 1.4 | 2.0 | 2.0 | 33.1 | 0.443 |
| 3X95mm2 | SM | 1.6 | 2.0 | 2.2 | 37.4 | 0.320 |
| 3X120mm2 | SM | 1.6 | 2.5 | 2.3 | 41.2 | 0.253 |
| 3X150mm2 | SM | 1.8 | 2.5 | 2.4 | 44.7 | 0.206 |
| 3X185mm2 | SM | 2.0 | 2.5 | 2.5 | 48.8 | 0.164 |
| 3X240mm2 | SM | 2.2 | 2.5 | 2.7 | 54.2 | 0.125 |
| 3X300mm2 | SM | 2.4 | 2.5 | 2.9 | 59.3 | 0.100 |
| 3X400mm2 | SM | 2.6 | 3.15 | 3.4 | 69.5 | 0.0778 |
5.4 Main technical data of 0.6/1KV, four cores, Aluminum conductor, PVC insulated, galvanized steel wire armored and PVC or PE sheath cables
CABLE CONSTRUCTION 0.6/1KV AL/PVC/SWA/PVC or PE
Cable size | Conductor type | Nominal thickness of PVC insulation (mm) | Approx. Diameter of steel wire(mm) | Nominal thickness of PVC sheath(mm) | Approx. Cable overall diameter (mm) | Max. D. C Resistance @ 200C (Ω/km) |
| 4X1.5mm2 | RE or RM | 0.8 | 0.8 | 1.8 | 14.9 | 18.1 |
| 4X2.5mm2 | RE or RM | 0.8 | 1.25 | 1.8 | 16.7 | 12.1 |
| 4X4mm2 | RE or RM | 1.0 | 1.25 | 1.8 | 18.8 | 7.41 |
| 4X6mm2 | RE or RM | 1.0 | 1.25 | 1.8 | 20.1 | 4.61 |
| 4X10mm2 | RM | 1.0 | 1.6 | 1.8 | 23.9 | 3.08 |
| 4X16mm2 | RM | 1.0 | 1.6 | 1.8 | 26.4 | 1.91 |
| 4X25mm2 | SM | 1.2 | 1.6 | 1.9 | 27.8 | 1.20 |
| 4X35mm2 | SM | 1.2 | 1.6 | 2.0 | 30.2 | 0.868 |
| 4X50mm2 | SM | 1.4 | 1.6 | 2.1 | 33.7 | 0.641 |
| 4X70mm2 | SM | 1.4 | 2.0 | 2.3 | 38.3 | 0.443 |
| 4X95mm2 | SM | 1.6 | 2.0 | 2.4 | 43.2 | 0.320 |
| 4X120mm2 | SM | 1.6 | 2.5 | 2.6 | 47.8 | 0.253 |
| 4X150mm2 | SM | 1.8 | 2.5 | 2.7 | 51.8 | 0.206 |
| 4X185mm2 | SM | 2.0 | 2.5 | 2.9 | 56.9 | 0.164 |
| 4X240mm2 | SM | 2.2 | 2.5 | 3.1 | 63.5 | 0.125 |
| 4X300mm2 | SM | 2.4 | 3.15 | 3.4 | 71.1 | 0.100 |
| 4X400mm2 | SM | 2.6 | 3.15 | 3.7 | 78.5 | 0.0778 |
5.5 Main technical data of 0.6/1KV, 3+1 cores, Aluminum conductor, PVC insulated, galvanized steel wire armored and PVC or PE sheath cables
CABLE CONSTRUCTION 0.6/1KV AL/PVC/SWA/PVC or PE
Cable size | Conductor type | Nominal thickness of PVC Insulation(mm) | Approx. Diameter Of steel wire(mm) | Nominal thickness Of PVC Sheath (mm) | Approx. Cable overall Diameter (mm) | Max. D. C Resistance @ 200C (Ω/km) | |||
| Phase core | Earth core | Phase core | Earth core | Phase core | Earth core | ||||
| 3X2.5+1.5mm2 | RE | RE | 0.8 | 0.8 | 1.25 | 1.8 | 16.1 | 12.1 | 18.1 |
| 3X4+2.5mm2 | RE | RE | 1.0 | 0.8 | 1.25 | 1.8 | 18.3 | 7.41 | 12.1 |
| 3X6+4mm2 | RE | RE | 1.0 | 1.0 | 1.25 | 1.8 | 19.8 | 4.61 | 7.41 |
| 3X10+6mm2 | RM | RE | 1.0 | 1.0 | 1.6 | 1.8 | 23.5 | 3.08 | 4.61 |
| 3X16+10mm2 | RM | RM | 1.0 | 1.0 | 1.6 | 1.8 | 26.2 | 1.91 | 3.08 |
| 3X25+16mm2 | SM | RM | 1.2 | 1.0 | 1.6 | 1.8 | 28.0 | 1.20 | 1.91 |
| 3X35+16mm2 | SM | RM | 1.2 | 1.0 | 1.6 | 1.8 | 29.6 | 0.868 | 1.91 |
| 3X50+25mm2 | SM | SM | 1.4 | 1.2 | 1.6 | 2.0 | 32.8 | 0.641 | 1.20 |
| 3X70+35mm2 | SM | SM | 1.4 | 1.2 | 2.0 | 2.1 | 37.4 | 0.443 | 0.868 |
| 3X95+50mm2 | SM | SM | 1.6 | 1.4 | 2.0 | 2.3 | 41.7 | 0.320 | 0.641 |
| 3X120+70mm2 | SM | SM | 1.6 | 1.4 | 2.5 | 2.4 | 46.2 | 0.253 | 0.443 |
| 3X150+70mm2 | SM | SM | 1.8 | 1.4 | 2.5 | 2.5 | 49.6 | 0.206 | 0.443 |
| 3X185+95mm2 | SM | SM | 2.0 | 1.6 | 2.5 | 2.7 | 54.5 | 0.164 | 0.320 |
| 3X240+120mm2 | SM | SM | 2.2 | 1.6 | 2.5 | 2.9 | 60.3 | 0.125 | 0.253 |
| 3X300+150mm2 | SM | SM | 2.4 | 1.8 | 2.5 | 3.1 | 65.9 | 0.100 | 0.206 |
| 3X400+185mm2 | SM | SM | 2.6 | 2.0 | 3.15 | 3.5 | 74.1 | 0.0778 | 0.164 |
5.6 Main technical data of 0.6/1KV, five cores, Aluminum conductor, PVC insulated, galvanized steel wire armored and PVC or PE sheath cables
CABLE CONSTRUCTION 0.6/1KV AL/PVC/SWA/PVC or PE
Cable size | Conductor type | Nominal Thickness of PVC Insulation (mm) | Approx. Diameter Of steel wire(mm) | Nominal Thickness of PVC sheath(mm) | Approx. Cable Overall diameter (mm) | Max. D. C Resistance @ 200C (Ω/km) |
| 5X1.5mm2 | RE or RM | 0.8 | 1.25 | 1.8 | 16.7 | 18.1 |
| 5X2.5mm2 | RE or RM | 0.8 | 1.25 | 1.8 | 17.8 | 12.1 |
| 5X4mm2 | RE or RM | 1.0 | 1.25 | 1.8 | 20.2 | 7.41 |
| 5X6mm2 | RE or RM | 1.0 | 1.6 | 1.8 | 22.2 | 4.61 |
| 5X10mm2 | RM | 1.0 | 1.6 | 1.8 | 25.7 | 3.08 |
| 5X16mm2 | RM | 1.0 | 1.6 | 1.9 | 28.8 | 1.91 |
| 5X25mm2 | SM | 1.2 | 1.6 | 1.9 | 29.6 | 1.20 |
| 5X35mm2 | SM | 1.2 | 2.0 | 2.0 | 33.6 | 0.868 |
| 5X50mm2 | SM | 1.4 | 2.0 | 2.2 | 38.6 | 0.641 |
| 5X70mm2 | SM | 1.4 | 2.0 | 2.3 | 43.1 | 0.443 |
| 5X95mm2 | SM | 1.6 | 2.5 | 2.6 | 50.1 | 0.320 |
| 5X120mm2 | SM | 1.6 | 2.5 | 2.7 | 54.1 | 0.253 |
| 5X150mm2 | SM | 1.8 | 2.5 | 2.9 | 59.4 | 0.206 |
| 5X185mm2 | SM | 2.0 | 2.5 | 3.1 | 64.9 | 0.164 |
| 5X240mm2 | SM | 2.2 | 3.15 | 3.3 | 73.6 | 0.125 |
| 5X300mm2 | SM | 2.4 | 3.15 | 3.6 | 80.7 | 0.100 |
We can producing the Aluminum cable, according to different, such as BS, DIN, ASTM, IEC and so on, for the Armoured cable, there are Steel wire armoured cable, steel tape armoured cable and Aluminum wire armoured cable for available.
Welcome to contact us for more information about the swa cable or other armoured cable.
