MANUFACTURER
Texas Instruments
PRODUCT CATEGORY
Darlington BJT
DESCRIPTION
Trans Darlington NPN 50V 0.5A 16-Pin PDIP Tube
Texas Instruments brings you their latest NPN ULN2003AN Darlington transistor, a component that can easily provide you with much higher current gain values. This product's maximum continuous DC collector current is 0.5 A. It has a maximum collector emitter saturation voltage of 1.1@100mA|1.3@200mA|1.6@350mA V. In order to ensure parts aren't damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This Darlington transistor array has an operating temperature range of -20 °C to 70 °C. It has a maximum collector emitter voltage of 50 V.
Specifications
EU RoHS Compliant
Type NPN
Number of Elements per Chip 7
Maximum Collector Emitter Voltage (V) 50
Maximum Continuous DC Collector Current (A) 0.5
Maximum Collector Emitter Saturation Voltage(V) 1.1@100mA|1.3@200mA|1.6@350mA
Minimum Operating Temperature (°C) -20
Maximum Operating Temperature (°C) 70
Packaging Tube
Temperature Grade Commercial
Mounting Through Hole

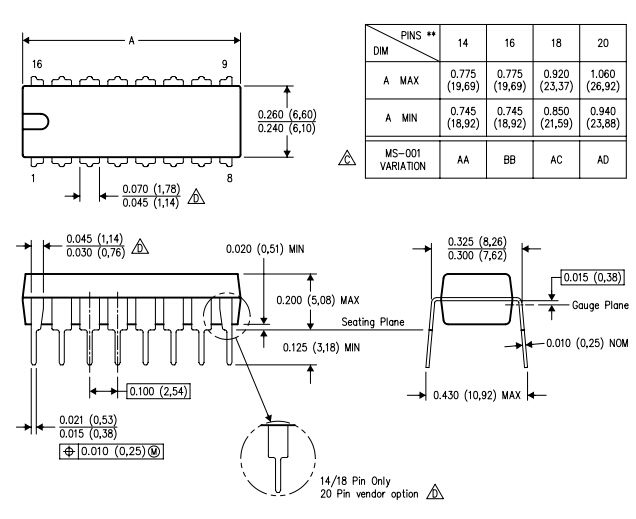

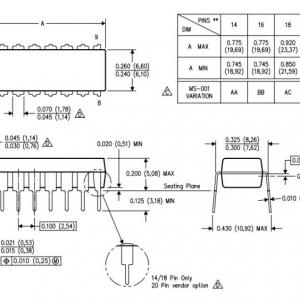

Package Height (mm) 5.08(Max) - 0.51(Min)
Package Length (mm) 19.69(Max)
Package Width (mm) 6.6(Max)
PCB changed 16
Standard Package Name DIP
Supplier Package PDIP
Pin Count 16
Lead Shape Through Hole
Features
• 500-mA-Rated Collector Current (Single Output)
• High-Voltage Outputs: 50 V
• Output Clamp Diodes
• Inputs Compatible With Various Types of Logic
• Relay-Driver Applications
Applications
• Relay Drivers
• Stepper and DC Brushed Motor Drivers
• Lamp Drivers
• Display Drivers (LED and Gas Discharge)
• Line Drivers
• Logic Buffers
