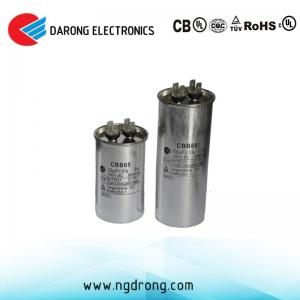

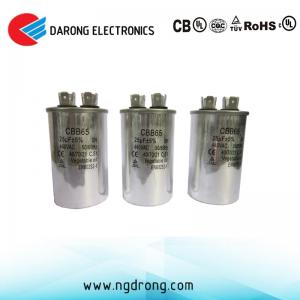

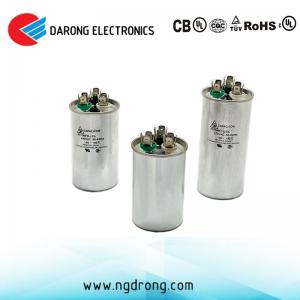

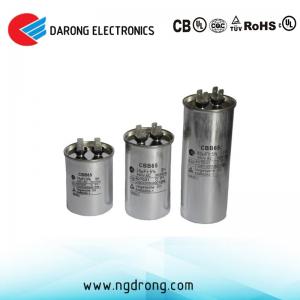

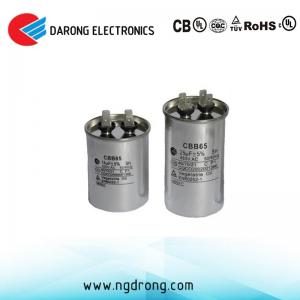

BB65 Capacitor Introduction:
CBB65 type capacitor is mainly used for washing machine, air conditioner, air conditioner, refrigerator, freezer, dishwasher, dryer and other household appliances, single phase motor, UPS power supply system, etc. The main features include good self-healing performance and stable performance.Shock resistance current, high overload capacity, long service life, low loss, high insulation resistance.In addition, the capacitor has built-in explosion-proof device with high safety. At the same time, it can be equipped with built-in or external inductance to make up the capacitive inductance module.
CBB65 Capacitor Main Technical Data:
If you have any interesting and problems, please feel free to contact us!
Company Name: NingGuo DaRong Electronics Co.,Ltd
Add:Chuangye Road,Economic and Technology Development Zone,Ningguo City,Anhui Province,China.
Pho:+86-18756378667
Fax:0563-4187265
CBB65 type capacitor is mainly used for washing machine, air conditioner, air conditioner, refrigerator, freezer, dishwasher, dryer and other household appliances, single phase motor, UPS power supply system, etc. The main features include good self-healing performance and stable performance.Shock resistance current, high overload capacity, long service life, low loss, high insulation resistance.In addition, the capacitor has built-in explosion-proof device with high safety. At the same time, it can be equipped with built-in or external inductance to make up the capacitive inductance module.
CBB65 Capacitor Main Technical Data:
| Reference Standard | GB/T 3667.1-2005,IEC 60252-1,UL810 |
| Climatic Category | 40/70/21,40/85/21 |
| Dissipation Factor | ≤0.002(100Hz,C≤10μF) ≤0.006(100Hz,C≤33μF) ≤0.008(100Hz,C>33μF) |
| Insulation Resistance (IR×CN) | ≥3000MΩ |
| Capacitance Tolerance | ±5%,±10%,±15% |
| Rated Voltage (UN) | 250/300/400/450/500/560V |
| Rated Frequency (fN) | 50/60Hz |
| Class of Operation | Class C ( 3000h ), Class B ( 10000h ) |
| Class of Safety Protection | S1(P1),S2(P2) |
| Flame Retardant Grade | UL94V-0 |
| Leading-out Structure | Terminal or Wire |
| Safety Approvals | CQC,TüV,UL |
| Idnductance | 16-60μH |
| Storage Temperature | -40ºC~70ºC,-40ºC~85ºC |
| Capacitance Range (CN) | 1μF~110μF |
| Maximum Permissible Operating Voltage | 1.1UN |
