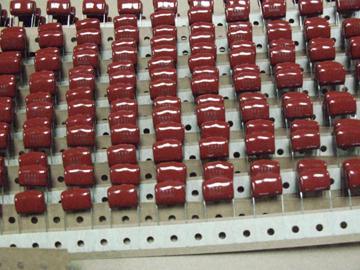

224 K 400V Metallized Polyester Film Capacitors (TMCF03)

104K250V Metallized Polyester Film Capacitors (TMCF03)Key Specifications/Special Features:CapacitorInsulation resistance:≥ 30, 000MQ (CR ≤ 0.33UF)≥ 1, 250MQ (CR>0.33UF) UR ≤ 100V≥ 7, 500MQ (CR≤ 0.33UF) UR >100V≥ 2, 500MQ (CR>0.33UF) UR

Technical Feature

  • Shenzhen, China
  • 100000kpcs
  • T/T, Western Union
  • Polyester Film Capacitor
  • General Purpose, Lighting
  • Through Hole
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$0~0

PRIMARY PARAMETERS

Model NO.
TMCF03
Usage
Low Frequency Coupling
Color
Brown
Trademark
TOPMAY
Transport Package
Bulk, Tape
Specification
ROHS
Origin
China
HS Code
853225900

DETAIL DESCRIPTION

104K250V Metallized Polyester Film Capacitors (TMCF03)

Key Specifications/Special Features:
Capacitor
Insulation resistance:
≥ 30, 000MQ (CR ≤ 0.33UF)
≥ 1, 250MQ (CR>0.33UF) UR ≤ 100V
≥ 7, 500MQ (CR≤ 0.33UF) UR >100V
≥ 2, 500MQ (CR>0.33UF) UR >100V
Metalized polyester film, Epoxy resin coating
Wide capacitance in small dimensions
Excellent self-healing property and high reliability
Widely used in filter and noise suppression
Suitable for low pulse circuits
Blocking, bypass, and coupling for DC
Signals of VHF range

General specifications:
Climatic category: 55, 85, and 21
Rated voltage: 63, 100, 250, 400, 630, and 1, 000V
Capacitance range: 0.001 to 0.47UF
Capacitance tolerance: ± 5% (J), ± 10% (K), and ± 20% (M)
Voltage resistance: 2UR (5s)
Dissipation factor: ≤ 0.01% (20 degree Celsius, 1kHz)

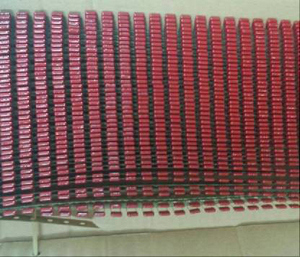

224 K 400V Metallized Polyester Film Capacitors (TMCF03)
224 K 400V Metallized Polyester Film Capacitors (TMCF03)
