Main features:
1.The leading products of the company Molybdenum Disilicide Heating Element Type 1700grade and 1800grade elements are high-tech products researched and developed by experts from China and abroad.
2.MoSi2 heating element can quickly form a thin and adhesive anti-oxidizing layer of quartz glass (SiO2), under the high temperature oxidizing condition. If the protective layer was damaged, the element can reform a new one, so MoSi2 heating elements have a very good anti-oxidation properties, it also means that the heating element can be used on operation for a much longer time than the traditional one.
3.The resistivity of the Mosi2 heating element is not changing with the time, so a new one can be installed without effecting the old one. This can result of the huge saving in furnace maintenance fee sand time as well, increase the working efficiency. This is the key point of Mosi2 heating element being a better material and being widely used.
4. Technical Data
5. The influence of operation temperature on the heater surface in a different atmosphere
Packaging & Shipping
1) Packing: from the inside to outer packaging, is foam sponge, carton, wooden case.
2) Transport modes: Sea or Air transportation, TNT, DHL express or FedEx.
3) Please make sure the 'shipping address' is your confirmed address.
4) We do check everything in good condition before we ship your parcel out.
5) We will process your order ASAP after payment is confirmed.
About us:

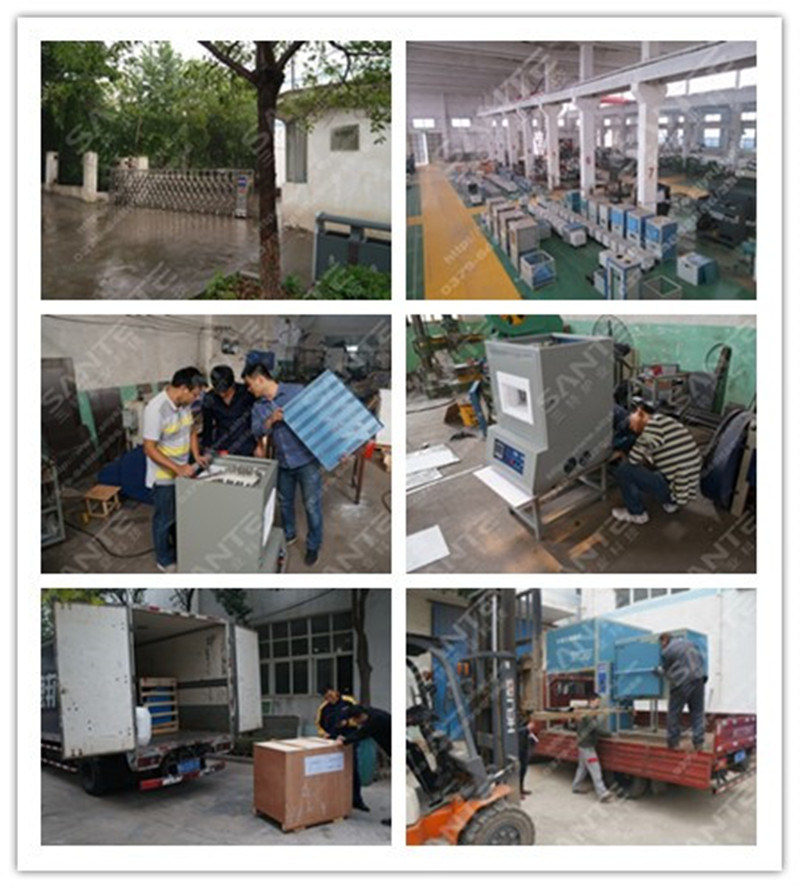

1. We are a leading and professional enterprise that specializes in the manufacture of high temperature muffle Furnaces
2. Our products have a number of technical patents and have passed the ISO9001 quality system certification and CE certificate.
3. Our products covers 1000/1200/1300/1400/1600/1700ºC muffle furnace, tube furnace, vacuum box furnace, dual(multi) zone tube furnace, industrial furnace, elevator/bottom loading muffle furnace, car-type bottom furnace, etc.
4. After ten years of development, take scientific and strict management system and first-class technology strength, Sante Furnace have provided lots of muffle furnaces for colleges and universities, research institutes, petrochemical plants, petroleum, smelting, casting, machinery manufacturing, military industry, and other industries in China and overseas.
Contact detail:
Contact Person : Mr James
Mobile: +86-15638742886
1.The leading products of the company Molybdenum Disilicide Heating Element Type 1700grade and 1800grade elements are high-tech products researched and developed by experts from China and abroad.
2.MoSi2 heating element can quickly form a thin and adhesive anti-oxidizing layer of quartz glass (SiO2), under the high temperature oxidizing condition. If the protective layer was damaged, the element can reform a new one, so MoSi2 heating elements have a very good anti-oxidation properties, it also means that the heating element can be used on operation for a much longer time than the traditional one.
3.The resistivity of the Mosi2 heating element is not changing with the time, so a new one can be installed without effecting the old one. This can result of the huge saving in furnace maintenance fee sand time as well, increase the working efficiency. This is the key point of Mosi2 heating element being a better material and being widely used.
4. Technical Data
| Density | Bending Strength | Hardness | Apparent Porosity | Water Absorption | Elongation | Fracture Toughness | Compressive Strength |
| 5.8g/cm3 | 350Mpa | 12.0Gpa | ±2% | 0 | 4% | 4.5Mpa.m1/2 | 650Mpa |
| Atmosphere | 1700 Type | 1800 Type |
| Air | 1700 | 1800 |
| N2 | 1600 | 1700 |
| He | 1600 | 1700 |
| -80°C Dry H2 | 1150 | 1150 |
| -20°C Wet H2 | 1450 | 1450 |
| 10%CO2, 50%CO, 15%H2 | 1600 | 1700 |
Packaging & Shipping
1) Packing: from the inside to outer packaging, is foam sponge, carton, wooden case.
2) Transport modes: Sea or Air transportation, TNT, DHL express or FedEx.
3) Please make sure the 'shipping address' is your confirmed address.
4) We do check everything in good condition before we ship your parcel out.
5) We will process your order ASAP after payment is confirmed.
About us:
1. We are a leading and professional enterprise that specializes in the manufacture of high temperature muffle Furnaces
2. Our products have a number of technical patents and have passed the ISO9001 quality system certification and CE certificate.
3. Our products covers 1000/1200/1300/1400/1600/1700ºC muffle furnace, tube furnace, vacuum box furnace, dual(multi) zone tube furnace, industrial furnace, elevator/bottom loading muffle furnace, car-type bottom furnace, etc.
4. After ten years of development, take scientific and strict management system and first-class technology strength, Sante Furnace have provided lots of muffle furnaces for colleges and universities, research institutes, petrochemical plants, petroleum, smelting, casting, machinery manufacturing, military industry, and other industries in China and overseas.
