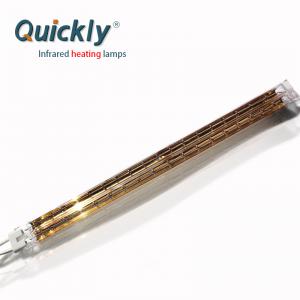

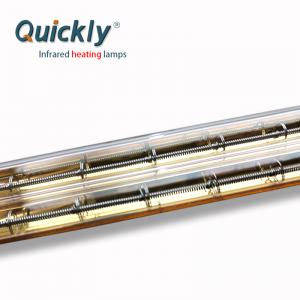

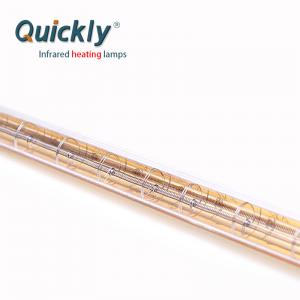

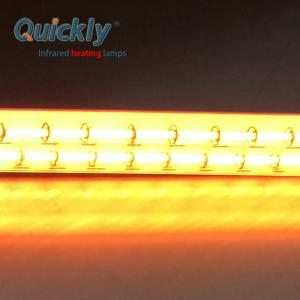

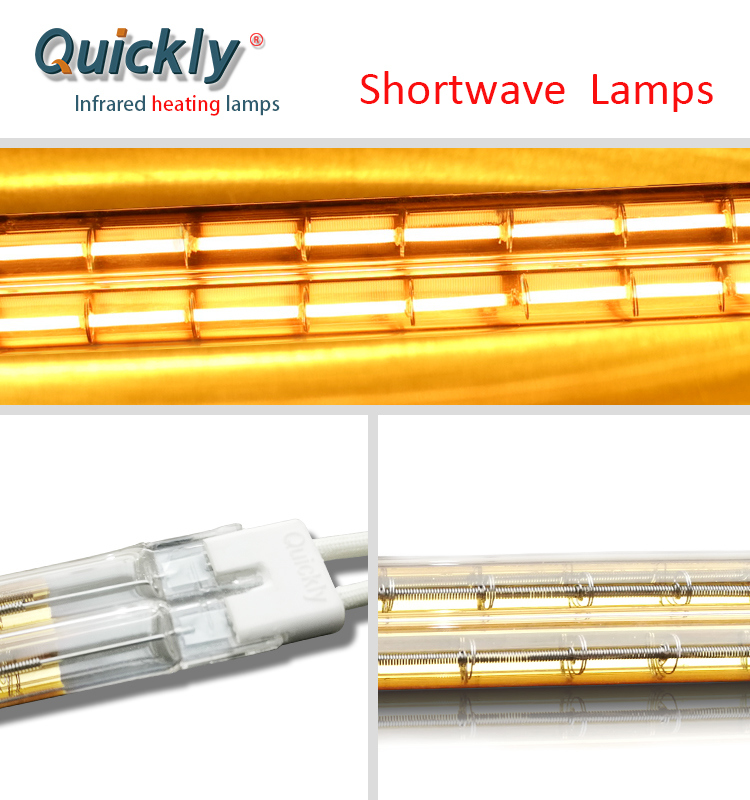

Quartz tube infrared electric heating element 960mm
Twin Tube Short Wave Infrared Heat Lamp Advantages:
Long serving life: usually 5000 hours.
Fast Reaction Time: About 1-2s to achieve full power output.
High thermal effect: Based on wavelength of 0.8-1.4um, get high thermal energy to 62.5%.
Energy Saving: Gold and Ceramic coating maximize reflect Infrared radiation up to 90%, more energy saving, smaller footprint and better heating results.
Green, safe and Environment Protecting: nontoxic and peculiar smell, no risk of contamination over environment or target object to be heated.
| Production Description | Quartz tube infrared electric heating element 960mm | ||
| Tube Diameter | 18*9mm | 23*11mm | 33*15mm |
| Overall Length | 80-1500mm | 80-3500mm | 80-6000mm |
| Heated Length | 30-1450mm | 30-3450mm | 30-5950mm |
| Tube Thickness | 1.2mm | 1.5mm | 2.2mm |
| Max Power | 150w/cm | 180w/cm | 200w/cm |
| Connection Type | lead wire at one or two sides | ||
| Tube Coating | transparent, gold coating, white coating | ||
| Voltage | 80-750v | ||
| Cable Type | 1.silicone rubber cable 2.teflon lead wire 3.naked nickel wire | ||
| Installing Position | Horizontal/Vertical | ||
| All you wanted can be found here - customized service |
RODUCT APPLICATION
Infrared heating is a kind of radiation heating. It spreads by a kind of infrared radiation (light)-- infrared light from material in the form of molecular (atomic) resonance absorption, so as to achieve the purpose of heating. It can be applied in many fields such as the heating process of industry coating, plastic forming, automotive industry, glass making, spinning, solar PV, food baking, drying of printing inks, quick drying of primer and paint on furniture, printed circuit, and so forth.
Why Choose US
A. Material
One of the main material for quartz heater lamps is quartz tube, and quartz tube is made up from quartz sand, the tube we use is made by Quartz IOTA - the high purity quartz sand 99.99% Si02,
the world's leading quartz raw material and hydroxy of quartz tube is 1PPM,in this case, our lamps can work at a higher temp like 1000ºC.
Another main material of quartz lamp is tungsten filament,which is purchased from XIAMEN HONGLU TUNGSTEN MOLYBDENUM INDUSTRY CO., LTD., one of the world's three largest tungsten wire manufacturers, it helps us to get filament with a longer lifespan and higher efficiency.

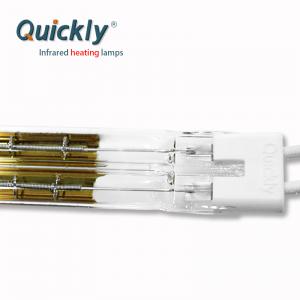

Ceramic end base/cap can stand 1800ºC working temperature.
We use different lead cables based on the practiced working temperature, some of them can be used under a higher temperature up to 750ºC for a long time.
B. Professional heating technology and rich experience
The quartz infrared emitter provided by Hefei Quickly Electric Co.,ltd can easily control the emitted wavelength and color temperature by adjusting the lamp's filament temperature. Our IR lamps have been widely applied into PV solar industry, glass industry, plastic industry, powder coating industry...which helps us to get a rich experience ,knowledge and data to provide better service for our clients.
C. Fast Production
Hefei Quickly 80% workers have a long working years - more than 10 years, they are skillful with lamp production,in this case, we can shorten our production period largely, for instance, we can finish 1000pcs IR lamps with 3 working days.
Our Infrared heater lamps are under standard in CE & ROHS, we have strict quality control to make sure each IR lamp is perfect!
Our Service:
Sample Service
Some samples are free of charge, buyer shoulder the fright cost.
Customized Service
1. All of our infrared heater lamps are customized according to your unique practical request, professional technicians do one-to-one service for you and can customize 1pc IR lamp for your quality testing at the beginning.
2. We offer OEM services, we can print your logo on Infrared heating lamps as your requirements.
After-sale Service
Warranty Time of Short wave Infrared heat lamp: 5,000 hours
Warranty Time of Carbon Fiber Infrared heat lamp: 10,000 hours
Warranty Time of Medium wave Infrared heat lamp: 20,000 hours
During the warranty time, any non-man-made quality issue, once confirmed, we will sent the new replacement immediately without any charge.
NO. 5 FAQ
1. Are you a factory or trading company?
A: We are a professional factory of Infrared heater lamp.
2. How you do quality control?
A: We have the most professional tech team and experienced workers, from material choosing,production process to final packing,all are under strictly control to make sure you can get the qualified quartz infrared emitters.
3. Are you a member of Alibaba Trade Assurance?
A: Glad to tell you that we have joined the Trade Assurance on Alibaba to protect your payment to make sure that we delivery on time and manufacture quality infrared heater lamp as required.
4. How can I get samples?
A: We are honored to offer you samples.
5. How to protect your rights and interests?
A: You can place orders for quartz heater lamps by Trade Assurance, a new service provided by Alibaba. They will be the third part to safe guarding your payment before you receive satisfied IR heat lamps in hands.
