Electric Cartridge Heater Element with Elbow

------------------------------------------   Products  -------------------------------------------Electric Cartridge Heater Element with ElbowCartridge heater has many types, this products is stainess steel heating element, mainly used for 3D prin

Technical Feature

  • Shanghai, China
  • 10000PCS/Month
  • L/C, T/T, D/P, Western Union, Paypal, Money Gram
  • RoHS, CE
  • Far Outside Heating Tube
  • Stainless Steel +Heating Wire
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$0~3.9

PRIMARY PARAMETERS

Model NO.
Electric Cartridge Heater Element with Elbow
Sheath Material
SUS304 for Cartridge Heater
Wattage Tolerance
+5%, -10%
Resistance Tolerance
+10%, -5%
Voltages Available
12V
Max Operating Temp
800
Length Tolerance
1 Mm
Diameter Tolerance
0.02mm
Standard Cold Zone
5-10mm
Insulation Resistance (Cold)
500
Trademark
Hongtai
Transport Package
Carton or Wooden Case
Specification
380V, 240V, 220V, 110V, 36V, 24V or 12V
Origin
China
HS Code
85168000

DETAIL DESCRIPTION

------------------------------------------   Products  -------------------------------------------

Electric Cartridge Heater Element with Elbow
Cartridge heater has many types, this products is stainess steel heating element, mainly used for 3D print,packing machine,labelling machines and hot stamping and so on.  also we have other heating element, for details pls contact us freely.
Electric Cartridge Heater Element with Elbow

  • Customized cartridge heater fire ignite rod with Handle
  • Sheathmaterial:SUS201,304,321,316, and Incoloy800,840
  • Wattage Tolerance:+5%, -10%
  • Resistance tolerance:+10%, -5%
  • Voltages available:380V,240V, 220V,110V,36V,24V or 12V
  • Max operating temp:800ºC
  • Length tolerance:±1 mm
  • Diameter tolerance:-0.02mm
  • Standard Cold Zone:5-10mm
  • Thermocouple Location:type J or K are available
  • Insulation resistance (cold): ≥ 500 MΩ
  • Maximum leakage current (cold):≤ 0.5 mA


------------------------------------------  Detail Picture  -----------------------------------

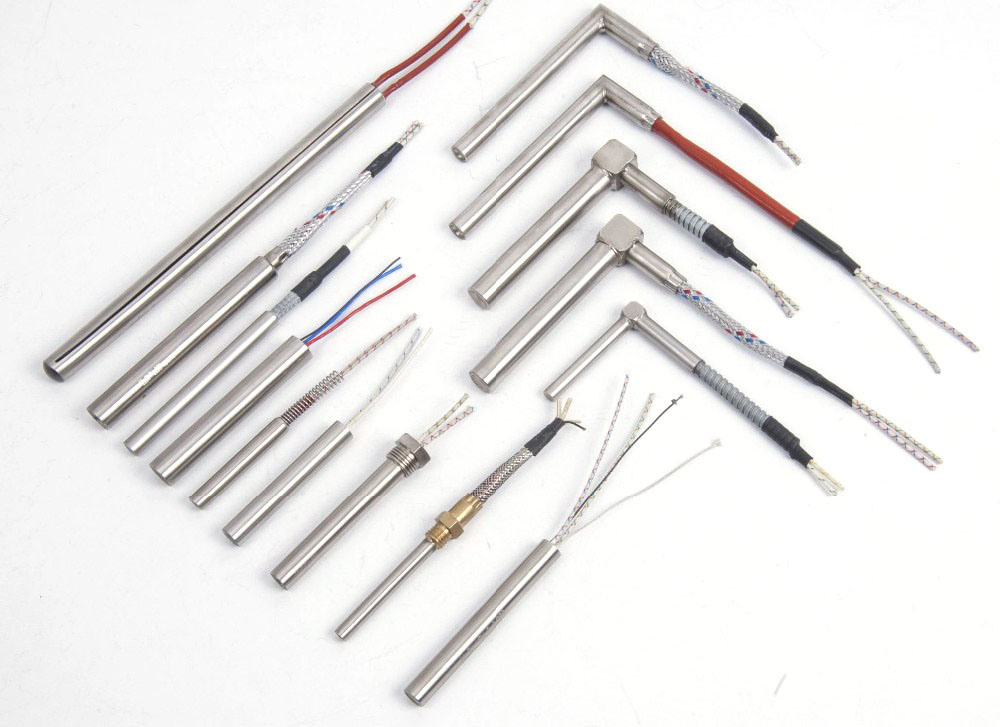

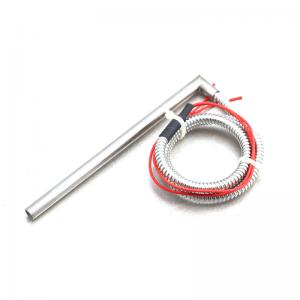

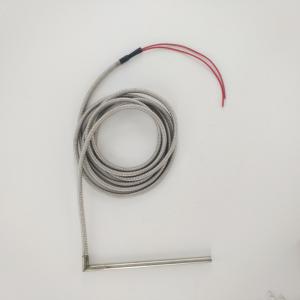

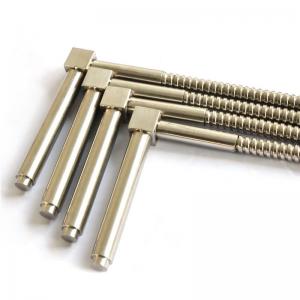

Electric Cartridge Heater Element with Elbow
Electric Cartridge Heater Element with Elbow




------------------------------------------  Company -------------------------------------------

Electric Cartridge Heater Element with Elbow

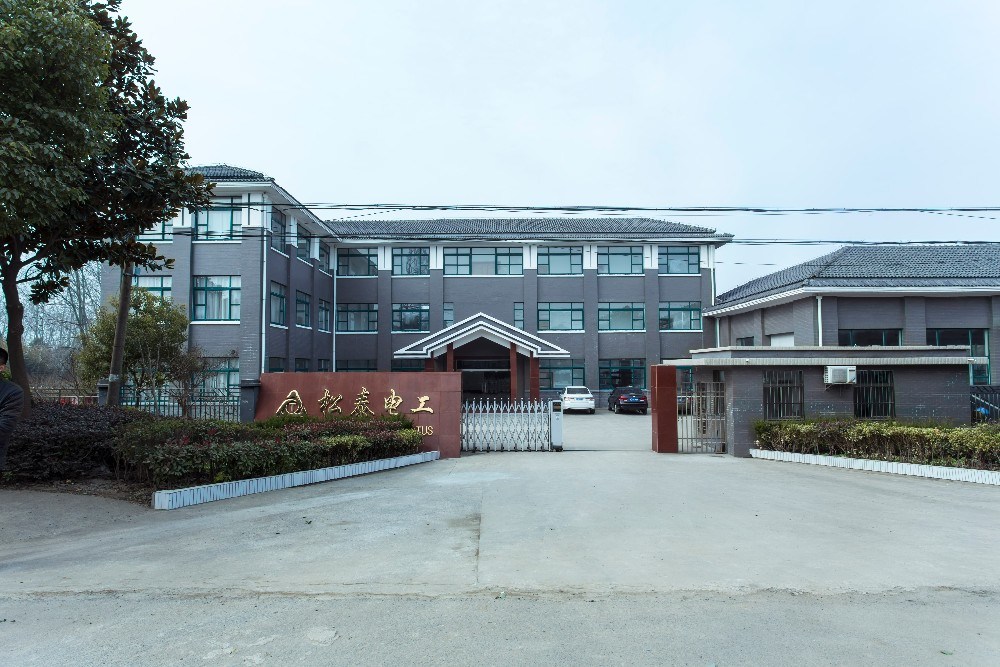

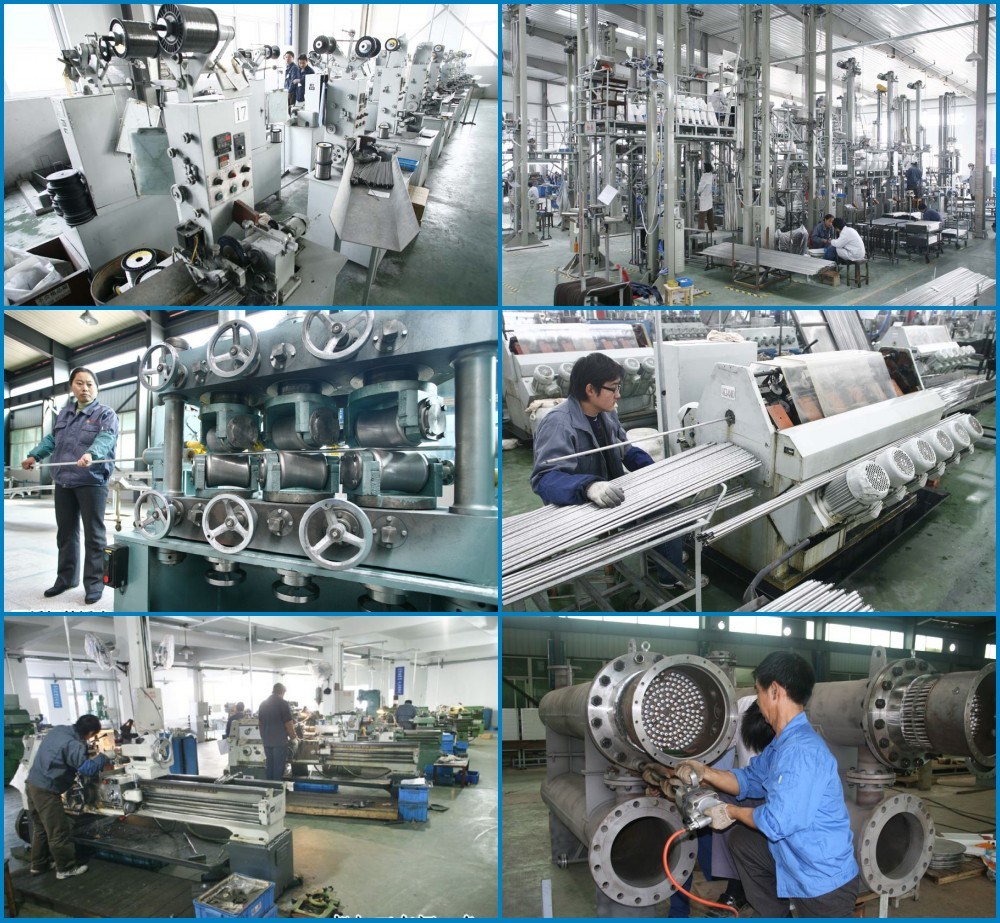

Factory
Electric Cartridge Heater Element with Elbow



------------------------------------------  Certification --------------------------------------

Electric Cartridge Heater Element with Elbow


------------------------------------------  Others --------------------------------------------------

Packaging for Cartridge heater

1)  plastic bag + carton for cartridge heater

2)  wooden box for cartridge heater



Shipping for cartridge heater

1) shipping by express (sample order) or by sea(bulk order)

2) worldwide shipping service available



 -------------------------------------------------------------------------------------------


Send your Inquiry Details in the Below, Click "Send" Now! Free samples are waiting for you.









Send Consultations Sending PUBLIC question and getting response from the supplier

Send Only your public informations will be shown

All Consultations

See More
Send Standard Inquiry

Yancheng Hongtai Alloy Electric Apparatus Co., Ltd.

Tubular Heater;Cartridge Heater;Coil Heater;Ceramic Heater;Band Heater;Silicone ...

China
Supplier Page Contact Supplier

Products From Supplier

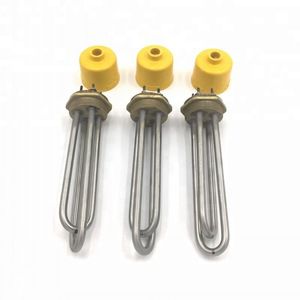

electric heating element with temperature control
