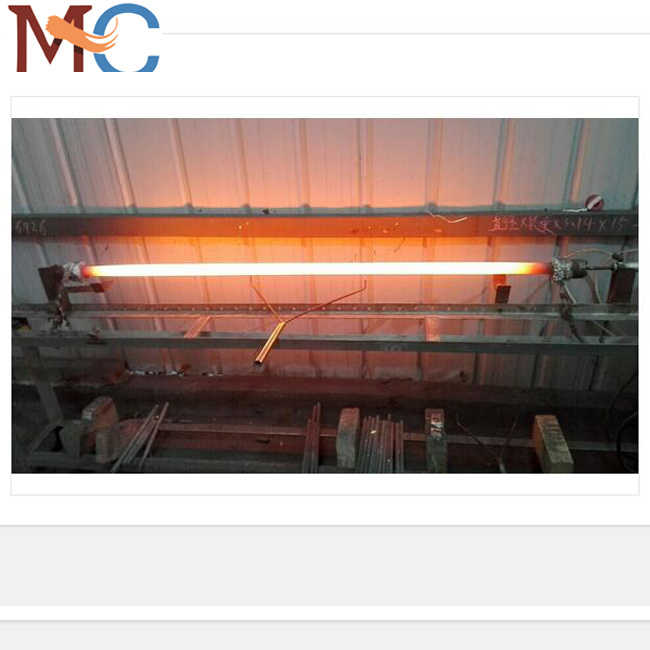

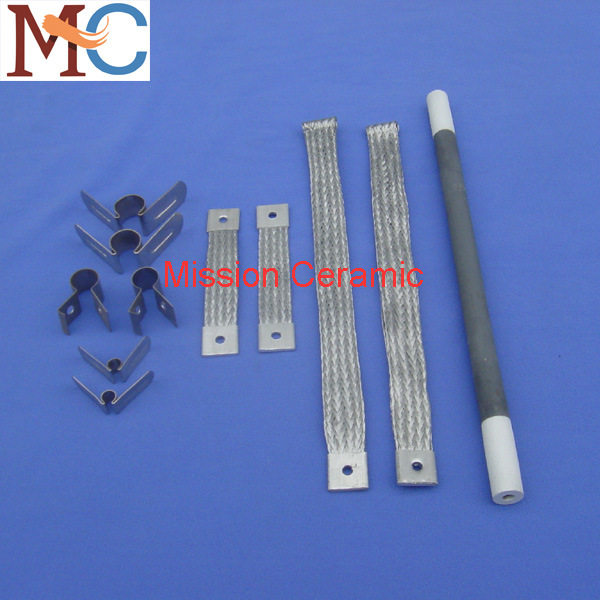

DB shape Silicon carbide electric heating elements
DB shape Silicon carbide electric heating elementsis our main product.Mission can supply high quality Silicon Carbide (SiC) heating elements.
DB shape Silicon carbide electric heating elements Specifications
1. High working temperature: 1400C.
2. Long time last.
3. Varous type available. Rod, U, W, Single Spiral, Double Spiral
Mission SiC heating elements Advantage .
1. High working temperature: 1500C (Surface Temperature)
2. Various shapes: Rod, U, W, Single Spiral, Doule Spiral shapes are availible.
3. Large size range: Diameter 14-54mm, Length 200-4500mm.
4. Fast Delivery: Normal quantity can be ready in 10 days.
5. Very competitive prices.
Mission SiC heating elements Standard Sizes .
Other sized SiC elements can be made according to your need!
How to Order Mission SiC heating element
1. Choose the shape you need, like Rod, U, W, Single Spiral etc.
2. Out Diameter (OD)
3. Heating Zone Lengh (HZ)
4. Overall Length (OL)
5. Resistance you need.
Order Sample: Rod type, OD30mm, HZ300mm, OL800mm, Resistance 0.4ohms.
Mission SiC heating element is widely used in high temperatue furnaces, It can be used in air, vacuum and other protection gase enviroments.
I believe you will like our SIC heating elements.
1. Alumina ceramic products, including tubes, rods, crucibles, plates, and other part made by your
Design.
2. Zirconia Ceramic products, including tubes, crucibles, plates and other parts as you need.
3. Silicon carbide ceramic products, includng beams, plates, tubes, crucibles etc.
4. Boron nitride ceramic products, including plates, crucible, and other parts as you need.
5. Alumina ceramic fiber products, including fiber, board, and other parts as you need.
6. Heating elements, including MoSi2 heating element and MoSo2 heating element.
If you are intersted in any of our products, please contact with us. We will try our best to provide good products and sevice!
Zhengzhou Mission Ceramic Products Co., Ltd
Tel: 86-371-56689683
Mob:86-152-8681-8691
Fax: 86-371-61176723
Website: www.mscera.com
DB shape Silicon carbide electric heating elementsis our main product.Mission can supply high quality Silicon Carbide (SiC) heating elements.
DB shape Silicon carbide electric heating elements Specifications
1. High working temperature: 1400C.
2. Long time last.
3. Varous type available. Rod, U, W, Single Spiral, Double Spiral
Mission SiC heating elements Advantage .
1. High working temperature: 1500C (Surface Temperature)
2. Various shapes: Rod, U, W, Single Spiral, Doule Spiral shapes are availible.
3. Large size range: Diameter 14-54mm, Length 200-4500mm.
4. Fast Delivery: Normal quantity can be ready in 10 days.
5. Very competitive prices.
Mission SiC heating elements Standard Sizes .
| Diameter | Heating zone Length | Cold zone Length | Overall length | Range of resistance |
| 14mm | 100-500mm | 150-350mm | 400-1200mm | 0.7-5.6 ohms |
| 16mm | 200-600mm | 150-350mm | 500-1600mm | 0.7-4.4 ohms |
| 18mm | 200-800mm | 150-400mm | 500-1600mm | 0.7-5.8 ohms |
| 20mm | 200-800mm | 200-600mm | 600-2000mm | 0.6-6.0 ohms |
| 25mm | 200-1200mm | 250-700mm | 700-2600mm | 0.4-5.0 ohms |
| 30mm | 300-2000mm | 250-800mm | 800-3600mm | 0.4-4.0 ohms |
| 35mm | 400-2000mm | 250-800mm | 900-3600mm | 0.5-3.6 ohms |
| 40mm | 500-2700mm | 250-800mm | 1000-4300mm | 0.5-3.4 ohms |
| 45mm | 500-3000mm | 250-750mm | 1000-4500mm | 0.3-3.0 ohms |
| 50mm | 600-2500mm | 300-750mm | 1200-4000mm | 0.3-2.5 ohms |
| 54mm | 600-2500mm | 300-750mm | 1200-4000mm | 0.3-3.0 ohms |
How to Order Mission SiC heating element
1. Choose the shape you need, like Rod, U, W, Single Spiral etc.
2. Out Diameter (OD)
3. Heating Zone Lengh (HZ)
4. Overall Length (OL)
5. Resistance you need.
Order Sample: Rod type, OD30mm, HZ300mm, OL800mm, Resistance 0.4ohms.
Mission SiC heating element is widely used in high temperatue furnaces, It can be used in air, vacuum and other protection gase enviroments.
I believe you will like our SIC heating elements.
1. Alumina ceramic products, including tubes, rods, crucibles, plates, and other part made by your
Design.
2. Zirconia Ceramic products, including tubes, crucibles, plates and other parts as you need.
3. Silicon carbide ceramic products, includng beams, plates, tubes, crucibles etc.
4. Boron nitride ceramic products, including plates, crucible, and other parts as you need.
5. Alumina ceramic fiber products, including fiber, board, and other parts as you need.
6. Heating elements, including MoSi2 heating element and MoSo2 heating element.
If you are intersted in any of our products, please contact with us. We will try our best to provide good products and sevice!
Zhengzhou Mission Ceramic Products Co., Ltd
Tel: 86-371-56689683
Mob:86-152-8681-8691
Fax: 86-371-61176723
Website: www.mscera.com
China
