86x1019.5 M/E F.O.AUTO FINE FILTER ELEMENT,notch wire filter element
Xinxiang Tianrui Hydraulic Equipment Co.,ltd is one of the top 5 companies on the globe manufacturing widest range of notch wire filter strainer elements. We also take pride in being the unique factory for notched wire element in China.

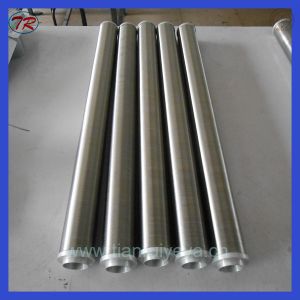

Notched wire element is constructed from notch wire that is made from tightly-coiled stainless steel wire. The element filters via the gaps between the stainless steel wires. It has a simple structure and robust form, allowing very accurate setting of the filtering passage size. In addition, because the element is not subject to corrosion or deterioration, and impurities adhered to the element can easily be eliminated by backwashing or air blowing.
Technical Diameters for Notch Wire filter element
Other NW filter element we exported before.
Company Description.
Xinxiang Tianrui Hydraulic Equipment Co.,ltd has specialized in manufacturing filter equipment 15 years.Our filters has been certified by ISO9001:2008.Our industrial filter element are widely used in Machinery,Aviation,Railway,Power plant,Steel industry,Chemicals and Textile etc
Featured products as following:
Hydraulic line filter strainers and elements;
Filter element cross reference;
Air compressor filters element replacement;
Industrial air filter bag,filter box,filter panel;
Aviation fuel filter and hydraulic filter;
Diesel locomotive filters for railway;
Dust collector filters cartridge;
Stainless steel sintered felt filter cartridge and filter disc;
Notched wire filter element
Company Strength.
Professional technical data systems guaranteed the correctness of filter.
Filtration Specialists with 15 years experience.
OEM Service for you and satisfy different markets demand.
Carefully Test before delivery.
Quality guaranteed by ISO 9001:2008
Vendors for Eaton Filtration China Branch.
Company Service:
1.Consulting Service and finding solution for any problems in your industry.
2.Designing and manufacturing as your request.
3.Analyze and make drawings as your pictures or samples for your confirmation.
4.Warm welcome for your business trip to our factory.
5.Perfect after-sales service to manage your quarrel
If you have any enquiry for notched wire element,Pls notice me technical drawings, diameters and photos etc.
So I can offer good price for you.
Xinxiang Tianrui Hydraulic Equipment Co.,ltd is one of the top 5 companies on the globe manufacturing widest range of notch wire filter strainer elements. We also take pride in being the unique factory for notched wire element in China.
Notched wire element is constructed from notch wire that is made from tightly-coiled stainless steel wire. The element filters via the gaps between the stainless steel wires. It has a simple structure and robust form, allowing very accurate setting of the filtering passage size. In addition, because the element is not subject to corrosion or deterioration, and impurities adhered to the element can easily be eliminated by backwashing or air blowing.
Technical Diameters for Notch Wire filter element
| OD | 22.5mm,29mm,32mm,64mm,85mm,102mm or your requested diameters. |
| Length | 121mm,131.5mm,183mm,187mm,287mm,747mm,1016.5mm,1021.5mm,or as your requested diameters |
| Filtration rating | 10micron,20micron,30micron,40micron,50micron,100micron,200micron or as your requested filtration rating. |
| Material | Aluminum cage with 304.316L notched wire |
| Filtration Direction | Outside to Inside |
| Application | Automatic lubricating oil filter or fuel oil filter |
Other NW filter element we exported before.
| OD | Technical diameters | Filtration rating |
| 22.5mm OD | 22.5*131.5mm | 10 mircon |
| 22.5*131.5mm | 50 mircon | |
| 24mmOD | 24*137mm | 30 mircon |
| 24*80mm | 10 mircon | |
| 29mm OD | 29*121mm | 25 mircon |
| 29*121mm | 50 mircon | |
| 15*29*221mm | 10 mircon | |
| 15*29*221mm | 50 mircon | |
| 15*29*221mm | 25 mircon | |
| 32mm OD | 32*187mm | 50 mircon |
| 32*187mm | 10 mircon | |
| 20*32*183mm | 50 mircon | |
| 32*183.5mm | 10 mircon | |
| 32*228mm | 50 mircon | |
| 32*278 | 50 mircon | |
| 32*287mm | 10 mircon | |
| 32*287mm | 50 mircon | |
| 32*287mm | 25 mircon | |
| 34*287mm | 50 mircon | |
| 31*182mm | 25 mircon | |
| 32.5*411mm | 50 mircon | |
| 42*151mm | 80 mircon | |
| 45*367mm, | 40 mircon | |
| 50mm OD | 50*381mm | 10 mircon |
| 50*381mm | 40 mircon | |
| 51mm OD | 51*273mm | 10 mircon |
| 51*530mm | 50 mircon | |
| 51*747mm | 25 mircon | |
| 51*378mm | 40 mircon | |
| 52mm OD | 52*274mm | 30 mircon |
| 52*384mm | 50 mircon | |
| 52*273mm | 50 mircon | |
| 52*611mm | 50 mircon | |
| 61,5*369mm | 50 mircon | |
| 64mm OD | 64*747mm | 40 mircon |
| 64*327mm | 40 mircon | |
| 64*505mm | 50 mircon | |
| 72mm OD | 72*516mm | 50 mircon |
| 72*452mm | 50 mircon | |
| 73*859mm | 40 mircon | |
| 75*58.5*264mm | 50 mircon | |
| 85mm OD | 85*1016.5mm | 50 mircon |
| 85*60*1021.50mm | 50 mircon | |
| 85*762mm | 50 mircon | |
| 86*1019.5mm | 40 mircon | |
| 105*1097mm | 50 mircon | |
| 102*250mm | 200 mircon |
Company Description.
Xinxiang Tianrui Hydraulic Equipment Co.,ltd has specialized in manufacturing filter equipment 15 years.Our filters has been certified by ISO9001:2008.Our industrial filter element are widely used in Machinery,Aviation,Railway,Power plant,Steel industry,Chemicals and Textile etc
Featured products as following:
Hydraulic line filter strainers and elements;
Filter element cross reference;
Air compressor filters element replacement;
Industrial air filter bag,filter box,filter panel;
Aviation fuel filter and hydraulic filter;
Diesel locomotive filters for railway;
Dust collector filters cartridge;
Stainless steel sintered felt filter cartridge and filter disc;
Notched wire filter element
Company Strength.
Professional technical data systems guaranteed the correctness of filter.
Filtration Specialists with 15 years experience.
OEM Service for you and satisfy different markets demand.
Carefully Test before delivery.
Quality guaranteed by ISO 9001:2008
Vendors for Eaton Filtration China Branch.
Company Service:
1.Consulting Service and finding solution for any problems in your industry.
2.Designing and manufacturing as your request.
3.Analyze and make drawings as your pictures or samples for your confirmation.
4.Warm welcome for your business trip to our factory.
5.Perfect after-sales service to manage your quarrel
If you have any enquiry for notched wire element,Pls notice me technical drawings, diameters and photos etc.
So I can offer good price for you.
