Plastic PVC Water Connector Pipe Fittings Mould

Plastic PVC Water Connector Pipe Fittings Mould Longxiang IntroductionLongxiang Group Limited was established in Guangzhou city in 1998. After over 15 years of hard work, Longxiang has grown to be one of the highest reputable mould maker in China wi

Technical Feature

  • Shenzhen, China
  • 100 Set Per Month
  • L/C, T/T, D/P, Western Union, Paypal, Money Gram
  • Injection Mould
  • Polishing
  • Multi Cavity
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$0~1

PRIMARY PARAMETERS

Runner
Cold Runner
Design Software
UG
Installation
Fixed
Certification
CE, ISO
Standard
Lkm, Hasco, Dme
Customized
Customized
Place of Origin
Guangdong China(Mainland)
Part Material
PE, PVC ABS, PC, PP, POM, PA6( PA66, GF Filled)
Mould Steel
P20, H13, 718h, Nak80, S136, 2311, 2344, 8407
Mould Life
300, 000-1, 000, 000shots
Mould Runner
Cold or Hot Runner
Delivery Time
25-30 Working Days
Trademark
Longxiang
Transport Package
Bubble, Foam, Carton, Plastic Box, Wooden Case
Specification
80--1680T injection machine
Origin
China
HS Code
8480719090

DETAIL DESCRIPTION

Plastic PVC Water Connector Pipe Fittings Mould

Longxiang Introduction

Longxiang Group Limited was established in Guangzhou city in 1998. After over 15 years of hard work, Longxiang has grown to be one of the highest reputable mould maker in China with 120 employees' 5000 sq. Meter working shop.

Up to now, Longxiang has exported about 2400 sets of moulds to 38 countries. The moulds we made include automotiveparts (dashboards, inner decorating accessories, etc.), electrical appliances (washing machine, air conditioner,refrigerator, television, etc.), IT industry products (cell phones, computer, etc.), householder products(micro-wave oven, juicer, etc.), office accessories (telephone, printer, etc.) as well as other various of products.

We look forward to participating at the success of your next project.


Our advantages:

1. Standarized collapsible parts to ensure the PVC diameter
2. High quality stainless steel for mould life
3. Excellent polish to make fittings with better surface looking
4. Professional cooling design in collapsible parts to improve mould cycle time and of course the production time
5. Special design to guarantee the moulds fit on smaller Injection Molding Machine
6. Punctual sample time / delivery time
7. Weekly report with processing photos for clients
8. Each mould trial out vedios and samples available
9. All mould components standarized to make sure easier future replacement

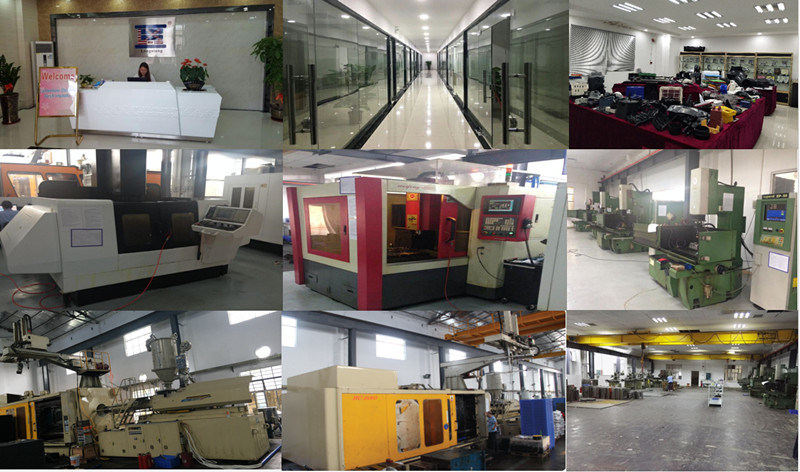

Worshop show

Plastic PVC Water Connector Pipe Fittings Mould

Mold Specification
Mold Material45#,P20 steel, 718, 2738, H13,
NAK80, 2344, 2343, S136, etc .
Mold TypePlastic Injection Molding
Product MaterialABS,PA,PA66+GF,POM,PC,PP,PET,TPE,PVC,HDPE,etc
Mold StandardHASCO, DME, MISUMI, JIS, LKM, etc.
Mold Tooling EquipmentLathe,Milling,Grinder,Drill,CNC,EDM,
Wire cut machine,Punch machine
Injection Mold Machine80T to 2800T
Product Weight50-20000g
GateTypeSide Gate, Sub Gate, Direct Gate,
Hook Gate, Pin Point Gate, etc.
Runner TypeCold Runner or Hot Runner
CavitySingle or Multi cavities
TreatmentHeat treatment and Nitriding,polish ect.
Mold Life45#:50,000 to 100,000 shots
P20:100,000 to 200,000 shots
718: 200,000 to 300,000 shots
H13: 300,000 to 500,000 shots
Lead TimeGenerally mold making will take around 30 days
7-10  day to mass production
PackageWooden packing box for molds
inner packed in opp bags,
outside packed in standard export carton

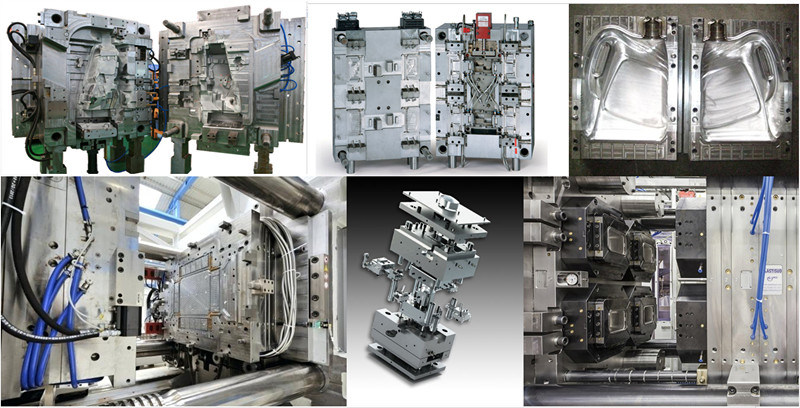

Mould show

Plastic PVC Water Connector Pipe Fittings Mould

Plastic PVC Water Connector Pipe Fittings Mould

Our team

Plastic PVC Water Connector Pipe Fittings Mould

Tooling Developing Procedure:

Quotation: We need your require clearly
Negotiation: Material, cavity, price, delivery time, payment term, etc.
Order: According your own design or choice our design
DFMEA: Deign failure mold & Effect analysis to reduce risk
Mold design:  2D/3D drawing
Cutting Tooling Notice: After customer approve the mould design will start making mould
Weekly Report: We will update the mold schedule every week
Sample Confirm: Send you sample for conform it, if not satisfied by customer. We modify mould.
Delivery Mold: Delivery mould after customer approve sample and arrange shipment



 FAQ
1. Q: Which kind of product can you do?
     A: Plastic injection molding and mass production for plastic parts.
2.  Q: Which kind information need for quotation?
      A: 1) Sample photo with size or 2D/3D design
          2) Product material
          3) The quantity
          4) Runner type, cold or hot
          5) Mould steel type, P20, 718, 2738, H13, S136, 2316, an so on.
3.  Q: I have no 3D drawing, how should I start the new project?
      A: You can supply us a sample or tell me your idea,we will help to finish the  3D drawing design.
4. Q: How long will be the injection mold finished?
     A: Usually it will take about one month to finish the mold.
5. Q: How about the samples?
     A: After mold finished, We will make some samples for you to check as soon as we finish the mold and then deliver  the samples for you to check.
6. Q: How about the mould modify?
     A: You can tell us your comment about the samples after you receive them.If there is any dimension different from the drawing,we will modify the mold for free in our side and then make the new samples.
7. Q: How about the proprietary rights of the plastic injection mold?
      A: Customer paid the mould so it all belong to Customer.
8. Q: How about the surface treatment?
    A: Metallization (chrome, gold, silver) / Painting (hand, screen, automated) /Vacuum plating / Lithography
         / Custom texturing/ Hydrographics


Why Choose Longxiang?
Manufacturing and exporting experience for over 20 years. ISO 9001 approved
Products are supplied to over 50 countries.
One-stop service for aluminum profiles, plastic parts, rubber parts, and moulds. Save time and save money for you.
In-house mold design and building capabilities.
No reclaimed material used to ensure high quality.
Keep secret to your idea and your design.
24 hours (two shifts) / 6 days for production.
Professional design team, mold maker engineer. OEM/ODM service.
Professional QC and R&D teams to assure high quality.
Professional sales team. Good English capabilities and communication skills.
No MOQ.
Prompt delivery. For prototype: 3-7 days. Production orders can be arranged specially to meet customer's urgent demands.
Geographical advantages: within 30 minutes to airport or sea port, near to Hongkong.


Material Specification
Material typeAbbrDescription and typical applications
Acrylonitrile Butadiene StyreneABSOpaque & tough / Phones & computers
PolypropylenePPOpaque & tough / Beer crates
PolystyrenePSClear & Brittle / Toys & model kits
Polystyrene High ImpactHIPSOpaque & tough / Toys & model kits
AcetylPOMNatural & very tough / Gears & bearings
PolycarbonatePCClear and very tough / Street lamp covers & safety
helmets
Plasticized PolyvinylchloridePVCOpaque & flexible / Shoe soles & electrical insulation
Polyamide 6PA6Opaque & very tough / Bushes, bearings & curtain
fittings
Polyamide 6.6PA6.6Opaque, tough and rigid / Housings & handles
Polyamide 12PA12Opaque tough & rigid / Air filters & spectacle frames
Polyethylene low densityLDPEWaxy tough & flexible / Kitchenware & sealing lids
Polyethylene high densityHDPEWaxy tough & stiff / Crates & chair seats
Thermoplastic ElastomerTPE Flexible & tough / Seals & washers
Thermoplastic RubberTPRFlexible & tough / Seals & washers
AcrylicPMMATransparent & Brittle / Lenses & car lights &Display
Polystyrene General PurposeGPPSClear & brittle / Ball point pen barrels
Polyphenylene SulphidePPSBrown & very strong / Guides & bearings
Polyphenylene OxidePPOTough & stable / Electrical parts
Rigid Polyvinyl ChlorideUPVCOpaque & tough / Fascia fittings & guttering
Styrene AcrylonitrileSAN / ASClear & brittle / Table & picnic ware
Polyether SulphonePESClear & tough / Metal replacement parts
Cellulose AcetateCAClear & tough / Spectacle frames
