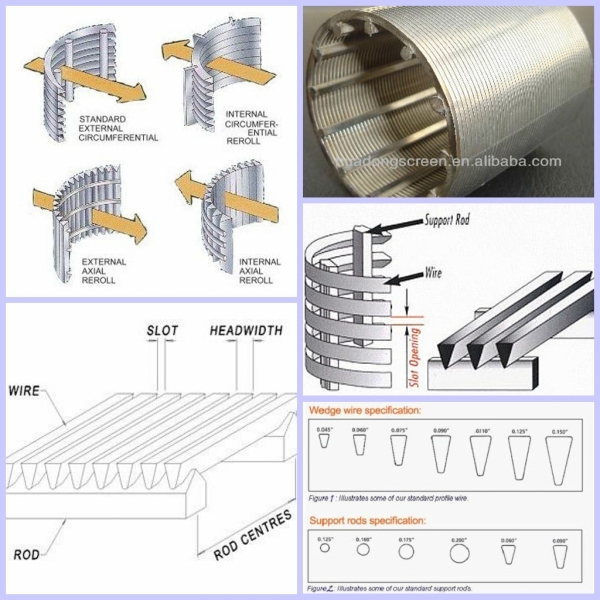

SS316L Water Well Filter/Stainless Steel Wire Wrapped Screen consist of V-shape profile wire and the longitudinal support rods. Each intersecting point of these wires is fusion welded, so Water Well Screens has sturdy constriction and good mechanical property. The V-shape section plane can avoid blockage and make sure of the unimpeded water.
The consecutive slot have more open area, and it can reduce the speed of the water entering to avoid the sand entering the Water Well Screens under the great pressure, so it can filter sand better. Meanwhile, the slot of Water Well Screens can change according to the real condition of the earth.
Advantage:
MAXIMIZING FLOW RATES
When considering screens of equal length, diameter and slot size, flow rates through V-shaped well screens can be;
Three times higher than bridge-slot screens
Nine times higher than slotted casing
NON-CLOGGING SLOT
Continuous-slot well screens have V-shaped openings that narrowest at the outer face and widen inwardly, thus, oversized particles are retained outside the screen and particles passing through the narrow outside opening can enter the screen.
REDUCTIONS IN OPERATING COSTS
By using a Continous-slot well screen, savings can be achieved in pumping costs. Lower through-slot velocities mean that pressure drops are minimized, therefore;
Drawdowns are reduced.
Less energy is needed for pumping.
Flow rates are increased.
Less sand in the water reduces wear on the pumps.
Specifications:
Character:
1. Screens with high open area are more suitable for the construction of high-quality water wells, oil wells and gas wells.
2. Low cost operation Screens with high open area shall favor groundwater infiltration. Abundant water shall reduce the water level's down, thus to save energy consumption.
3. Reduce the abrasion of the pump Under the same condition, high open area can make the speed of groundwater's entering into the screen much slower than any other filtration apparatus, which will avoid sand's entering into screen because of high pressure, thus reduce the abrasion of the pump.
4. Extend the life span of wells Comparatively, groundwater's entering into screen with higher open area is much easier than the entering into lower open area screen. The slow water flow shall extend the life span of wells.
Application of stainless steel wire wrapped screen pipe
The continuous-slot well screen is widely used throughout the world for water, oil, and gas wells, and is the dominant screen type used in the water well industry.
1.The continuous-slot well screen is recommended in the following situations;
2.Water wells where gravel packs will be installed
3.Thin aquifers, where maximum open area is required
4.Formation comprised of small or fine particles
5.Small diameter wells
Product display:
Note:
1. Materials: stainless steel and low carbon , such as 201 304 304L 316 316L Q235, and they can be made according to the customers requirement.
2. Diameter: 89-1000mm
3. Slot:0.05, 0.1, 0.2, 0.5, 0.75, 1, 1.5
4. Length: 3m&6m (5.8m for the 20ft container)
6. Connection: Welding, Thread (STC,LTC,BTC),Flange
7. Supply capacity: 6800m/month
8. First class technology, High quality, Competitive price, Fast delivery
Package:
About Huadong:
Huadong screen Co., Ltd has emerged as the leading screens manufacture in China, such as wedge wire screen, bridge slot screen, perforated casing pipe, slotted casing pipe, spiral pipe, Multilayer Johnson v wire screen with ISO and CE certification and have been 20 years in this field. Our product well recognized by industry professional at home and abroad, base on their products have earned it a reputation in China and found their way into the international markets.
The reason why you choose us:
Professional technology, Completed testing equipment
We have 20 years experience in this field, we go in for technical innovations to improve the quality of products. in recent years, our products not only to be high-quality, safe and reliable, but also of beautiful appearance.
Small profits but quick turnover
Our Scale Production will offer you a lower price, which can help our customer to get more profile without to pay a heavy price.
Perfect After Sale Service10 years' warranty
With a comprehensive after- sale system , and 10 years of Warranty a comprehensive solution to our customers to worry about .Also it is a important reason why so many customer to choose us
More question or interest for , please feel free to contact with us:
The consecutive slot have more open area, and it can reduce the speed of the water entering to avoid the sand entering the Water Well Screens under the great pressure, so it can filter sand better. Meanwhile, the slot of Water Well Screens can change according to the real condition of the earth.
Advantage:
MAXIMIZING FLOW RATES
When considering screens of equal length, diameter and slot size, flow rates through V-shaped well screens can be;
Three times higher than bridge-slot screens
Nine times higher than slotted casing
NON-CLOGGING SLOT
Continuous-slot well screens have V-shaped openings that narrowest at the outer face and widen inwardly, thus, oversized particles are retained outside the screen and particles passing through the narrow outside opening can enter the screen.
REDUCTIONS IN OPERATING COSTS
By using a Continous-slot well screen, savings can be achieved in pumping costs. Lower through-slot velocities mean that pressure drops are minimized, therefore;
Drawdowns are reduced.
Less energy is needed for pumping.
Flow rates are increased.
Less sand in the water reduces wear on the pumps.
Specifications:
| SIZE (INCH) | O.D (MM) | SLOT (INCH) | LENGTH (M) | COLLAPSE STRENGTH (PSI) | TENSILE WEIGHT (TON) | WRAP(thick*deep) (MM) | RODS (MM) |
| 4 | 117 | 0.040 | 3 | 395 | 6 | 2.2*3.0 | 3.8MM/22 |
| 4 | 114.3 | 0.040 | 3 | 395 | 6 | 2.3*3.0 | 3.8MM/22 |
| 6 | 168.3 | 0.040 | 3 | 252 | 8 | 2.3*3.5 | 3.8MM/32 |
| 8 | 219.1 | 0.010 | 3 | 399 | 10.5 | 3.0*5.0 | 3.8MM/48 |
| 8 | 219.1 | 0.020 | 3 | 370 | 10.5 | 3.0*5.0 | 3.8MM/48 |
| 8 | 219.1 | 0.040 | 3 | 323 | 10.5 | 3.0*5.0 | 3.8MM/48 |
| 10 | 273.1 | 0.010 | 3 | 206 | 11 | 3.0*5.0 | 3.8MM/50 |
| 10 | 273.1 | 0.020 | 3 | 191 | 11 | 3.0*5.0 | 3.8MM/50 |
| 10 | 273.1 | 0.040 | 3 | 167 | 11 | 3.0*5.0 | 3.8MM/50 |
Character:
1. Screens with high open area are more suitable for the construction of high-quality water wells, oil wells and gas wells.
2. Low cost operation Screens with high open area shall favor groundwater infiltration. Abundant water shall reduce the water level's down, thus to save energy consumption.
3. Reduce the abrasion of the pump Under the same condition, high open area can make the speed of groundwater's entering into the screen much slower than any other filtration apparatus, which will avoid sand's entering into screen because of high pressure, thus reduce the abrasion of the pump.
4. Extend the life span of wells Comparatively, groundwater's entering into screen with higher open area is much easier than the entering into lower open area screen. The slow water flow shall extend the life span of wells.
Application of stainless steel wire wrapped screen pipe
The continuous-slot well screen is widely used throughout the world for water, oil, and gas wells, and is the dominant screen type used in the water well industry.
1.The continuous-slot well screen is recommended in the following situations;
2.Water wells where gravel packs will be installed
3.Thin aquifers, where maximum open area is required
4.Formation comprised of small or fine particles
5.Small diameter wells
Product display:
Note:
1. Materials: stainless steel and low carbon , such as 201 304 304L 316 316L Q235, and they can be made according to the customers requirement.
2. Diameter: 89-1000mm
3. Slot:0.05, 0.1, 0.2, 0.5, 0.75, 1, 1.5
4. Length: 3m&6m (5.8m for the 20ft container)
6. Connection: Welding, Thread (STC,LTC,BTC),Flange
7. Supply capacity: 6800m/month
8. First class technology, High quality, Competitive price, Fast delivery

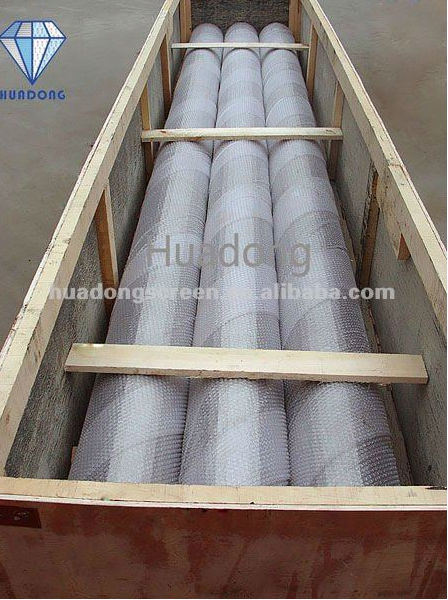

Package:
About Huadong:
Huadong screen Co., Ltd has emerged as the leading screens manufacture in China, such as wedge wire screen, bridge slot screen, perforated casing pipe, slotted casing pipe, spiral pipe, Multilayer Johnson v wire screen with ISO and CE certification and have been 20 years in this field. Our product well recognized by industry professional at home and abroad, base on their products have earned it a reputation in China and found their way into the international markets.
The reason why you choose us:
Professional technology, Completed testing equipment
We have 20 years experience in this field, we go in for technical innovations to improve the quality of products. in recent years, our products not only to be high-quality, safe and reliable, but also of beautiful appearance.
Small profits but quick turnover
Our Scale Production will offer you a lower price, which can help our customer to get more profile without to pay a heavy price.
Perfect After Sale Service10 years' warranty
With a comprehensive after- sale system , and 10 years of Warranty a comprehensive solution to our customers to worry about .Also it is a important reason why so many customer to choose us
More question or interest for , please feel free to contact with us:
