Satin finish SS316L stainless steel welded and seamless pipe
Specifications of stainless steel pipe
| Name | Satin finish SS316L stainless steel welded and seamless pipe | |||||
| Standard | ASTM A554,ASTM A312 | |||||
| Material Grade | 201,202,304,316,316L,430 | |||||
| Main Material | a) 201 (Ni0.8%-1%) b) 202 (Ni: 3.0%-4.0%) c) 304 (Ni: 8% Cr: 18%) d) 316 (Ni: 10% Cr: 18%) | |||||
| Size Range | 139mm-1600mm ETC. | |||||
| Thickness | 0.5-30mm | |||||
| Length | 6m or as customers' request | |||||
| Tolerance | a) Outer Diameter: +/- 0.2mm | |||||
| b) Thickness: +/- 0.02mm | ||||||
| c) Length: +/- 5mm | ||||||
| Surface | 180G, 320G Satin/Hairline 400G, 600G Mirror finish | |||||
| Application | handrail,railing, staircase, weldmesh screen,door,window, balcony,fence,bench,furniture,etc | |||||
| Test | Squash test, extended test, water pressure test, crystal rot test, heat treatment, NDT | |||||
| Chemical Composition of Material | Material Composition | 201 | 202 | 304 | 316L | 430 |
| C | ≤0.15 | ≤0.15 | ≤0.08 | ≤0.035 | ≤0.12 | |
| Si | ≤1.00 | ≤1.00 | ≤1.00 | ≤1.00 | ≤1.00 | |
| Mn | 5.5-7.5 | 7.5-10 | ≤2.00 | ≤2.00 | ≤1.00 | |
| P | ≤0.06 | ≤0.06 | ≤0.045 | ≤0.045 | ≤0.040 | |
| S | ≤0.03 | ≤0.03 | ≤0.030 | ≤0.030 | ≤0.030 | |
| Cr | 13-15 | 14-17 | 18-20 | 16-18 | 16-18 | |
| Ni | 0.7-1.1 | 3.5-4.5 | 8-10.5 | 10-14 | ||
| Mo | 2.0-3.0 | |||||
| Mechanical Property | Material Item | 201 | 202 | 304 | 316 | |
| Tensile Strength | ≥535 | ≥520 | ≥520 | ≥520 | ||
| Yield Strength | ≥245 | ≥205 | ≥205 | ≥205 | ||
| Extension | ≥30% | ≥30% | ≥35% | ≥35% | ||
| Hardness (HV) | <105 | <100 | <90 | <90 |

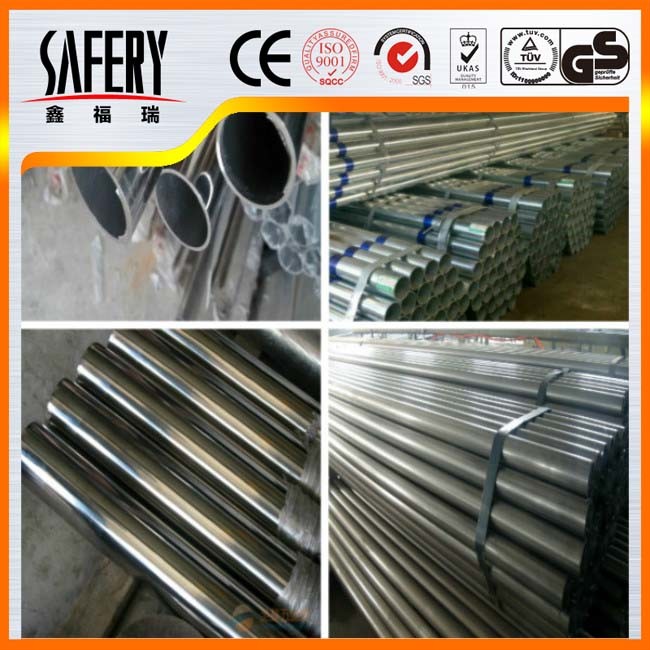

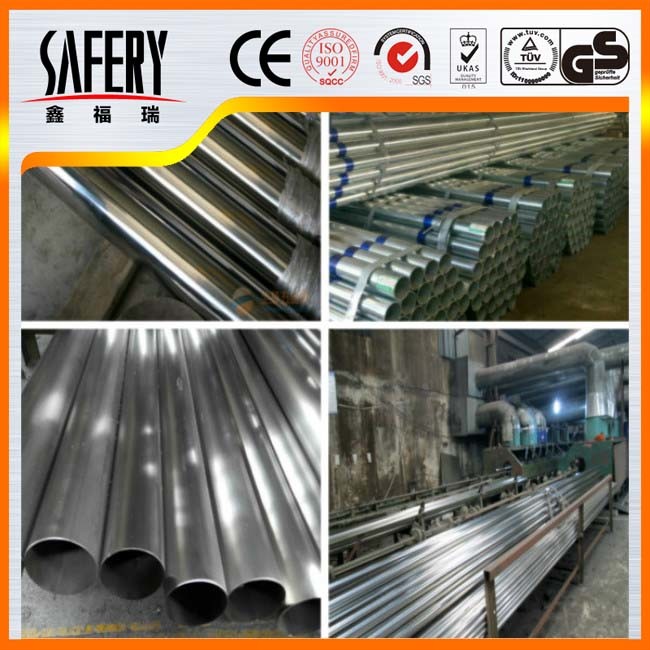

Products Show
Packaging&Shipping
a) Packing: seaworthy wooden pallets,water proof paper,pvc film,interleaving paper, in 20' or 40' container or as per customers' requirements.
b) Delivery: products in stock can be prepare within 3 days after receiving deposit.
Products as your order can be finished within 15 days under 500 tons.
Company Information
Wuxi Xin Fu Rui Metal Material Co., ltd distribution of wholesale stainless steel plate, stainless steel pipe, stainless steel coil, stainless steel bar, stainless steel products best-selling consumer market, enjoys a high status among consumers, the company with several retailers and agents established a long-term, stable relations of cooperation.
FAQ
Q: What kind of work does your company do?
A: Our company is a professional manufacturer.We mainly produces stainless steel sheet, stainless steel coil, stainless steel pipe, stainless steel bars and so on.
Q: How can you assure your quality?
1.We can provide you certificate of quality accordingly.
2.We are willing to accept the third party inspection, such as SGS,BV,CE and so on.
Q: Can you accept customization?
Yes. If you have special requirements on products or packages, we can do customization for you.
Q: Can you accept trail orders?
Gemerally our MOQ is 1 ton. But if you want to place a trail order as the beginning of our cooperation, we can accept smaller quantity at frist. Surely we will have further and longer partnership after the beginning.
Q: Can you provide samples for checking before order?
A: Free samples can be provided as you required. You need only to bear the freight cost.
