SS316L Perforated Stainless Steel Casing Pipe
1. Our perforated pipe uses ASTM A312 or ASTM A409 standard stainless steel casing pipes, with High overall strength, not so easy to deform.
2. The hole is uniform and smooth without burrs.
3. Perforated casing pipe is easy to operate and convenient to use.
4. The hole size and number can be customer designed.
5. The connection types are also customer designed.
API/ISO Casing and tubing material: H40,J55,K55 M65,N80,L80, P110,Q125 etc
API/ISO Casing and tubing size: 2 3/8inch - 20inch
Connection type of API/ISO tubing: EUE,NUE
Connection type of API/ISO casing: STC,LTC,BTC
We also can manufacture other special connection types according to clients' requirement.
Main specifications of base casing pipe:

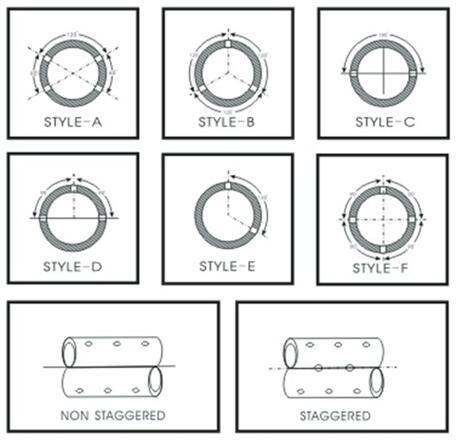

Engineering Drawing of Perforated Tube/Pipe:

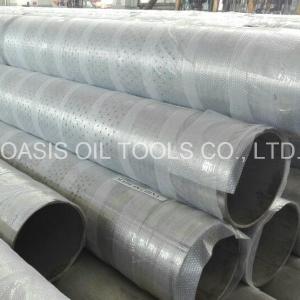

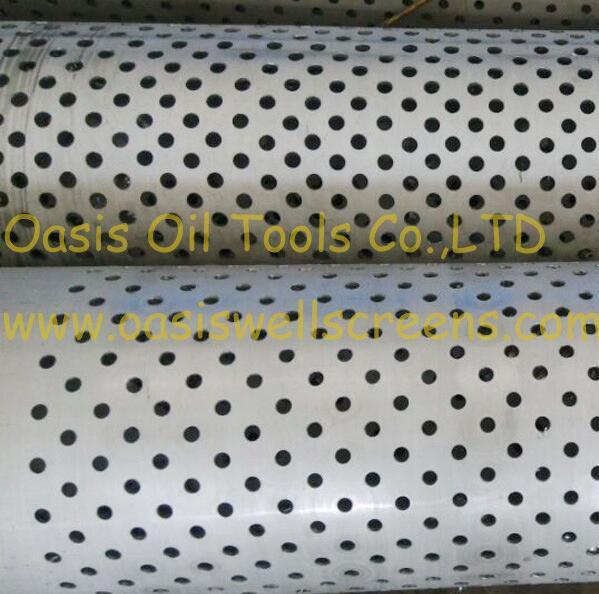

SS316L Perforated Stainless Steel Casing Pipe-finished products
Why choose us OASIS brand products?
1)World Class Quality: OASIS provide our clients with high quality casings and screens and related products. OASIS had passed ISO9001:2008 quality control system.
2)Third party inspection: The productive process of OASIS product is controlled by third party test company such as BV,SGS,etc. or client's representative.
3)Non Standard Screens: We OASIS can supply customer designed and engineered products according to our clients' requirements.
4)Quick Delivery: OASIS can prepare stock for our regular clients to meet clients' requirement at any time.
5)Lower Maintenance of the well: The water can pass freely around coarse particles and enters the well. So low maintenance costs with minimal encrustation or build-up of scale.
6)Environmentally safe: OASIS has signed the file to protect the environment with our local Environmental Protection Administration.
RFQ:
If you are satisfied with our stainless steel perforated casing pipes and willing to know precise price and more information, the following questions is appreciated:
1, What's the material you are going to deal with, stainless steel 304,304l,316 or 316L?
2, What's the OD, length? Diameter from 4-914mm,length from 0.1-12m
3, What's the depth of the well or tensile strength of the casing pipes that you need?
The tensile strength is important for the casings and each casing will be tested before delivery.
4, The connection type that you need? thread or flange?
5, What's the hole size and open area that you need?
Any interest in our stainless steel perforated casing pipe, please do not hesitate to contact Aicha for more information
1. Our perforated pipe uses ASTM A312 or ASTM A409 standard stainless steel casing pipes, with High overall strength, not so easy to deform.
2. The hole is uniform and smooth without burrs.
3. Perforated casing pipe is easy to operate and convenient to use.
4. The hole size and number can be customer designed.
5. The connection types are also customer designed.
API/ISO Casing and tubing material: H40,J55,K55 M65,N80,L80, P110,Q125 etc
API/ISO Casing and tubing size: 2 3/8inch - 20inch
Connection type of API/ISO tubing: EUE,NUE
Connection type of API/ISO casing: STC,LTC,BTC
We also can manufacture other special connection types according to clients' requirement.
Main specifications of base casing pipe:
| Standard | ASTM, GB, JIS, DIN, EN, AISI |
| Material grades | TP304 TP304L TP316 TP316L TP347 TP347H TP321 TP321H TP310 TP310STP410 TP410S TP403 S31803/S32205 S32750 S32760 |
| Outer diameter | 4mm-914.4mm |
| Connection | STC, BTC, LTC, BSP,Flange,ect. |
| Thickness | 0.6mm - 60mm |
| Length | 5.8-6.1 m or as customers' request |
| Surface | Picking and passivated |
| Test | UT, ET, HT, RT, ect, and others according to the standard, or as the requests of the customers |
Engineering Drawing of Perforated Tube/Pipe:
SS316L Perforated Stainless Steel Casing Pipe-finished products
Why choose us OASIS brand products?
1)World Class Quality: OASIS provide our clients with high quality casings and screens and related products. OASIS had passed ISO9001:2008 quality control system.
2)Third party inspection: The productive process of OASIS product is controlled by third party test company such as BV,SGS,etc. or client's representative.
3)Non Standard Screens: We OASIS can supply customer designed and engineered products according to our clients' requirements.
4)Quick Delivery: OASIS can prepare stock for our regular clients to meet clients' requirement at any time.
5)Lower Maintenance of the well: The water can pass freely around coarse particles and enters the well. So low maintenance costs with minimal encrustation or build-up of scale.
6)Environmentally safe: OASIS has signed the file to protect the environment with our local Environmental Protection Administration.
RFQ:
If you are satisfied with our stainless steel perforated casing pipes and willing to know precise price and more information, the following questions is appreciated:
1, What's the material you are going to deal with, stainless steel 304,304l,316 or 316L?
2, What's the OD, length? Diameter from 4-914mm,length from 0.1-12m
3, What's the depth of the well or tensile strength of the casing pipes that you need?
The tensile strength is important for the casings and each casing will be tested before delivery.
4, The connection type that you need? thread or flange?
5, What's the hole size and open area that you need?
Any interest in our stainless steel perforated casing pipe, please do not hesitate to contact Aicha for more information
