Product description of SS304 wedge wire screen/wire wrapped well screen mesh/stainless steel strainer industrial pipe

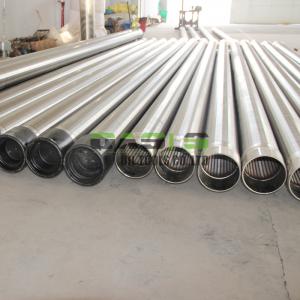

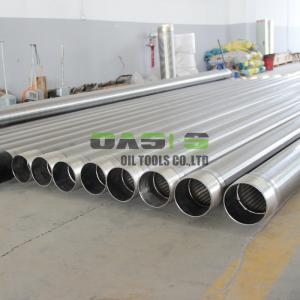

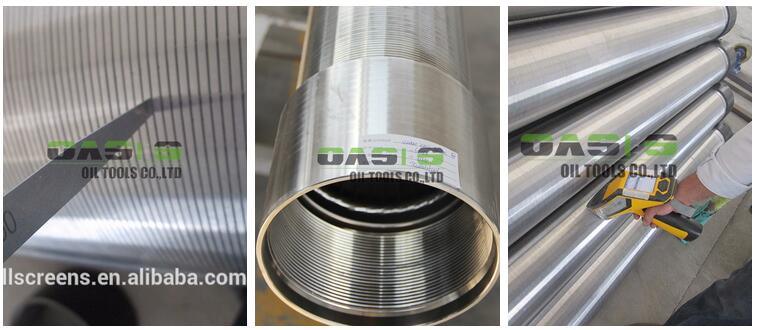

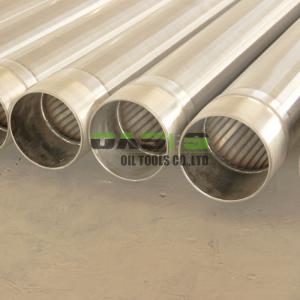

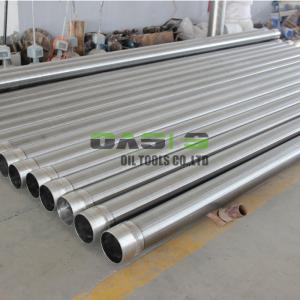

wedge wire screen/wire wrapped well screen mesh/stainless steel strainer industrial pipe is made by winding cold-rolled wire, approximately triangular in cross section, around a circular array of the longitudinal rods. The wire is attached to the rods by welding, producing rigid one-piece units having high strength characteristics at minimum weights.
1. Screens with high open area are more suitable for the construction of high-quality water wells, oil wells and gas wells.
2. Low cost operation Screens with high open area shall favor groundwater infiltration. Abundant water shall reduce the water level's down, thus to save energy consumption.
3. Reduce the abrasion of the pump
4. Extend the life span of wells
Specifications of SS304/304L johnson water well screen/continuous slot wire wrapped screen | |
Material | Galvanized carbon steel(Q325,Q195), stainless steel (201,202,304,304L,316,316L),duplex stainless steel 2205,2209,2507,etc |
Diameter | from 30-1500mm |
Slot Size (mm) | 0.01mm, 0.03mm, 0.10, 0.15, 0.2, 0.25, 0.30-5 or as customers' requirement |
Certificate | SGS, BV, INTERTEK, CE |
Open area | Usually the open area can reach to 60% |
End Connection | welding (beveled end/plain ends ), thread coupling(STC,LTC,BTC), flanges,etc |
Surface treatment | galvanized, painted, polishing, packiled and passivation, finishing, etc. |
Notes | Diameters, wires, rods and slots sizes can be customized |
About we OASIS:
Oasis Oil Tools Co.,LTD, located in the industrial park of high-tech enterprises in Fengquan District, Xinxiang City, covers more than 20000 square meters with total RMB 15 million investment. Oasis now has more than 150 staff, among them 6 persons are senior engineer. After many years' efforts, now OASIS has developed into a professional and famous manufacturer, which design, manufacture and sell
stainless steel and galvanized carbon steel water well screens /johnson screens, oil well screens and sand control well screens, bridge slotted well screens, pipe based well screens, perforated pipe (base pipe), gravel pre-packed well screens, wedge wire screens, passive water intake screens, and other water, oil and gas well filtering products as well as steel tubes and pipes and industrial parts.
Specifications of SS304 wedge wire screen/wire wrapped well screen mesh/stainless steel strainer industrial pipe:
1. Slot size(mm): 0.1~3mm
2. Open area: up to 60%
3. Material: low carbon, low carbon galvanized steel (LCG) steel treated with anticorrosion coating,
stainless steel (304, 316L etc),duplex stainless steel, PVC painted.
4. Unit Length up to 6 meters
5. Diameter: ranging from 30 to 1500mm
6. End connection: plain beveled ends for butt welding or threaded coupling, flanges, sealed
SIZE (inch) | O.D (mm) | SLOT (inch) | LENGTH (m) | Collapse Strength (psi) | Tensile Weight (ton) | Wire size (mm) | RODS (mm) |
4 | 114.3 | 0.040 | 2.9/5.8 | 395 | 6 | 2.2*3.0 | 3.8mm/22 |
4 | 114.3 | 0.040 | 2.9/5.8 | 395 | 6 | 2.3*3.0 | 3.8mm/22 |
6 | 168.3 | 0.040 | 2.9/5.8 | 252 | 8 | 2.3*3.5 | 3.8mm/32 |
8 | 219.1 | 0.010 | 2.9/5.8 | 399 | 10.5 | 3.0*5.0 | 3.8mm/42 |
8 | 219.1 | 0.020 | 2.9/5.8 | 370 | 10.5 | 3.0*5.0 | 3.8mm/42 |
8 | 219.1 | 0.040 | 2.9/5.8 | 323 | 10.5 | 3.0*5.0 | 3.8mm/42 |
10 | 273.1 | 0.010 | 2.9/5.8 | 206 | 11 | 3.0*5.0 | 3.8mm/54 |
10 | 273.1 | 0.020 | 2.9/5.8 | 191 | 11 | 3.0*5.0 | 3.8mm/54 |
10 | 273.1 | 0.040 | 2.9/5.8 | 167 | 11 | 3.0*5.0 | 3.8mm/5 |
Packing&Delivery
Packaging Details: johnson water well screens/continuous slot wire wrapped screens are packed with bubble bag or woven bag; in wooden case or according to the requirement of customers.
Delivery Time:johnson water well screens/continuous slot wire wrapped screens are delivered within 30 days after received your advanced payment.
Certificate of OASIS OIL TOOLS CO.,LTD
We OASIS have approved ISO 9001:2008 quality management system since the year 2012.
We are also the audited supplier of made-in-china and approved by SGS.
Our machines have patent certificates to supply OEM service for our clients.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-10 days if the goods are in stock. or it is 7-30 days if the goods are not in stock, it is according to the real specification and quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=10,000.00 USD, 100% in advance. Payment>=10,000.00USD, 30% T/T in advance ,balance after inspection and before shipment.
B. L/C are also acceptable
Any enquiry and question about our wedge wire screen/wire wrapped well screen mesh/stainless steel strainer industrial pipe, contact us for more details. Be ready to reply your enquiry promptly and timely.Welcome to visit our factory, we can pick you up at any time.
