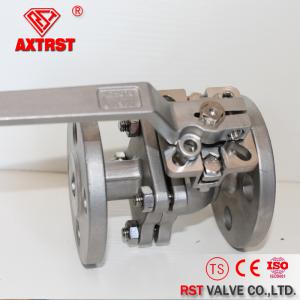

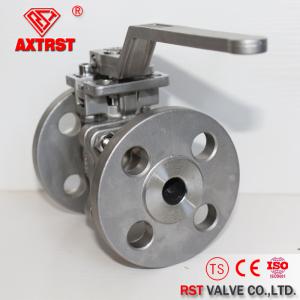

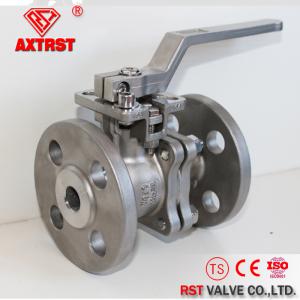

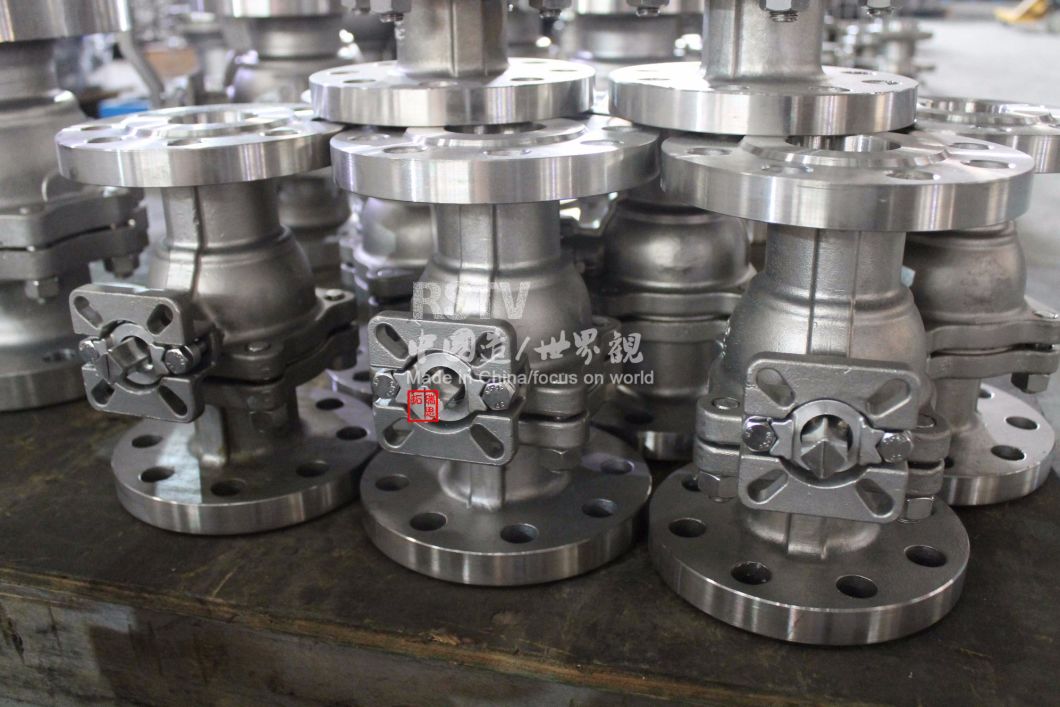

2PC Flanged Stainless Steel Ball Valve with Direct Mounting Pad

PRIMARY PARAMETERS

Model NO.

RST

Type

Floating Ball Valve

Function

on-off Valve

Temperature

Normal Temperature

Application

Industrial Usage, Water Industrial Usage, Household Usage

Size

1/2u2032u2032-10u2032u2032(Dn15-250)

Working Pressure

150lb-600lb

Connection Ends

Flange ( RF, Rtj)

Type of Port

Full Port/Reduce Port

Warranty

18 Months

MOQ

10PCS

Delivery Time

15~20 Days

Certificate

ISO9001 & Ce

Option

OEM

Origin of Country

China

Trademark

RST

Transport Package

Standard Plywood Case

Specification

ISO9001 & CE

Origin

Wenzhou, China

HS Code

8481804090

DETAIL DESCRIPTION

2PC Stainless Steel Full Port Floating API6D Flange Ball Valve with ISO5211 Mounting Pad(CF8/CF8M/WCB) 150LB~600LB

Valve Floating Ball Valve With the rapid development of science and technology, production technology and continuous improvement of product structure, quickly developed into one of the main valve. The ball is widely used in long-distance pipeline, oil refining, power, paper, chemical, pharmaceutical, steel, municipal, water and other industries, the oil pipeline in the area plays an important role. The main characteristics of valve seal itself reliable, compact, easy maintenance, simple structure, with the spherical sealing surface often in closed state, the media can not easily be eroded, easy operation and maintenance for natural gas, solvents, water, acid and other general working medium.

RST VALVE is one of the professional Ball Valve Manufacturer in China. We supplies: Floating ball valve, trunnion ball valve, metal seated ball valve, threaded end ball valve, butt welded ball valve, Forged steel ball valve etc, We can manufacture and supply ball valve according to your requirements Main material of the products are A105, WCB, C5, WC6, WC9, CF8, CF8M, 316 and so on. Tops Valve design by the standards of API6D, ASME, ANSI, JIS, DIN, BS, GB, etc.

Specification:

Product Name	2 Piece API Floating Full Port Stainless Steel Flanged Ball Valve
1. Material	SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M), WCB, etc.
2. Size	1/2~8 inch ( DN15~DN200)
3. Thread standard	ISO9001 & CE, TS
4. Port	Full Port
5. Working Pressure	150LB~1500LB
6. Connection Ends	Flange
7. Working Temp.	-20~300ºC, or according to customer requirements for different industry.
8. Suitable Medium	Water, Natural Gas, Oil and some corrosive liquid
9. Operated	Handle operated, Locking device is option
10. Inspection & Testing	According to API598
Shipment
Delivery Time	15~20 Days
Package	Standard Exporting Plywood Case
Shipping Port	Ningbo/Shanghai, China
Shipping Terms	EXW, FOB, CFR, CIF, etc.
Payment Terms	T/T, Western Union, PayPal, etc.
	30% prepayment, 70% balance paid before shipping or against copy of BL
Country of Origin	Wenzhou city, China
Production Capacity	6000 ton/year
MOQ	10 PCS/size

Technical Specification:

Design & Manufacture standard: API 6D, API 608, BS 5351.
Pressure & Temperature standard: ASME B16.34.
Face to face dimension standard: ASME B16.10.
Flange standard: ASME B16.5, ASME B16.47.
Test & Inspect standard: API 598, API 6D.

Product Feature:

Floating ball, full bore or reduce bore.

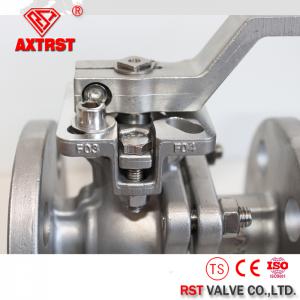

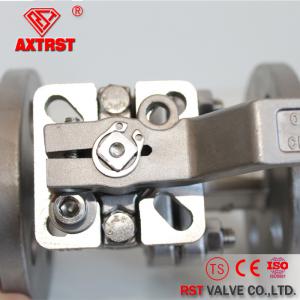

ISO5211 mounting pad for option.
Blow-out proof stem design.
PTFE/RPTFE seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. Condition).
Fire-proof and anti-static design if need.
Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.

Competitive Advantage:

ISO9001 & CE CERTIFIED
GOOD QUALITY
RESONABLE PRICE
ON-TIME DELIVERY
STRICT EXAMINATION
SINCERE SERVICE
DURABLE IN USE

Material List:

Item No	Part Name	Material
1	Nut	SS304
2	Stud	SS304
3	Cap	CF8M/CF8/ WCB
4	Body Gasket	PTFE/RPTFE
5	Seat	PTFE/RPTFE
6	Ball	SS316/SS304
7	Body	CF8M/CF8/ WCB
8	Thrust Washer	PTFE
9	Stem Packing	PTFE
10	Stem	SS316/SS304
11	Stop Cap	SS304
12	Bolt	SS304
13	Locking Pin	SS304
14	Locking Nut	SS304
15	Handle	Plastic
16	Stop Washer	SS304

Applications:

Chemical Industry
Petro-chemical Industry
Plant Construction
Power Plant Engineer
Paper & Pump Industry
Mining
Gas Utilities
Environment Technologies
Steam Generation
Drink water
Sewage water industry

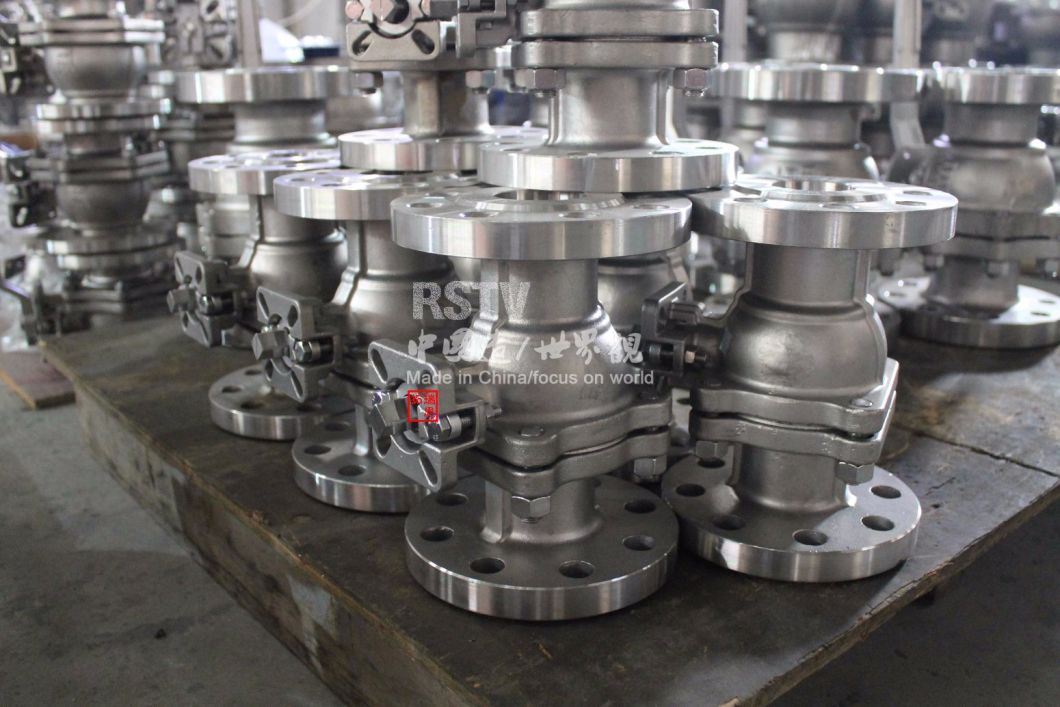

Products Shows:
