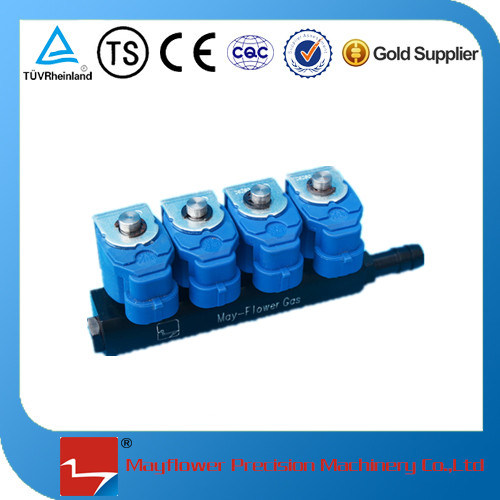

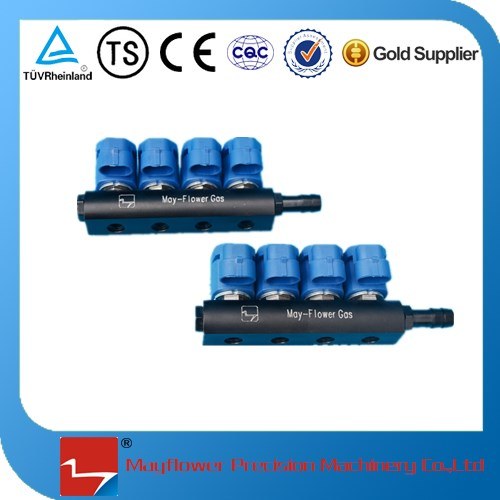

Electromagnetic valve for CNG car
Specification
1.Working Pressure:0-0.2mpa
2.work voltage:12V
3.Temperature Range:-40°C~+120°C
4.speed :>0.3mus
5.impedance:3Ω
6.Medium:CNG,LNG

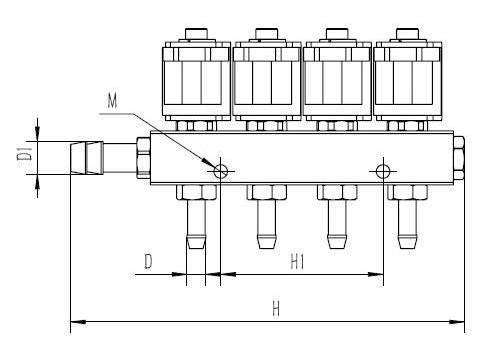

| Type | size(mm) | ||||
| H | H1 | D | D1 | M | |
| MF150DC06 | 145 | 60 | 7 | 12 | 2-M8 |
| material | body | valve core | sealing | ||
| LY12 | T9 | NBR |
Quality certification & invention patent

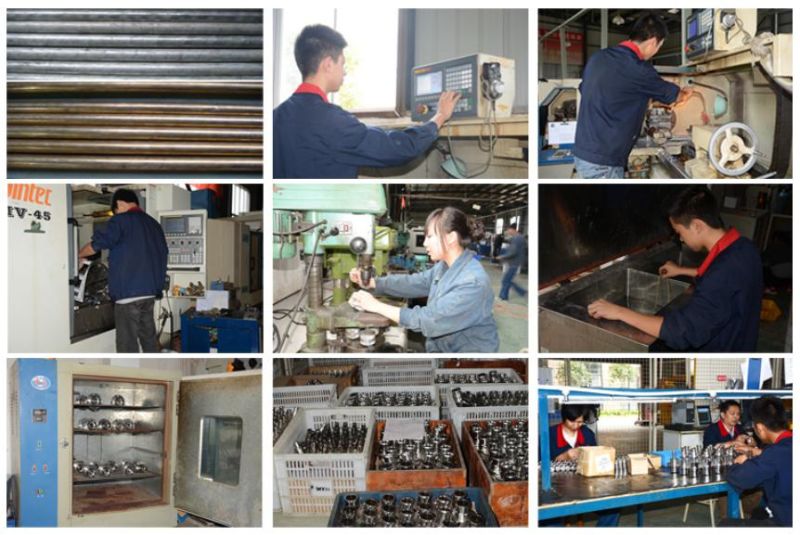

Production Process

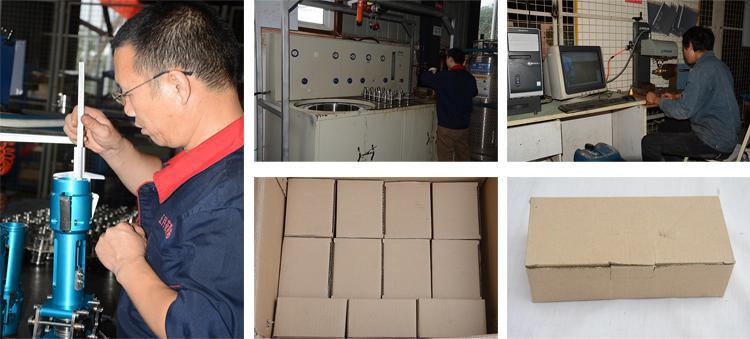

Product testing and packing
Our company advantages
(1) we can produce all of kinds of cryogenic valve for LNG vehicle gas cylinder and undertake OEM orders
according to your mechanical drawing or sample.
(2) The advanced experiment equipment, detecting instruments and measuring instruments effectively guarantee the quality of our products.
(3) Rich experence :We are a valve professional manufacturer more than many years,our products had good reputation with customers from inland and foreign.
(4) Good service:we provide the perfect pre-sales and after sale service and answer any question of customers
(5) Low price:you will find low price from our company,same valve ,same quality
(6) Best quality: we have strict quality control from producing to delivery and have strong technology support
QA/QC Introduction
The quality inspection include Material test and Products inspection.Material test include:chemical composition test,physical property test(tensile test)Routine Products Inspection:Appearance Inspection,Thread Inspection,Gas-tight testCasual inspection:Safety device(burst disc) burst test,valve body falling weight test,bonfire test.
