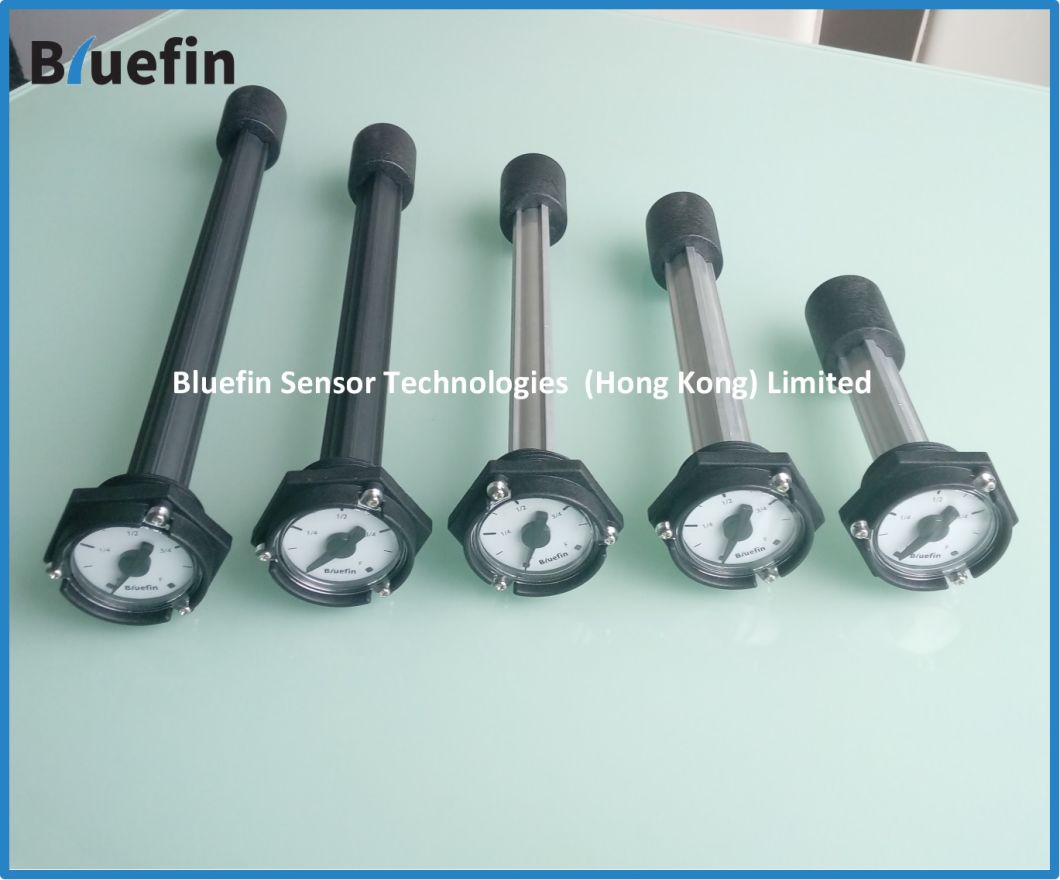

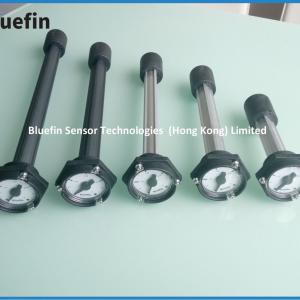

spiral content gauge, mechanical gauge, MG, fuel level gauge
Features & applications:
- fuel tanks & water tanks
- does not require power for operation
- cap + sensor + gauge 3-in-1 solution
Key innovations & improvements
Specification
Features & applications:
- fuel tanks & water tanks
- does not require power for operation
- cap + sensor + gauge 3-in-1 solution
Key innovations & improvements

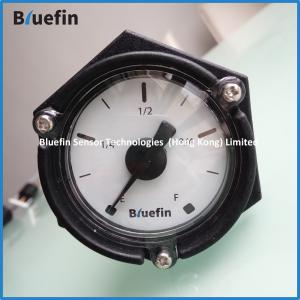

- Fully sealed and isolated housing of head unit, which prevent from being contaminated by fuel at faceplate; can work to both stationary & mobile working conditions.
- With much higher reliability; strong & robust extrusion aluminum main body to overcome the rail deformation problems of old design.
Specification
| BMG-150mm | Range of length: 150~600mm Accuracy of display: 5% Raw material: Nylon head + Aluminum Extrusion main body Thread type: BSP 1&1/2" Types of flange: 6-hole flange (Aluminum) or welding flange (stainless steel) Max. torque of installation: 300~400N.m Operating temperature: -40~85°C |
| BMG-200mm | |
| BMG-225mm | |
| BMG-250mm | |
| BMG-275mm | |
| BMG-300mm | |
| BMG-350mm | |
| BMG-400mm | |
| BMG-450mm | |
| BMG-500mm | |
| BMG-550mm | |
| BMG-600mm |
Remark: The length of the sensor can be customized.

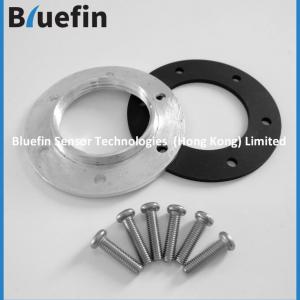

Flange option 1: 6-hole flange pack
Flange option 2: welding flange pack
The other level sensing solutions
Flange option 1: 6-hole flange pack
Flange option 2: welding flange pack
The other level sensing solutions
Facilities
Compact & fully-integrated workshops:
--tube making
--tube forming & machining
--PCBA assembling including wave-soldering
--assembly and functional tests
--leaking tests
Compact & fully-integrated workshops:
--tube making
--tube forming & machining
--PCBA assembling including wave-soldering
--assembly and functional tests
--leaking tests
Factory is certified to TS-16949; also certified by European Truck OE'.
