Light Weight, small structure, low price double color (bi-color) glass tubular level gauge
China manufacture, China supplier of level measuring instruments, flow meters China products-Tianjin U-ideal Instrument Co., Ltd

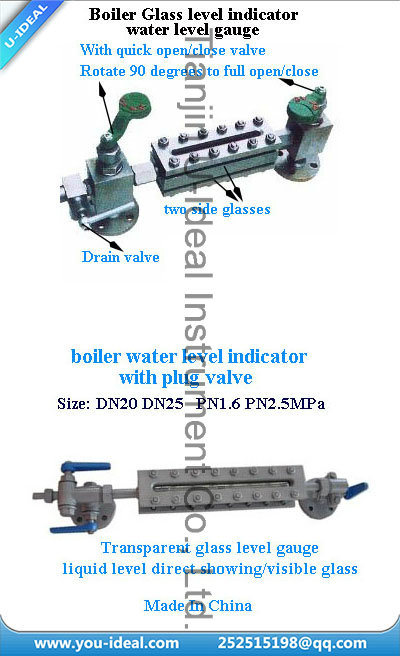

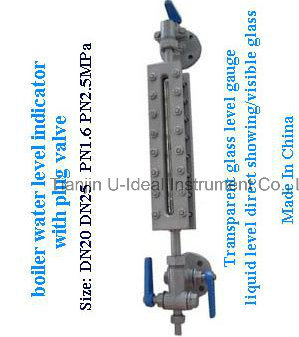

We produce and trade in various level gauges ------boiler water glass level indicator/ Bi-color Sight glass level gauges/water current meter

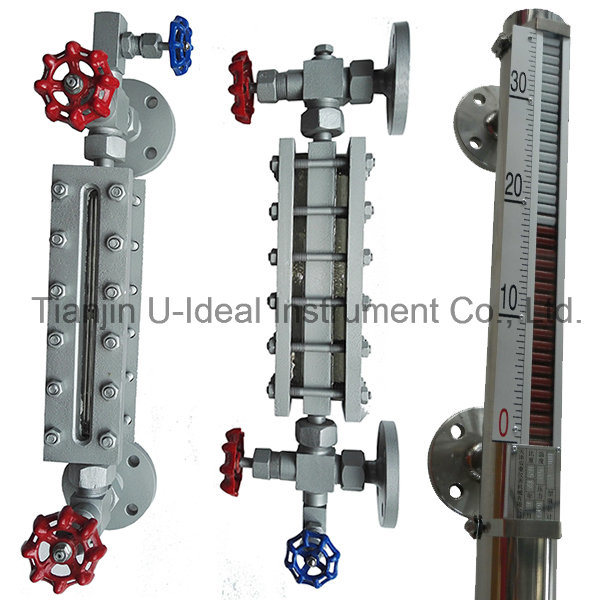

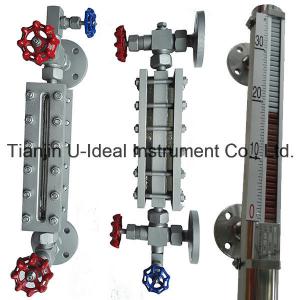

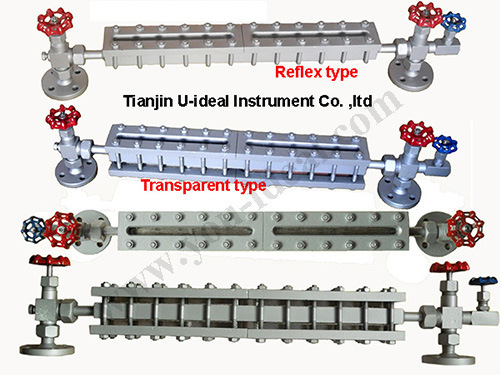

Transparent Flat Glass Level Gauge
Reflex Flat Glass Level Gauge
Defrost type
Weld Pad Flat Glass Level Gauge
Visual level indicator tube bypass

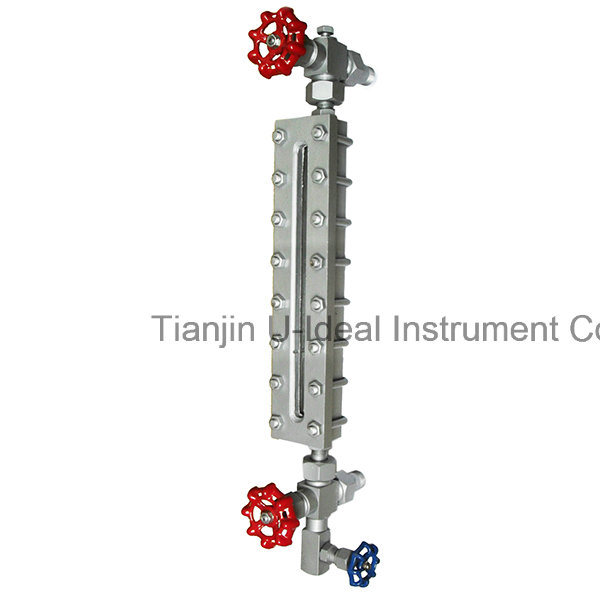

Transparent Tubular Level Gauge
With drain valve and 1/4 opening and closing valve water level gauge
Material:
Carbon steel; 1Cr18Ti9Ti; AISI316 corrosive fluid; Other material on order.
Choices:
High temperature; High pressure; Defrost level Gauge; Reflex Level Indicator; Transparent; Boiler flat type; Single color or bi-color; Sight glass Back light type and electric thermal type glass level gauge.
General introduction
TBS glass plate liquid level gauges are level measuring instrument. Upper and lower needle switches and indicating equipments are their main components. Fluid flows via switch into the indicating equipment, then the liquid level will display clearly viewed through the range of effective light transmission. And on that basis, we have developed double color glass sheet liquid level gauges, defrost glass sheet liquid level gauges and steam thermal glass sheet liquid level meters to adapt to different places and different conditions.
About sight glass plates's glass quality, only borosilicate glass is used. The connection to the process is generally made with valve heads with single or double isolation. Drain valves enable the sight glass indicator to be emptied and are fitted to the lower flange face. If necessary, a vent valve can be fitted at the top.
1, TBS-A type transparent liquid level gauges
1) Measure range: 500~1700mm
2) Working temperature: ≤ 250
3) Working pressure: ≤ 4MPa
4) Meter material: Qualitative carbon steel or 1Cr18Ni9Ti
5) Transmit color: Nature color

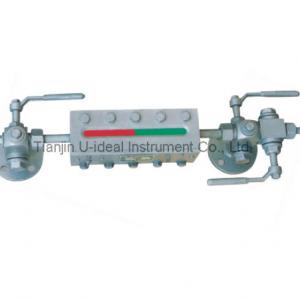

2, TBS-B type double color glass sheet liquid level gauges
1) Measure range: 330~440mm
2) Working temperature: ≤ 250
3) Working pressure: ≤ 4MPa
4) Meter material: Qualitative
Carbon steel or 1Cr18Ni9Ti
5) Transmit color: Nature color
3, TBS-C type defrost glass sheet liquid level gauges
1) Measure ranges: 300~2000mm
2) Work temperature: -40~60
3) Working pressure: ≤ 4MPa
4) Needle switch close
Automatically pressure: ≥ 0.2MPa
5) Defrost pin height: 100mm, 150mm, 200mm, the lower the temperature the higher the pin.
6) Flange material: Qualitative carbon steel or 1Cr18Ni9Ti
4, TBS-F type reflective glass sheet liquid level gauges
1) Measure ranges: 300~2000mm
2) Work temperature: 0~250
3) Working pressure: ≤ 4MPa
4) Needle switch close automatically pressure: ≥ 0.2MPa
5) steam insulating sheath pressure: ≤ 0.6MPa
6) flange material: Qualitative carbon steel or 1Cr18Ni9Ti
5, TBS-S type windows glass sheet liquid level gauge
1) Light transmission size: 18× 304mm
2) Working pressure: ≤ 1.0Mpa
3) Working temperature: ≤ 250
4) Jointing size: 80× 366mm
5) meter face material: Qualitative carbon steel or 1Cr18Ni9Ti
