Tubine Flow Meter of Electronic Fuel flowmeter
Specifications:
- high accuracy
- less maintainence
- long battery duration
- Inlet: 1" 5-50GPM(18.9-190LPM)
- Inlet: 1-1/2" 10-100GPM(38.0-380LPM)
- Inlet: 2" 20-200GPM(76-760LPM)

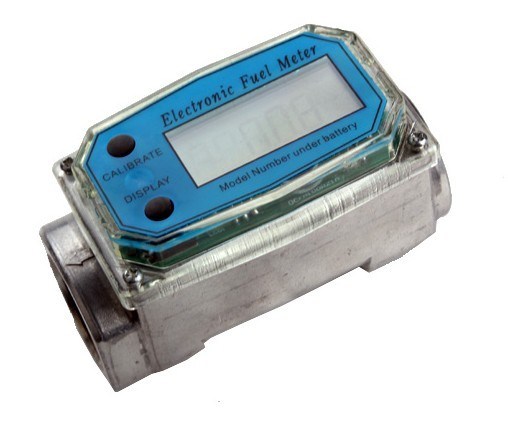

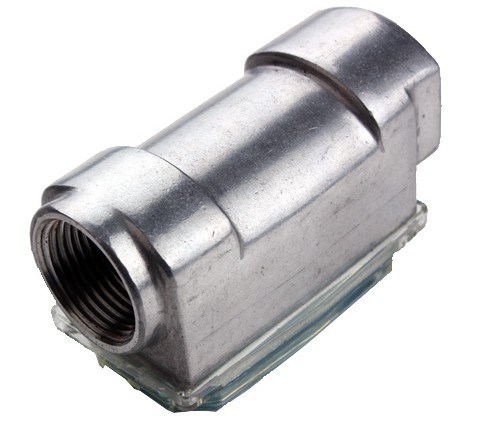

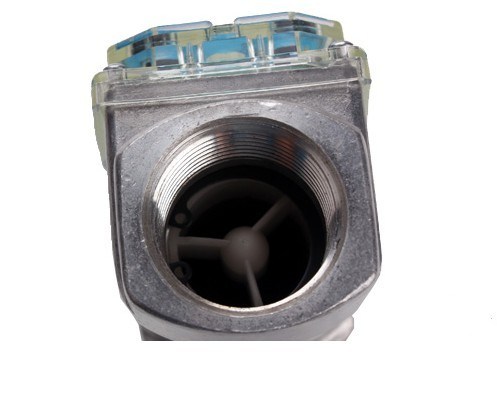

Pictures:
| Model | Electronic Fuel flow meter | |
| Inlet&Outlet | BSPT/NPT 3/4' 1' 1.5' | |
| Flow Range | 3/4' | 2-20GPM (7.6-75.7LPM) |
| 1' | 5-50GPM (18.9-190LPM) | |
| 1.5' | 10-100GPM (38.0-380LPM) | |
| Accuracy | 3/4' | ± 1.5% |
| 1' | ± 1.5% | |
| 1.5' | ± 1.0% | |
| Repeatablity | ± 0.1% | |
| Pressure | 300PSI/21Bar | |
| Material | Body | Aluminum |
| Bearings | Ceramics | |
| Shaft | Tungsten Carbide | |
| Rotor | PVDF | |
| Tempreture | -40 ° F to + 250 ° F ( -40 ° C to + 121 ° C ) |
