Uses:

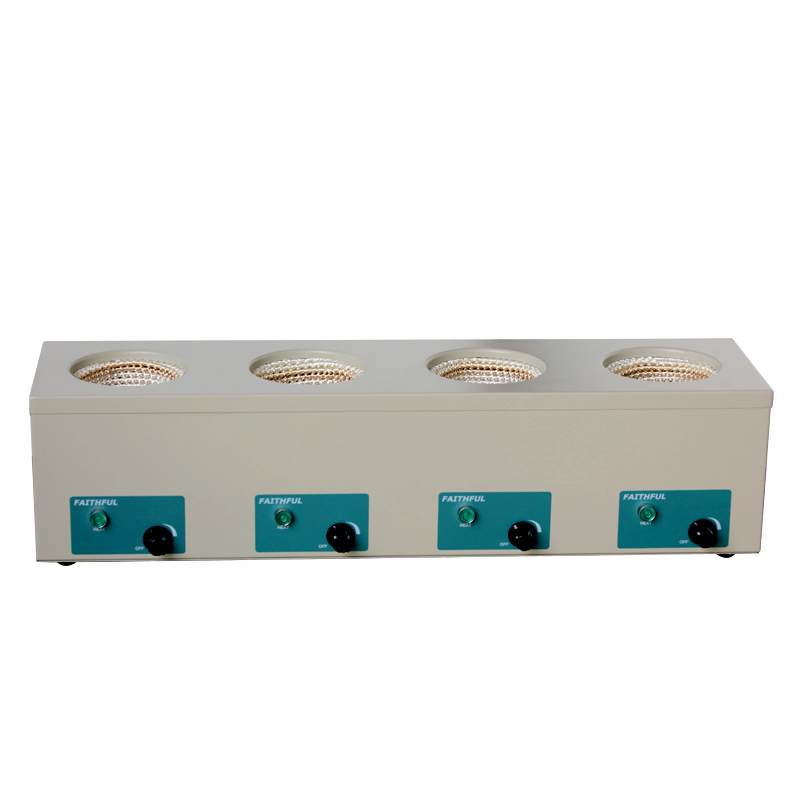

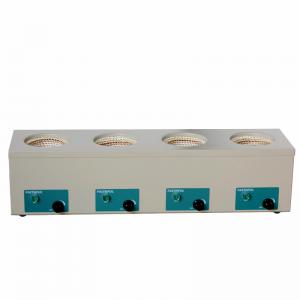

98-IV-B Heating Mantle applies to colleges, petrochemical industries, medicine, and environment protection institutions for liquid heating.
Characteristics:
1. Cold rolling sheet stretching and spraying exterior.
2. Electronic temperature regulation mode with characteristics of stepless speed adjustment, uniform temperature, fast heating-up, and safety and durability.
3. Featured by anti-corrosion, age-resistant, durable and safe.
4. Several Rows type, produce as Customer inquiry, beautifully shaped, easy to operate and effective.
98-IV-B Heating Mantle applies to colleges, petrochemical industries, medicine, and environment protection institutions for liquid heating.
Characteristics:
1. Cold rolling sheet stretching and spraying exterior.
2. Electronic temperature regulation mode with characteristics of stepless speed adjustment, uniform temperature, fast heating-up, and safety and durability.
3. Featured by anti-corrosion, age-resistant, durable and safe.
4. Several Rows type, produce as Customer inquiry, beautifully shaped, easy to operate and effective.
| Model | Rows | Capacity (ml) | Max use Temp(c) | Power (KW) | Working time | Exterior Size (mm) | Packing Size (mm) | N. W. (Kg) | G. W. (Kg) |
| 98-IV-B | Two Rows | 100 | 450 | 100× 2 | Coutinuous | 280× 140× 106 | 320× 180× 190 | 4 | 5 |
| 250 | 150× 2 | 320× 160× 170 | 360× 190× 200 | 4 | 5 | ||||
| 500 | 250× 2 | 360× 180× 180 | 400× 220× 210 | 4 | 5 | ||||
| 1000 | 350× 2 | 420× 210× 200 | 460× 250× 230 | 7 | 8 | ||||
| 98-IV-B | Four Rows | 100 | 100× 4` | 530× 140× 160 | 570× 180× 190 | 8 | 10 | ||
| 250 | 150× 4` | 610× 140× 106 | 650× 190× 200 | 8 | 10 | ||||
| 500 | 250× 4` | 690× 180× 180 | 730× 220× 210 | 8 | 10 | ||||
| 1000 | 350× 4` | 810× 210× 200 | 850× 250× 230 | 14 | 16 | ||||
| 98-IV-B | Six Rows | 100 | 100× 6` | 820× 140× 160 | 860× 180× 190 | 12 | 15 | ||
| 250 | 150× 4` | 940× 160× 170 | 980× 190× 200 | 12 | 15 | ||||
| 500 | 250× 4` | 1060× 180× 180 | 1100× 220× 210 | 12 | 15 | ||||
| 1000 | 350× 4` | 1240× 210× 200 | 1280× 250× 230 | 21 | 24 |
