Quick Details
Place of Origin: Shanghai, China (Mainland)
Brand Name: JP
Model Number: PHZY-1.6/5/16
Power: Electronic
Usage: Balancing Machine
Output Power: 0.23KW DC
Length: 800mm
Width: 700mm
Height: 1400mm
Gross Weight: 200kg
Number of Packing: 1pcs
Delivery time: Within 25 days
Power Supply: 220V or Custom
Site: www.jp-balancer.com
Item: Wind turbine rotor balance testing machines
Packaging & Delivery
Packaging Details: Fumigated Wood Box
Delivery Detail: Within 25 days after confirming the order
Specifications
Wind turbine rotor balance testing machines
Auto-positioning bed, 17 inch LCD screen, large tool carriage structure
Dedicated br
Package and transport
Production Description

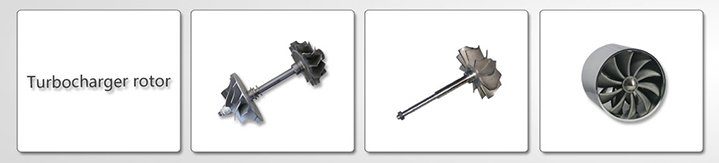

? Widely used in balancing turbocharger, turbocharger impellers, turbocharger compressors, turbocharger turbines etc.

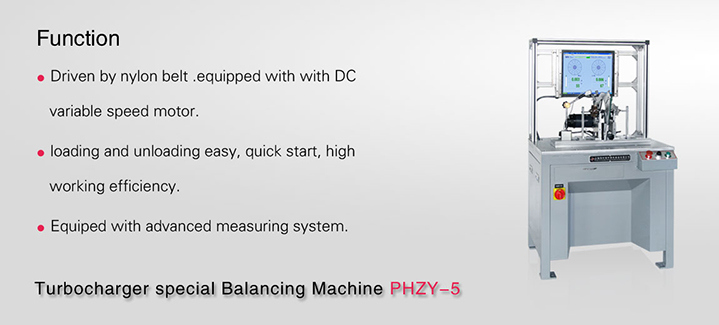

? Auto-positioning bed, 17#LCD screen, large tool carriage structure
? Dedicated bracket, driven by Nylon belt, variable speed motor 230W
Delivery inspection
Range of Application
This balancing machine is widely used in balancing rotatable bodies, such as kinds of small-sized motors rotors, impeller, fans, crankshaft, turbocharger, water pump, roller, grinding wheel, main shaft of machine tool, textile machinery, tool, spindle, etc...Driven by Nylon belt, equipped with Variable speed motor to drive. Which ensures high quality balancing and precision. Quick booting, easy operation. And high efficiency.
Certificates
| Technical data at a glance | PHZY-1.6/5/16 |
| Maximum weight of workpiece(kg) | 1.6/5/16 |
| Maximum diameter of workpiece(mm) | 300 |
| The distance between two bearing pedestals (mm) | 25-480 |
| Journal diameter on roller carriages(mm) | 3-40 |
| Belt driving diameter(mm) | 15-150 |
| Rotation speed when the diameter of operating transmission is 100mm(r/min) | ~1470 |
| Motor power (kw) | 0.23DC |
| Minimum achievable residual unbalance (emar) | <=0.3g.mm/kg |
