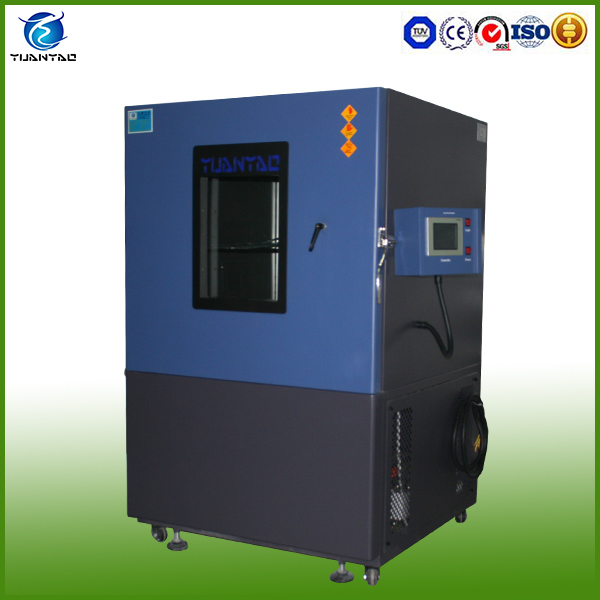

Temperature Control IP test Dust System Instruments
Model: YSDT-1000-F
Sand Dust Test Chamber is applied to test the performance of electronic electrical products,
automotive, motorcycle parts, seal the pieces in the sand and dust environment of using, storage,
transportation.
Technical Specifications:
1. Equipped with a large viewing glass window
2. Operating easy, maintenance quickly
3. Excellent performance
Main features of the equipment:
1. Use electronic sensor and humidity displayed in the control panel directly.
2. Provides a ready-made solution to common tests for automotive and electronic.

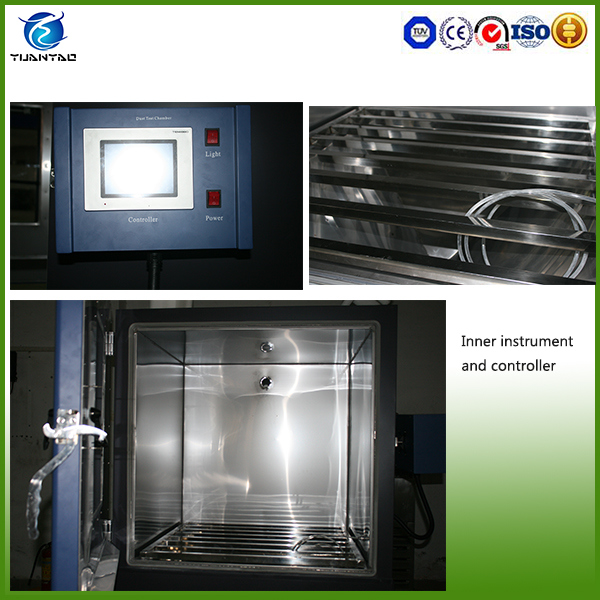

3. Adopt large viewing glass can let operator see the specimen clearly.
4. Imported high grade stainless steel inner tank (SUS304) mirror panels.
5. Equipment containing dust vertical circulation of air, dust can be reused for testing.
6. Device equipped with a vacuum system to meet the needs test.
7. Customization service is available and buyer's ideas are warmly welcomed.
Test standards:
Comply with China's national defense industry standard GJB150.12 and major international test
standards for different foreign markets, such as: IEC-529 (shell protection grade - IP code), GB4208-
93, and DIN40050.
Package: Well packed in wooden cases, suitable for long distance shipments.
Production leadtime: 30 days after receipt of T/T down payment or L/C.
In addition to Sand Dust Test Chamber, we are also manufacturing:
Precision Oven Tester, Triple Type Temp. & Humidity Chamber, Temp. & Humidity Control Host, Air
Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test
Room, Temp. Humidity & Vibration Combined Test Chamber, Aging Oven Tester, Rain / Spray Test
Chamber, Burn-in test equipment, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester
and so on.
Other styles / size with different configurations are available upon request. Welcome to enquire and purchase! Thanks your time !
If you have any query, please feel free to conact Vickey Huang for consulting.
I would be happy to answer you. Thanks.
Your sincerely,
Vickey Huang
Model: YSDT-1000-F
Sand Dust Test Chamber is applied to test the performance of electronic electrical products,
automotive, motorcycle parts, seal the pieces in the sand and dust environment of using, storage,
transportation.
Technical Specifications:
1. Equipped with a large viewing glass window
2. Operating easy, maintenance quickly
3. Excellent performance
Main features of the equipment:
1. Use electronic sensor and humidity displayed in the control panel directly.
2. Provides a ready-made solution to common tests for automotive and electronic.
3. Adopt large viewing glass can let operator see the specimen clearly.
4. Imported high grade stainless steel inner tank (SUS304) mirror panels.
5. Equipment containing dust vertical circulation of air, dust can be reused for testing.
6. Device equipped with a vacuum system to meet the needs test.
7. Customization service is available and buyer's ideas are warmly welcomed.
Test standards:
Comply with China's national defense industry standard GJB150.12 and major international test
standards for different foreign markets, such as: IEC-529 (shell protection grade - IP code), GB4208-
93, and DIN40050.
Package: Well packed in wooden cases, suitable for long distance shipments.
Production leadtime: 30 days after receipt of T/T down payment or L/C.
In addition to Sand Dust Test Chamber, we are also manufacturing:
Precision Oven Tester, Triple Type Temp. & Humidity Chamber, Temp. & Humidity Control Host, Air
Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test
Room, Temp. Humidity & Vibration Combined Test Chamber, Aging Oven Tester, Rain / Spray Test
Chamber, Burn-in test equipment, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester
and so on.
Other styles / size with different configurations are available upon request. Welcome to enquire and purchase! Thanks your time !
| Model | YSDT-1000-F | YSDT-1000-C(IEC-529) | |||
| Internal Dim.W×H×D(mm) | 1000×1000×1000 | 1000×1000×1000 | |||
| External Dim.W×H×D(mm) | 1350×1950×1350 | 1350×1950×1350 | |||
| Testing Type | F1 | F2 | F3 | IEC60529 | |
| C1 | C2 | ||||
| Concentration of dust(mg/m3) | Above 60000 | Above 3000 | Above 100 | Above 5000 | Above 100 |
| Testing Temp. | 20°C±15°C | ||||
| Huimidi.Range | 45%RH~85%RH | ||||
| Flow rate of dust(m/s) | No Limited | 5m/s | 10m/s | ||
| Testing Time | Swirl time | 5S or other | NO | ||
| Rest time | 15min or other | ||||
| Total time | 5H | 8H | 8H | 2H | 6H |
| Material | Exterior | SUS#304+Powder Coated | |||
| Interior | SUS#304 | ||||
| Other Components | Chamber lamp,Wiper,Casters with adjusters | ||||
| Power Source(K.W.) | AC 1Ψ 220V 60/50Hz 4KW |
